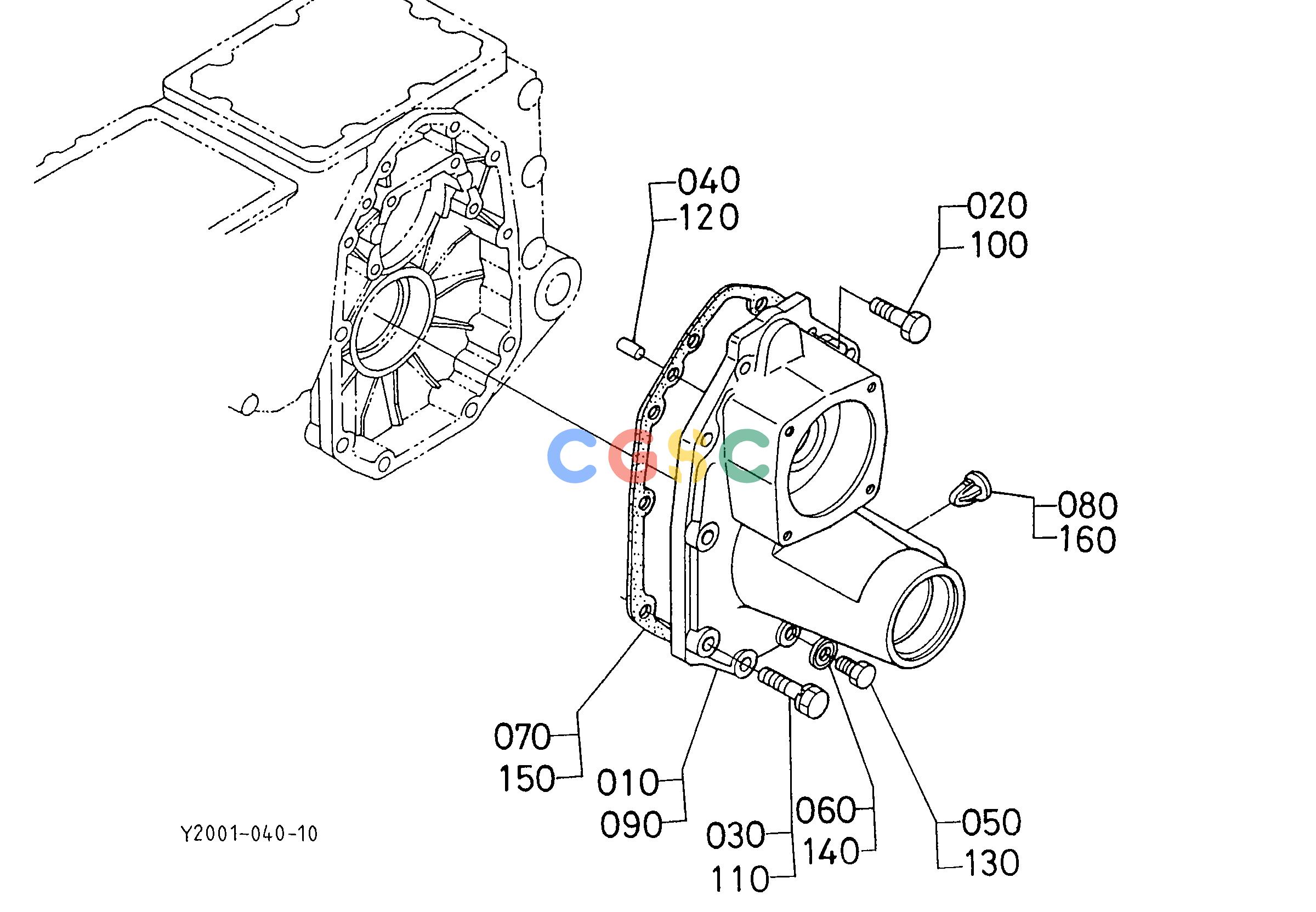

久保田零件查询T07000 REAR AXLE CASE REAR AXLE/REAR WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
945 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6740112613
|
[1] |
CASE AXLE LH
|
19.1400(lbs); 8.700
|
| 020. |
0112351035
|
[4] |
BOLT
|
0.0550(lbs); 0.025
|
| 030. |
0112351250
|
[6] |
BOLT
|
0.1210(lbs); 0.055
|
| 040. |
0501200816
|
[2] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 050. |
0633135012
|
[1] |
PLUG
|
0.0528(lbs); 0.024
|
| 060. |
0471701200
|
[1] |
WASHER WITH RUBBER
|
0.0044(lbs); 0.002
|
| 070. |
6659111240
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 080. |
6721111140
|
[6] |
PLUG BLIND
|
0.0022(lbs); 0.001
|
| 090. |
6740112710
|
[1] |
CASE AXLE RH
|
22.0000(lbs); 10.000
|
| 100. |
0112351035
|
[4] |
BOLT
|
0.0550(lbs); 0.025
|
| 110. |
0112351250
|
[6] |
BOLT
|
0.1210(lbs); 0.055
|
| 120. |
0501200816
|
[2] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 130. |
0633135012
|
[1] |
PLUG
|
0.0528(lbs); 0.024
|
| 140. |
0471701200
|
[1] |
WASHER WITH RUBBER
|
0.0044(lbs); 0.002
|
| 150. |
6659111240
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 160. |
6721111140
|
[6] |
PLUG BLIND
|
0.0022(lbs); 0.001
|
