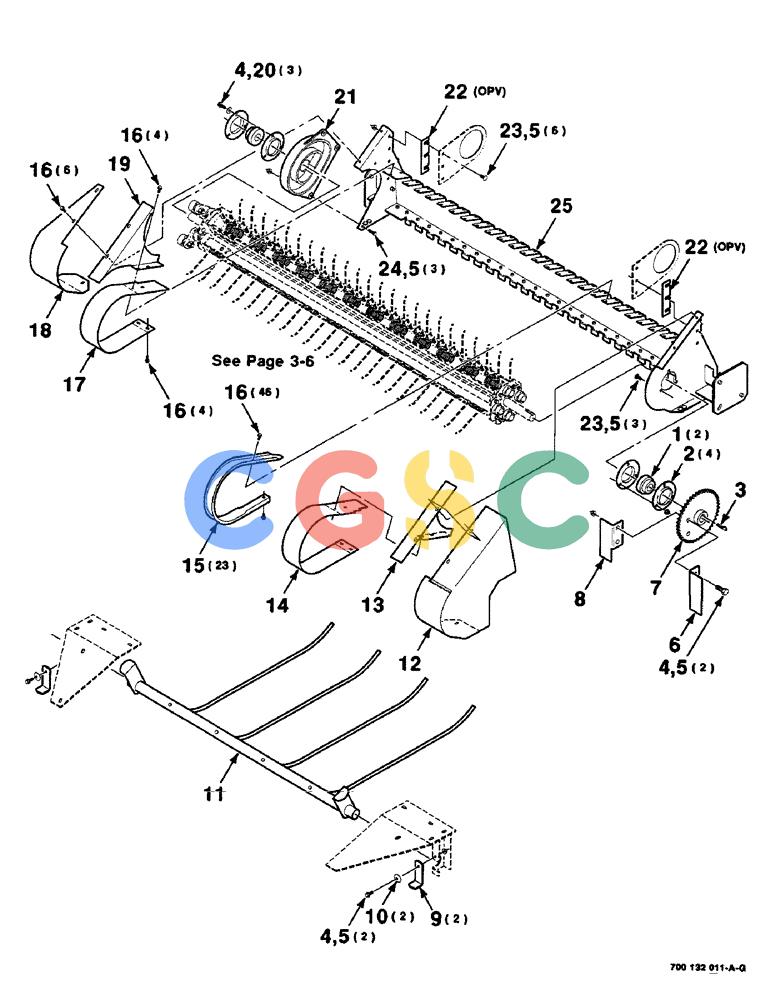

凯斯零件查询(8435) - CASE IH SILAGE SPECIAL ROUND BALER (1/97-12/00) (3-02) - PICKUP AND SUPPORT ASSEMBLIES, SERIAL NUMBER CFH0124001 THROUGH CFH0124137 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
980 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700708091
|
[2] |
SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm
|
CAS
BEARING - spherical Superseded by part number: 47577188, 47066
|
| 2. |
617863R1
|
[4] |
FLANGED BEARING
|
IH
|
| 3. |
Q3929
|
[1] |
KEY,Gib, 5/16" Sq x 1 1/2"
|
IH
5/16 X 1-1/2 GIB KEY
|
| 4. |
121-226
|
[7] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 5. |
232-5316
|
[16] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 6. |
700132130
|
[1] |
SLINGER
|
HFI
- outer
|
| 7. |
700132129
|
[1] |
SPROCKET ASSY.
|
HFI
SPROCKET WA - 50B43 tooth Superseded by part number: 700159598
|
| 8. |
700132131
|
[1] |
SLINGER
|
HFI
- inner
|
| 9. |
700132132
|
[2] |
RETAINER
|
HFI
|
| 10. |
7845357
|
[2] |
WASHER
|
CAS
- spring
|
| 11. |
700132123
|
[1] |
GUARD
|
HFI
WINDGUARD WA Superseded by part number: 700153610
|
| 12. |
700147508
|
[1] |
SHIELD
|
HFI
WA - left
|
| 13. |
700147509
|
[1] |
SHIELD
|
HFI
- left
|
| 14. |
700132114
|
[1] |
SUPPORT
|
HFI
WRAPPER - end, left
|
| 15. |
700132112
|
[23] |
WRAPPER
|
HFI
- tine
|
| 16. |
121-115
|
[60] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 17. |
700132115
|
[1] |
SUPPORT
|
HFI
WRAPPER - end, right
|
| 18. |
700132122
|
[1] |
SHIELD
|
HFI
- right
|
| 19. |
700132117
|
[1] |
SHIELD
|
HFI
- right
|
| 20. |
496-81010
|
[3] |
WASHER
|
CAS
3/8 HARDENED WIDE PLAIN WASHER Superseded by part number: 86625244
|
| 21. |
700116125
|
[1] |
HOUSING
|
CAS
CAMTRACK
|
| 22. |
700132128
|
[2] |
SHIM
|
HFI
|
| 23. |
434-616
|
[9] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 24. |
413-620
|
[3] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
C Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 72187207, 88011
|
| 25. |
700132089
|
[1] |
FRAME
|
HFI
WA - pickup
|
