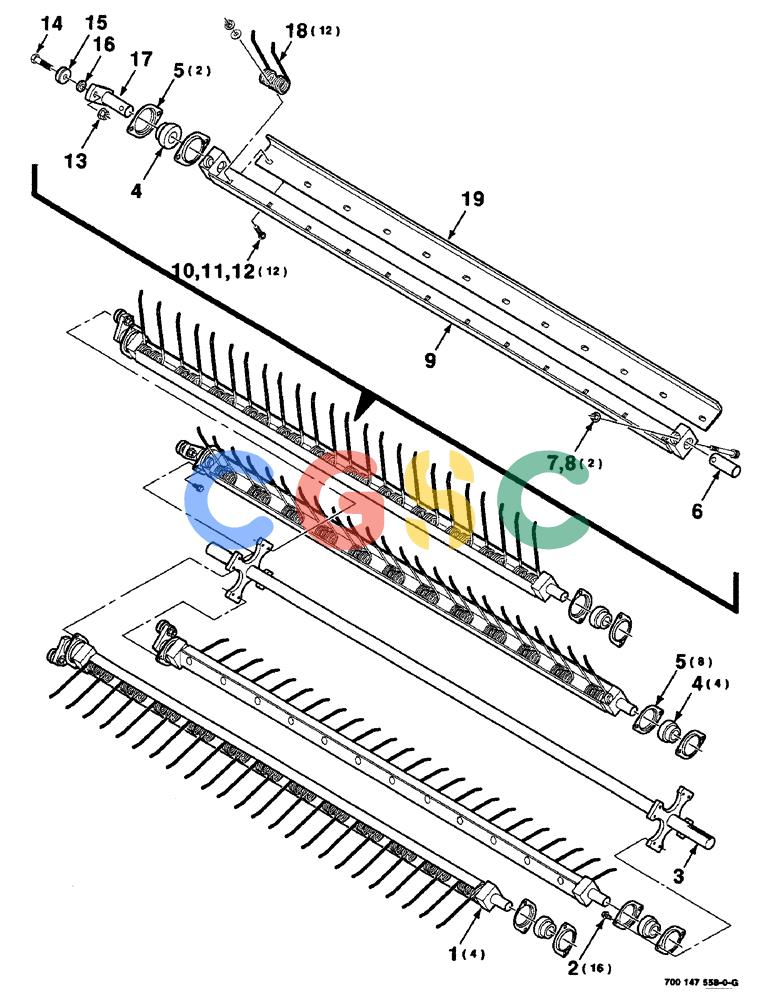

凯斯零件查询(8435) - CASE IH SILAGE SPECIAL ROUND BALER (1/97-12/00) (3-08) - PICKUP ROTOR ASSEMBLY, SERIAL NUMBER CFH0124401 AND LATER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
926 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700147559
|
[4] |
ANGLE
|
HFI
ASSEMBLY
|
| 2. |
409-7612
|
[16] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 3. |
700135834
|
[1] |
ROTOR
|
HFI
WA
|
| 4. |
700708095
|
[5] |
SPHERICAL BEARING
|
CAS
BEARING - spherical Superseded by part number: 47577195, 45876
|
| 5. |
581469R1
|
[10] |
FLANGE,Bearing
|
IH
- bearing
|
| 6. |
700147564
|
[1] |
SHAFT
|
HFI
- left
|
| 7. |
61-736
|
[2] |
HEX SOC SCREW,7/16"-14 x 2 1/4"
|
CAS
7/16-14 X 2-1/4 HSHCS SPL Superseded by part number: NH280993
|
| 8. |
704452
|
[2] |
SPRING
|
CAS
7/16-14 HFTLN GR/G Superseded by part number: 51200183, 51200183, 86629502
|
| 9. |
700147560
|
[1] |
ANGLE
|
HFI
WA - tine
|
| 10. |
433-620
|
[12] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5 Superseded by part number: 86508773
|
| 11. |
496-11041
|
[12] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 12. |
232-5316
|
[12] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 13. |
700707867
|
[1] |
NUT
|
CAS
1/2-20 HFTLN GR/G Superseded by part number: 87033645
|
| 14. |
428-832
|
[1] |
BOLT,Hex, 1/2" - 20 x 2", Gr 8
|
CAS
1/2-20 X 2 C GR8 Superseded by part number: 87779103, 280564
|
| 15. |
700720050
|
[1] |
CAM FOLLOWER
|
CAS
BEARING - cam follower
|
| 16. |
700137750
|
[1] |
SPACER
|
CAS
|
| 17. |
700135875
|
[1] |
CRANK
|
HFI
WA
|
| 18. |
700714826
|
[12] |
TORSION SPRING,Coiled, 2 Prong, 177mm L
|
L
- double Superseded by part number: 47518554
|
| 19. |
700147565
|
[1] |
ANGLE
|
HFI
|
