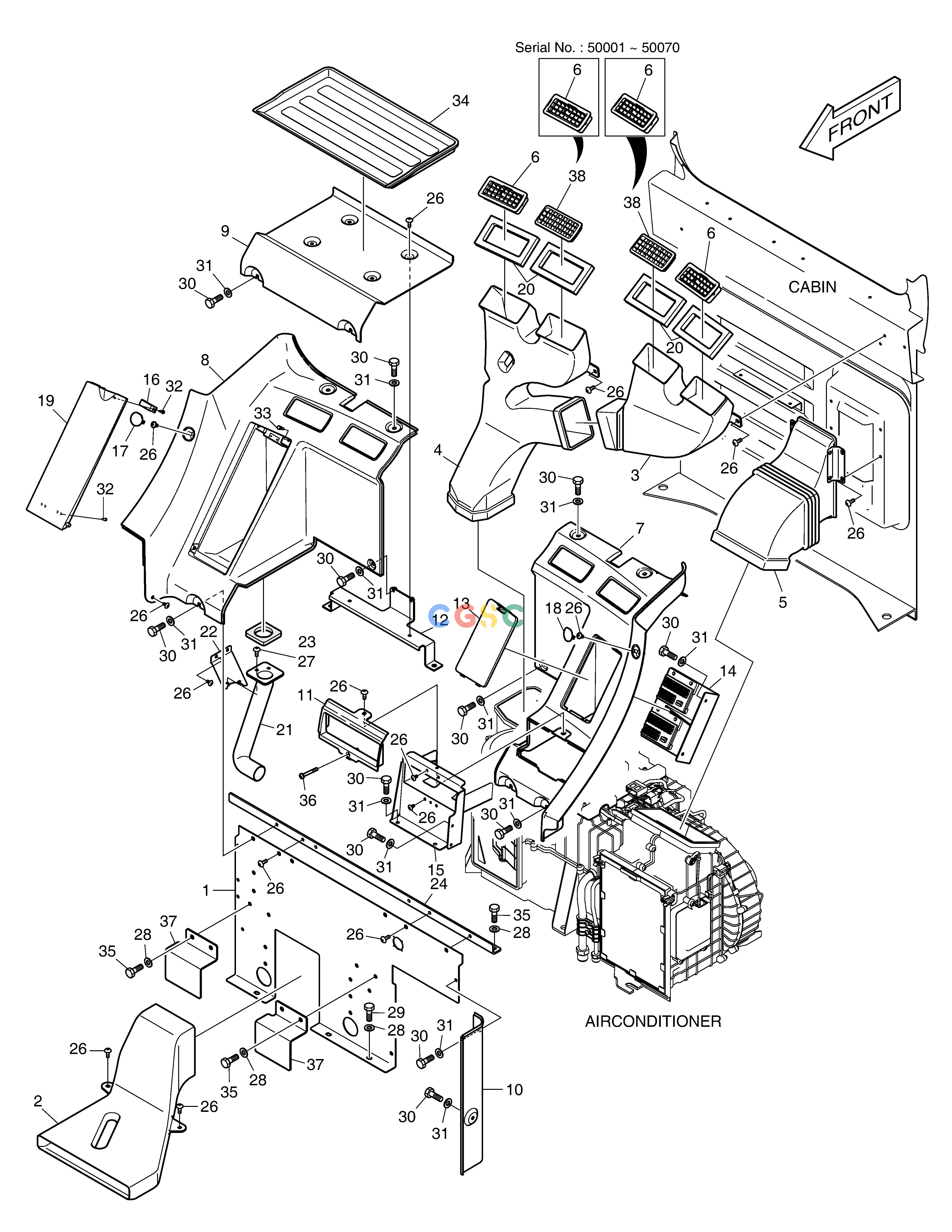

斗山零件查询HEATER COVER DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
276 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-02896K
|
[-] |
HEATER COVER
|
|
| 1. |
621-02894E
|
[1] |
COVER;REAR LOWER
|
|
| 10. |
621-02907B
|
[1] |
COVER;SIDE REAR (L.H.)
|
|
| 11. |
621-02917C
|
[1] |
COVER;STEREO UP
|
|
| 12. |
K1001295A
|
[1] |
PLATE
|
K1001295B
|
| 12. |
K1001295B
|
[1] |
PLATE
|
|
| 13. |
621-02919B
|
[1] |
COVER;FUSE
|
|
| 14. |
195-02771B
|
[1] |
BRACKET;FUSE BOX
|
195-02771C
|
| 14. |
195-02771C
|
[1] |
BRACKET;FUSE BOX
|
|
| 15. |
195-02772E
|
[1] |
BRACKET;STEREO
|
195-02772G
|
| 15. |
195-02772G
|
[1] |
BRACKET;STEREO
|
|
| 16. |
2125-1095A
|
[1] |
CATCH
|
|
| 17. |
K1005344A
|
[1] |
COVER
|
|
| 18. |
K1005345A
|
[1] |
COVER;HOLE
|
|
| 19. |
621-02920C
|
[1] |
COVER;BOX
|
|
| 2. |
213-00036B
|
[1] |
DUCT;FOOT
|
|
| 20. |
K1001310
|
[4] |
FOAM
|
|
| 21. |
213-00040A
|
[1] |
DUCT;AIR BOX
|
|
| 22. |
195-02774
|
[1] |
BRACKET;AIR DUCT MOUNT
|
195-02774A
|
| 22. |
195-02774A
|
[1] |
BRACKET,AIR DUCT MOUNT
|
|
| 23. |
161-00622
|
[1] |
FOAM;AIR SEAL
|
|
| 24. |
195-02785C
|
[1] |
BRACKET;CROSS BAR
|
195-02785E
|
| 24. |
195-02785E
|
[1] |
BRACKET,CROSS BAR
|
|
| 26. |
2120-2166D10
|
[19] |
SCREW
|
|
| 27. |
2120-2166D53
|
[2] |
. SCREW
|
|
| 28. |
2114-1898D14
|
[9] |
WASHER
|
|
| 29. |
2120-2166D12
|
[3] |
BOLT
|
|
| 3. |
213-00037B
|
[1] |
DUCT;REAR (L.H.)
|
|
| 30. |
2120-2166D36
|
[19] |
BOLT
|
|
| 31. |
2114-1898D5
|
[19] |
WASHER
|
|
| 32. |
S3644163
|
[8] |
SCREW
|
|
| 33. |
K1002385
|
[2] |
STOPPER
|
|
| 34. |
161-00624
|
[1] |
PAD;FOAM
|
|
| 35. |
2120-2166D5
|
[6] |
BOLT
|
|
| 36. |
2120-2166D58
|
[1] |
BOLT
|
|
| 37. |
K1017271
|
[2] |
PLATE
|
|
| 38. |
K1043726
|
[2] |
NOZZLE;REAR
|
|
| 4. |
213-00038B
|
[1] |
DUCT;REAR (R.H.)
|
|
| 5. |
213-00039B
|
[1] |
DUCT;AIR INLET
|
|
| 6. |
415-00043B
|
[4] |
NOZZLE;REAR
|
|
| 6. |
415-00043B
|
[2] |
NOZZLE;REAR
|
|
| 7. |
621-02913C
|
[1] |
COVER;REAR (L.H.)
|
|
| 8. |
621-02914C
|
[1] |
COVER;REAR (R.H.)
|
|
| 9. |
621-02915B
|
[1] |
COVER;REAR CENTER
|
|
