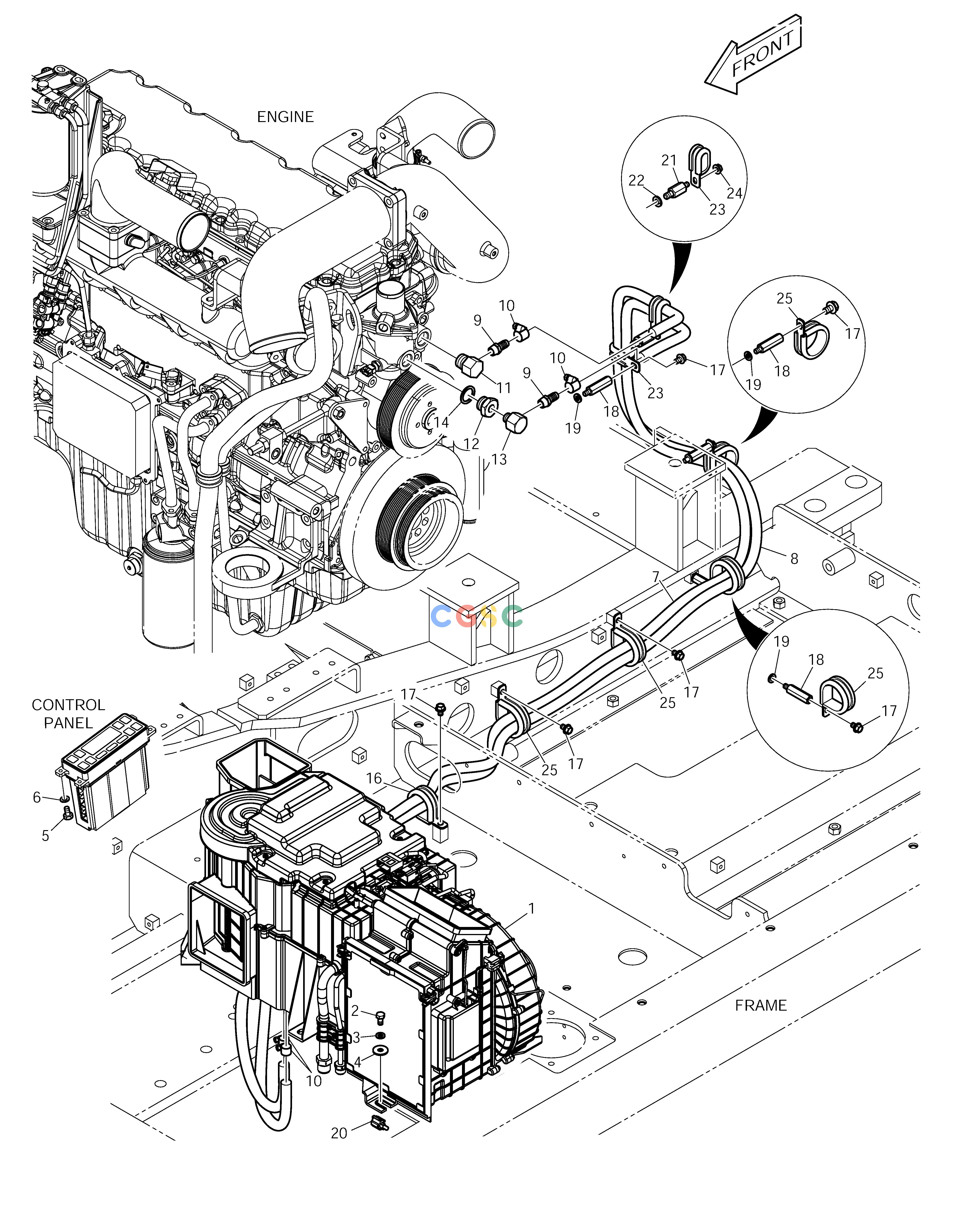

斗山零件查询HEATER PIPING DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
627 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1027237C
|
[-] |
|
|
| 1. |
920-00127A
|
[1] |
AIRCON UNIT
|
|
| 10. |
S8450016
|
[4] |
. CLAMP
|
|
| 11. |
2181-1159
|
[1] |
ADAPTER
|
|
| 12. |
K1033714
|
[1] |
REDUCER
|
|
| 13. |
2181-1161A
|
[1] |
ADAPTER
|
|
| 14. |
S8180411
|
[1] |
SEAL;COPPER
|
|
| 16. |
124-00208D7
|
[1] |
CLIP
|
|
| 17. |
K1001029
|
[6] |
BOLT
|
|
| 18. |
2120-2187
|
[3] |
BOLT
|
|
| 19. |
S5102503
|
[3] |
. WASHER
|
|
| 2. |
S0508653
|
[6] |
BOLT
|
|
| 20. |
547-00024A
|
[1] |
SENSOR
|
|
| 21. |
DS0014011
|
[1] |
BOLT;STUD
|
|
| 22. |
S5102603
|
[1] |
. WASHER
|
|
| 23. |
124-00209D1
|
[2] |
CLIP
|
|
| 24. |
2121-1305
|
[1] |
NUT
|
|
| 25. |
124-00208D11
|
[4] |
CLIP
|
|
| 3. |
S5102503
|
[6] |
. WASHER
|
|
| 4. |
2114-1058D29
|
[6] |
WASHER
|
|
| 5. |
S3450833
|
[4] |
BOLT
|
|
| 6. |
S5000213
|
[4] |
. WASHER
|
|
| 7. |
2185-1308D7
|
[1] |
HOSE;RUBBER
|
|
| 8. |
2185-1308D7
|
[1] |
HOSE;RUBBER
|
|
| 9. |
2181-2774
|
[2] |
NIPPLE;HOSE
|
|
