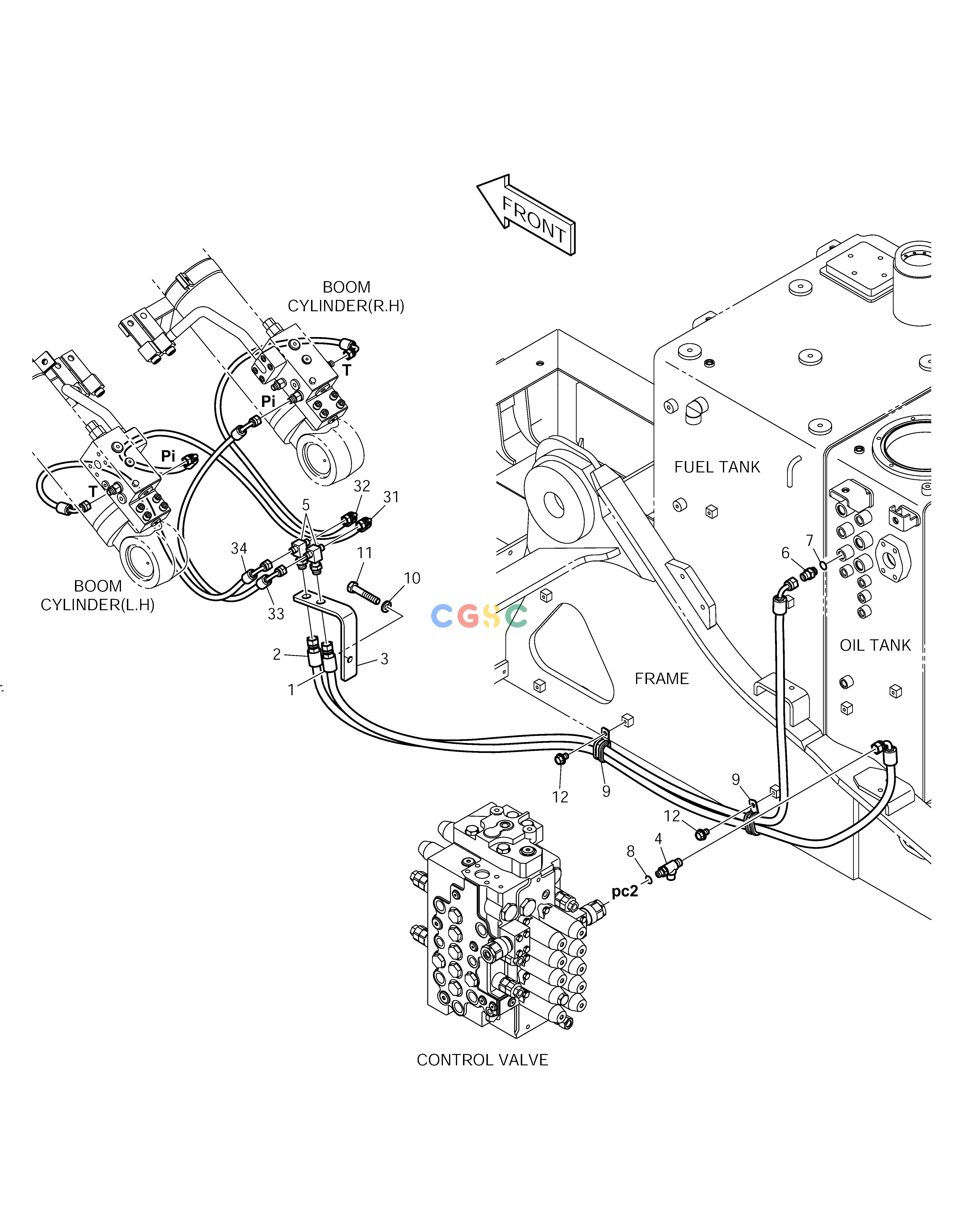

斗山零件查询LOCK VALVE PIPING - BOOM DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
197 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1017471A
|
[-] |
LOCK VALVE PIPING;BOOM
|
|
| 1. |
DS2093042
|
[1] |
HOSE
|
|
| 10. |
S5102703
|
[1] |
WASHER
|
|
| 11. |
S0561166
|
[1] |
BOLT
|
|
| 12. |
120-00276
|
[2] |
BOLT M8X1.25X12
|
|
| 2. |
DS2093136
|
[1] |
HOSE
|
|
| 3. |
K1024204
|
[1] |
BRACKET
|
|
| 31. |
DS2091082
|
[1] |
HOSE
|
|
| 32. |
DS2091083
|
[1] |
HOSE
|
|
| 33. |
DS2091082
|
[1] |
HOSE
|
|
| 34. |
DS2091083
|
[1] |
HOSE
|
|
| 4. |
2181-2375D7
|
[1] |
TEE
|
|
| 5. |
181-00008
|
[2] |
TEE
|
|
| 6. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 7. |
S8000141
|
[1] |
O-RING
|
|
| 8. |
S8000111
|
[1] |
O-RING
|
|
| 9. |
124-00209D1
|
[2] |
CLIP
|
|
