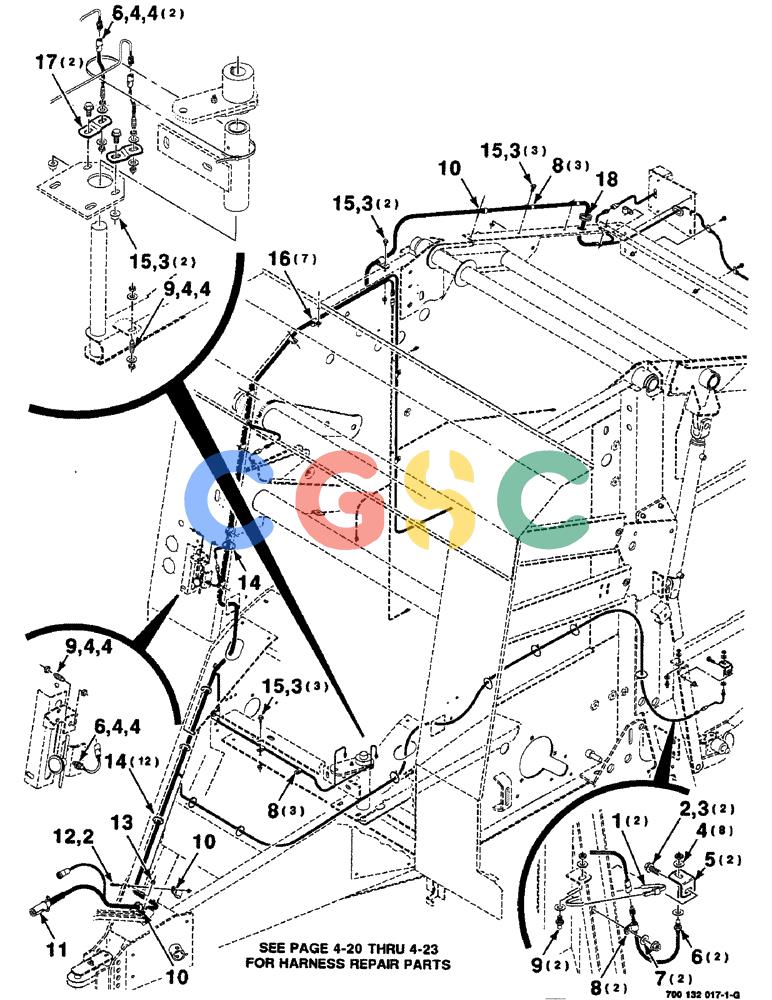

凯斯零件查询(8435) - CASE IH SILAGE SPECIAL ROUND BALER (1/97-12/00) (4-02) - ELECTRICAL ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
471 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
306132C1
|
[2] |
CABLE TIE,14.5" L
|
IH
TIE - cable 14 in Superseded by part number: 435437A1
|
| 2. |
232-5316
|
[3] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 4. |
700710190
|
[18] |
WASHER
|
CAS
- stainless steel
|
| 5. |
700132393
|
[2] |
ANGLE
|
HFI
|
| 6. |
700119161
|
[5] |
SWITCH
|
L
SENSOR "A"
|
| 7. |
496-11041
|
[2] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 8. |
515-25127
|
[8] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Superseded by part number: 86632595
|
| 9. |
700710211
|
[4] |
ACTUATOR
|
IH
|
| 10. |
515-23190
|
[3] |
CLAMP,3/4", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 86624005
|
| 11. |
700714939
|
[1] |
HARNESS
|
CAS
- baler
|
| 12. |
121-237
|
[1] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
3/8-16 X 1-1/4 HFS GR8 Superseded by part number: 87327172
|
| 13. |
232-5315
|
[1] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 14. |
L18337
|
[13] |
CABLE TIE,9.95"-12.1" lg
|
CAS
STRAP - tie, 15 inch, nylon Superseded by part number: 529070
|
| 15. |
409-7612
|
[10] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 16. |
515-23254
|
[7] |
CLAMP,1", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 9827902, 72187281
|
| 17. |
700132461
|
[2] |
BRACKET
|
HFI
|
| 18. |
700707095
|
[1] |
GROMMET
|
CAS
|
