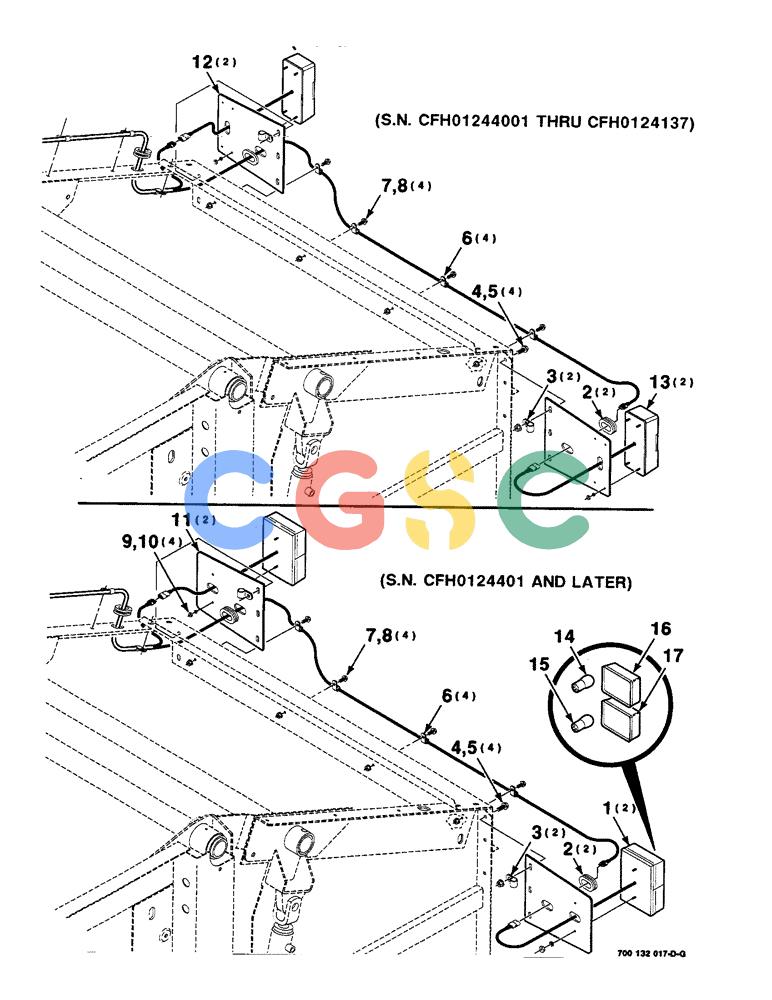

凯斯零件查询(8435) - CASE IH SILAGE SPECIAL ROUND BALER (1/97-12/00) (4-04) - ELECTRICAL ASSEMBLY (CONTINUED) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
956 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700716461
|
[2] |
TAIL LAMP
|
CAS
LIGHT - combination (includes items 14, 15, 16 & 17)
|
| 2. |
700707095
|
[4] |
GROMMET
|
CAS
|
| 3. |
515-25127
|
[4] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Superseded by part number: 86632595
|
| 4. |
121-226
|
[8] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 5. |
232-5316
|
[8] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 6. |
515-2395
|
[8] |
CLAMP,3/8", Insul, 3/8" Bolt
|
CAS
Line 3/8", Insul, 3/8" Bolt Superseded by part number: 86572009
|
| 7. |
121-115
|
[8] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 8. |
232-5315
|
[8] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 9. |
492-11010
|
[4] |
LOCK WASHER,#10
|
CAS
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 10. |
825-1405
|
[4] |
NUT,M5, Cl 8
|
CAS
Superseded by part number: 10788811
|
| 11. |
700135935
|
[2] |
SUPPORT
|
HFI
BRACKET - light
|
| 12. |
700132490
|
[2] |
BRACKET
|
HFI
- light
|
| 13. |
700714721
|
[2] |
LAMP
|
CAS
LIGHT - combination (includes hardware)
|
| 14. |
700717381
|
[1] |
BULB
|
CAS
|
| 15. |
700717385
|
[1] |
BULB
|
CAS
|
| 16. |
700717417
|
[1] |
LENS
|
CAS
- amber
|
| 17. |
700717386
|
[1] |
LENS
|
CAS
- red
|
