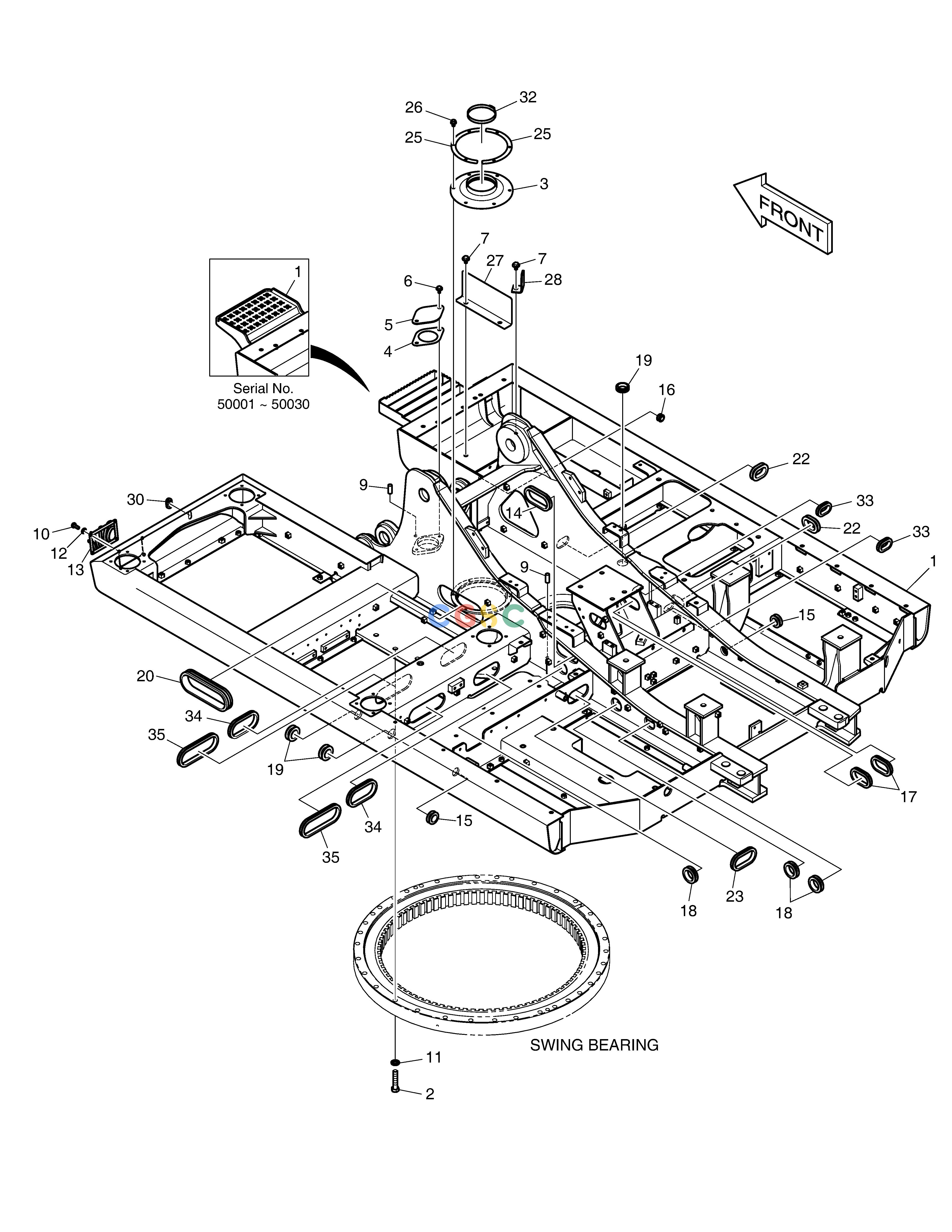

斗山零件查询MAIN FRAME DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
863 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1017778L
|
[-] |
|
|
| 1. |
K1017779E
|
[1] |
FRAME;MAIN
|
K1017779G
|
| 1. |
K1017779G
|
[1] |
FRAME;MAIN
|
|
| 1. |
K1017779H
|
[1] |
FRAME;MAIN
|
K1017779K
|
| 1. |
K1017779K
|
[1] |
FRAME;MAIN
|
K1017779L
|
| 1. |
K1017779L
|
[1] |
FRAME;MAIN
|
|
| 10. |
S0508866
|
[4] |
BOLT
|
|
| 11. |
2114-9012A
|
[36] |
WASHER
|
|
| 12. |
S5010513
|
[4] |
WASHER
|
|
| 13. |
621-02800
|
[1] |
GUARD;LAMP
|
|
| 14. |
DS7601045
|
[1] |
BUSHING,RUBBER
|
|
| 15. |
2160-1004D44
|
[2] |
BUSHING,RUBBER
|
|
| 16. |
2160-1004D48
|
[1] |
BUSHING;RUBBER
|
|
| 17. |
DS7601031
|
[2] |
RUBBER;BUSHING
|
|
| 18. |
2160-1004D34
|
[3] |
BUSHING,RUBBER
|
|
| 19. |
2160-1004D58
|
[3] |
GROMMET
|
|
| 2. |
S0570866
|
[36] |
BOLT
|
|
| 20. |
2160-1201D15
|
[1] |
BUSHING,RUBBER
|
|
| 22. |
DS7601040
|
[2] |
BUSHING;RUBBER
|
|
| 23. |
DS7601020
|
[1] |
BUSHING,RUBBER
|
|
| 25. |
191-02990B
|
[2] |
PLATE
|
|
| 26. |
K1001029
|
[6] |
BOLT
|
|
| 27. |
191-02987B
|
[1] |
PLATE
|
|
| 28. |
195-02623B
|
[1] |
BRACKET
|
|
| 3. |
160-00068
|
[1] |
COVER;RUBBER
|
|
| 30. |
160-00081
|
[1] |
CAP;RUBBER
|
|
| 32. |
S8470165
|
[1] |
CLAMP
|
|
| 33. |
DS7601047
|
[2] |
BUSHING;RUBBER
|
|
| 33. |
DS7603003
|
[2] |
BUSHING;RUBBER
|
|
| 33. |
2160-1004D3
|
[2] |
BUSHING
|
|
| 34. |
2160-1201D17
|
[2] |
BUSHING;RUBBER
|
|
| 35. |
DS7601021
|
[2] |
BUSHING;RUBBER
|
|
| 4. |
180-00463
|
[1] |
PACKING
|
|
| 5. |
621-02938B
|
[1] |
COVER
|
|
| 6. |
DS0025023
|
[2] |
BOLT
|
|
| 7. |
DS0025015
|
[3] |
BOLT
|
|
| 9. |
2123-1107D7
|
[2] |
PIN,KNOCK
|
|
