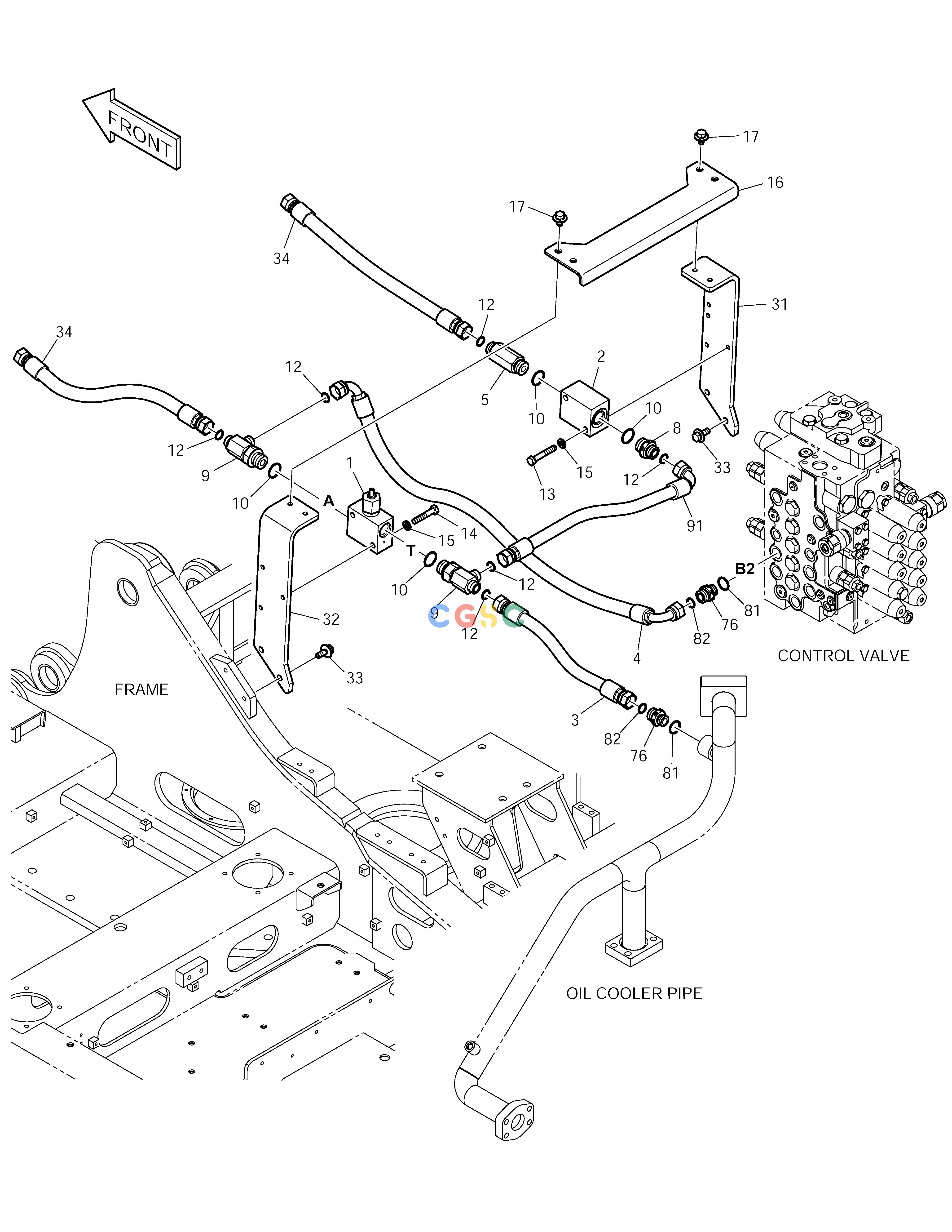

斗山零件查询MAIN PIPING - ONE WAY DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
233 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1027397B
|
[-] |
MAIN PIPING;ONE WAY
|
|
| 1. |
426-00267A
|
[1] |
VALVE;RELIEF
|
|
| 10. |
S8000291
|
[4] |
O-RING
|
|
| 12. |
S8030121
|
[5] |
O-RING
|
|
| 13. |
S0561266
|
[2] |
BOLT
|
|
| 14. |
S0561066
|
[2] |
BOLT
|
|
| 15. |
S5102703
|
[4] |
WASHER
|
|
| 16. |
K1016101
|
[1] |
BRACKET
|
|
| 17. |
DS0025019
|
[4] |
BOLT
|
|
| 2. |
423-00193B
|
[1] |
BLOCK
|
|
| 3. |
DS2011606
|
[1] |
HOSE
|
|
| 31. |
K1027077
|
[1] |
BRACKET
|
|
| 32. |
K1027078
|
[1] |
BRACKET
|
|
| 33. |
DS0025020
|
[4] |
BOLT
|
|
| 34. |
DS2011687
|
[2] |
HOSE
|
|
| 4. |
DS2023325
|
[1] |
HOSE 1 3/16"-670L
|
|
| 5. |
DS2232121
|
[1] |
ADAPTER
|
|
| 76. |
2181-2627D1
|
[2] |
ADAPTER
|
|
| 8. |
2181-2627D15
|
[1] |
ADAPTER
|
|
| 81. |
S8000241
|
[2] |
O-RING
|
|
| 82. |
S8030121
|
[2] |
O-RING
|
|
| 9. |
2181-2293D2
|
[2] |
TEE
|
|
| 91. |
DS2013126
|
[1] |
HOSE
|
|
