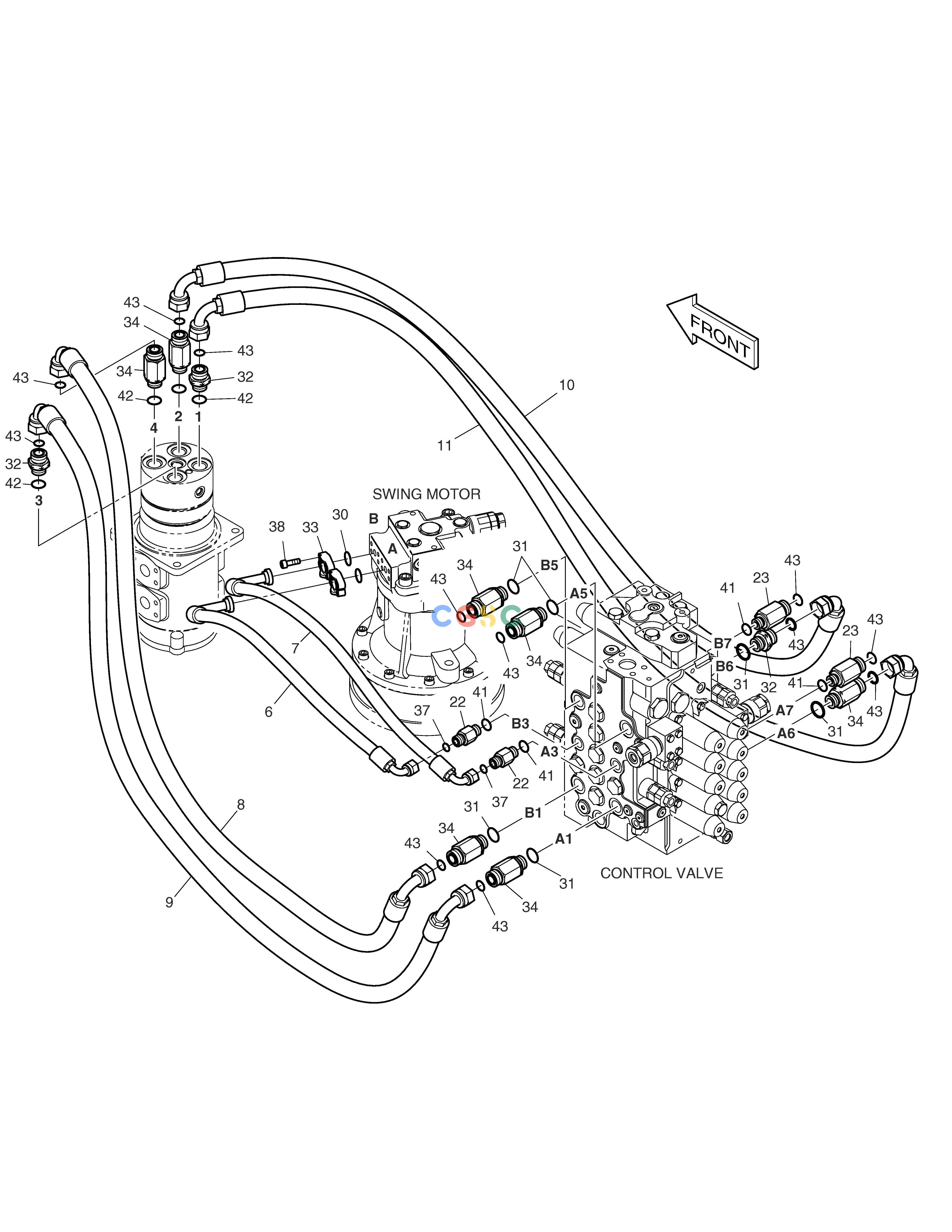

斗山零件查询MAIN PIPING(3) - SWING & TRAVEL DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
784 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1016140E
|
[-] |
MAIN PIPING
|
|
| 10. |
DS2023284
|
[1] |
HOSE
|
|
| 11. |
DS2023285
|
[1] |
HOSE
|
|
| 22. |
2181-4133D37
|
[2] |
ADAPTER
|
|
| 23. |
DS2257003
|
[2] |
ADAPTER
|
|
| 30. |
2180-1026D30
|
[2] |
O-RING
|
|
| 31. |
S8000241
|
[6] |
O-RING
|
|
| 32. |
2181-2627D1
|
[3] |
ADAPTER
|
|
| 33. |
2181-9089
|
[4] |
FLANGE
|
|
| 34. |
2181-2627D3
|
[7] |
ADAPTER
|
|
| 37. |
S8030081
|
[2] |
O-RING
|
|
| 38. |
S2209066
|
[8] |
BOLT
|
|
| 41. |
S8000181
|
[4] |
O-RING
|
|
| 42. |
S8000231
|
[4] |
O-RING
|
|
| 43. |
S8030121
|
[11] |
O-RING
|
|
| 6. |
DS2026191
|
[1] |
HOSE
|
|
| 7. |
DS2026162
|
[1] |
HOSE
|
|
| 8. |
DS2023283
|
[1] |
HOSE
|
|
| 9. |
DS2023283
|
[1] |
HOSE
|
|
