斗山零件查询MAIN PIPING(2) - BOOM DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
360 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

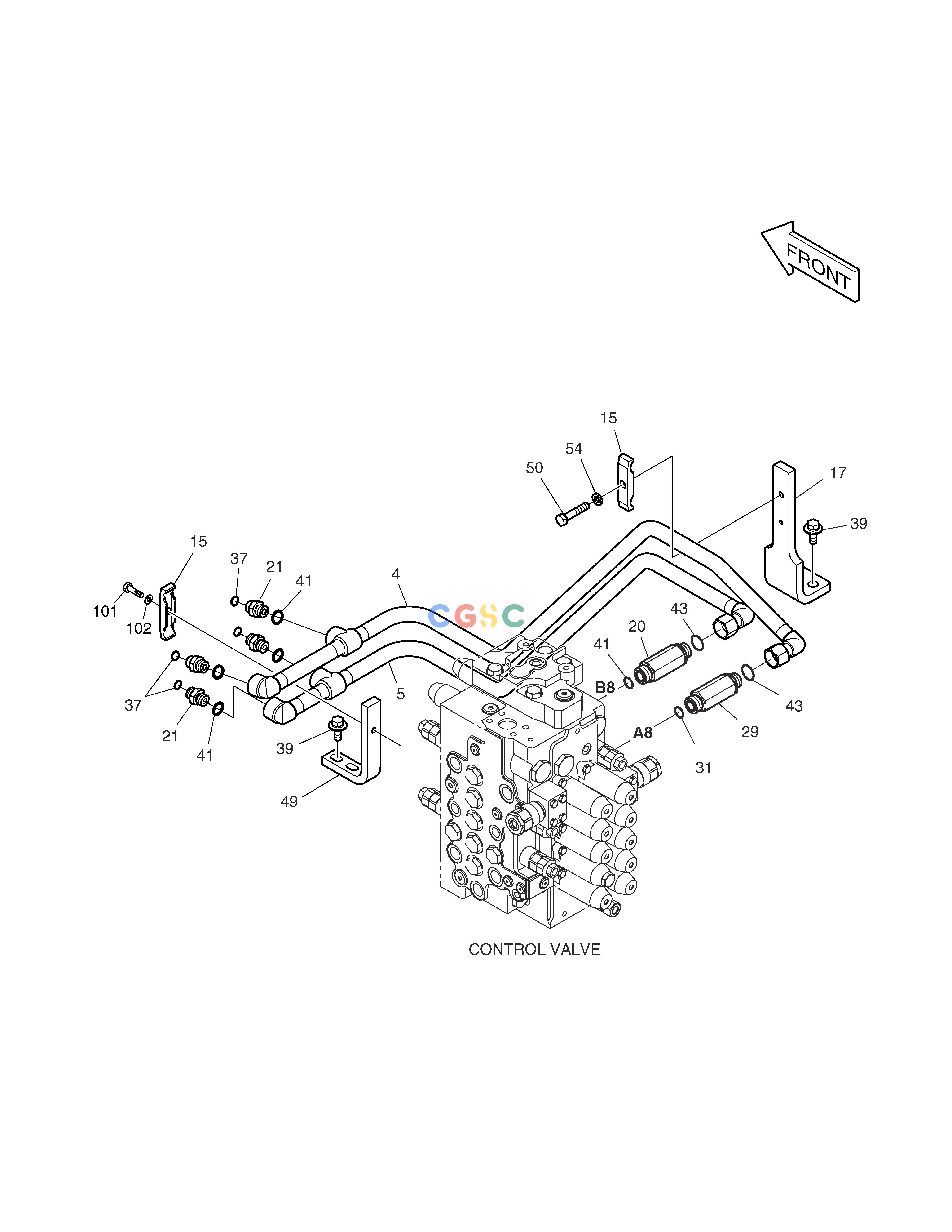

K1016140E
|
[-] |
MAIN PIPING
|
|
| 101. |
S0560966
|
[1] |
BOLT
|
|
| 102. |
S5102703
|
[1] |
WASHER
|
|
| 15. |
2124-1025D6
|
[2] |
CLAMP
|
|
| 17. |
195-02884B
|
[1] |
PLATE
|
|
| 20. |
DS2257004
|
[1] |
ADAPTER
|
|
| 21. |
2181-4133D3
|
[4] |
ADAPTER
|
|
| 29. |
DS2232124
|
[1] |
ADAPTER
|
|
| 31. |
S8000241
|
[1] |
O-RING
|
|
| 37. |
S8030081
|
[4] |
O-RING
|
|
| 39. |
DS0025020
|
[4] |
BOLT
|
|
| 4. |
K1016387C
|
[1] |
PIPE
|
|
| 41. |
S8000181
|
[5] |
O-RING
|
|
| 43. |
S8030121
|
[2] |
O-RING
|
|
| 49. |
2195-3657
|
[1] |
BRACKET
|
|
| 5. |
K1024206B
|
[1] |
PIPE
|
|
| 50. |
S0560966
|
[1] |
BOLT
|
|
| 54. |
S5102703
|
[1] |
WASHER
|
|
