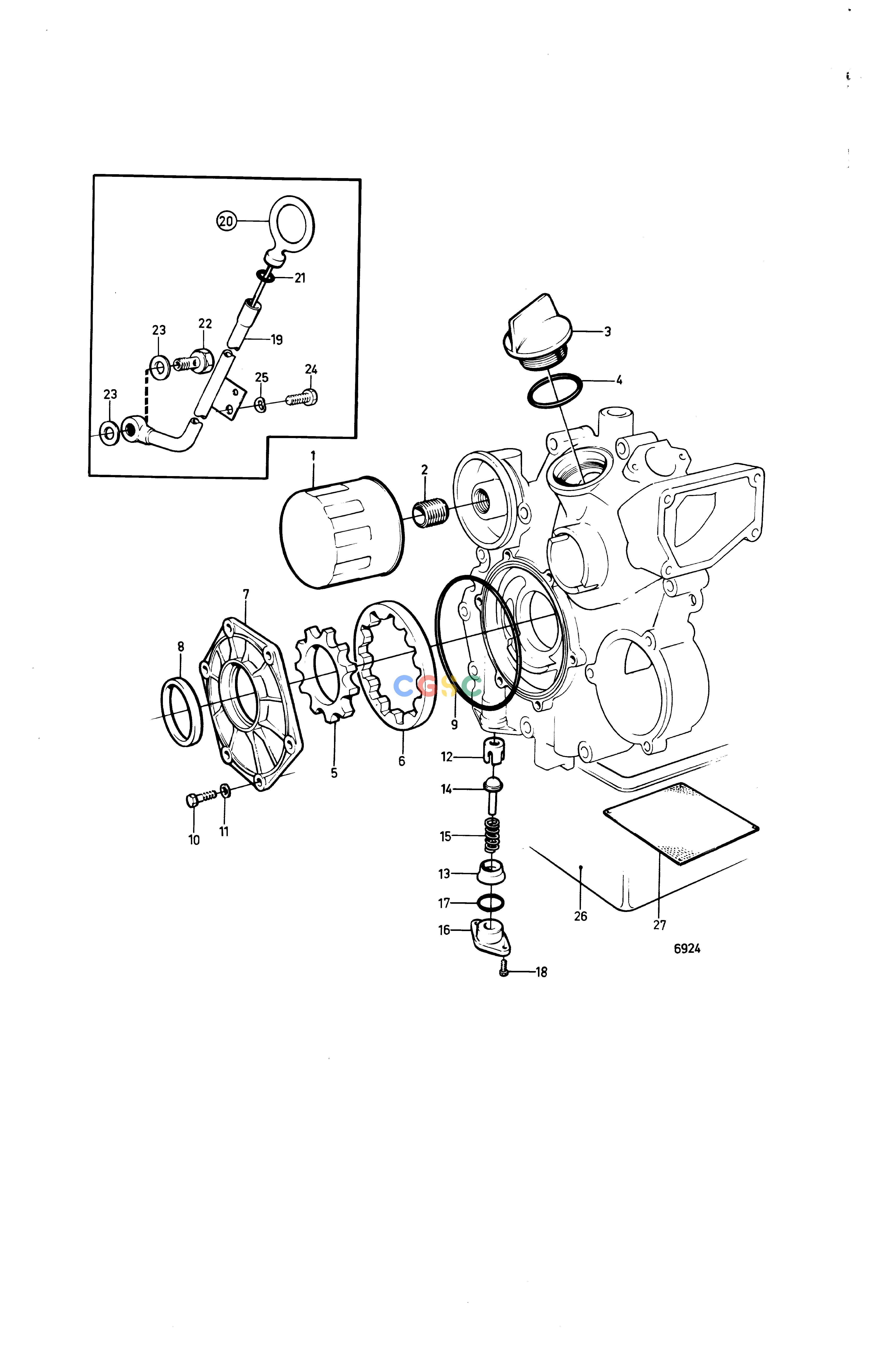

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TEngineLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
143 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
834337
|
[1] |
Oil filter
|
|
| 2. |
840274
|
[1] |
Nipple
|
|
| 3. |
840559
|
[1] |
Cover
|
|
| 4. |
949659
|
[1] |
O-ring
|
|
| 5. |
840552
|
[1] |
Gear, inner
|
|
| 6. |
840553
|
[1] |
Gear, outer
|
|
| 7. |
840498
|
[1] |
Cap
|
|
| 8. |
6842273
|
[1] |
Lip seal
|
(1306333)
|
| 9. |
967591
|
[1] |
O-ring
|
|
| 10. |
955272
|
[6] |
Hexagon screw
|
|
| 11. |
949607
|
[6] |
Spring washer
|
|
| 12. |
1542265
|
[1] |
Valve seat
|
|
| 13. |
3581950
|
[1] |
Sleeve
|
|
| 14. |
471085
|
[1] |
Valve cone
|
|
| 15. |
840792
|
[1] |
Spring
|
|
| 16. |
1542267
|
[1] |
Cover
|
|
| 17. |
925064
|
[1] |
O-ring
|
|
| 18. |
955269
|
[2] |
Hexagon screw
|
|
| 19. |
840695
|
[1] |
Tube
|
|
| 20. |
840318
|
[1] |
Oil dipstick
|
|
| 21. |
949187
|
[1] |
O-ring
|
|
| 22. |
25167
|
[1] |
Hollow screw
|
|
| 23. |
969011
|
[2] |
Gasket
|
|
| 24. |
970944
|
[1] |
Hexagon screw
|
(963240)
|
| 25. |
941908
|
[1] |
Spring washer
|
|
| 26. |
|
|
|
Included in engine block
|
| 27. |
840568
|
[1] |
Strainer
|
Included in engine block
|
