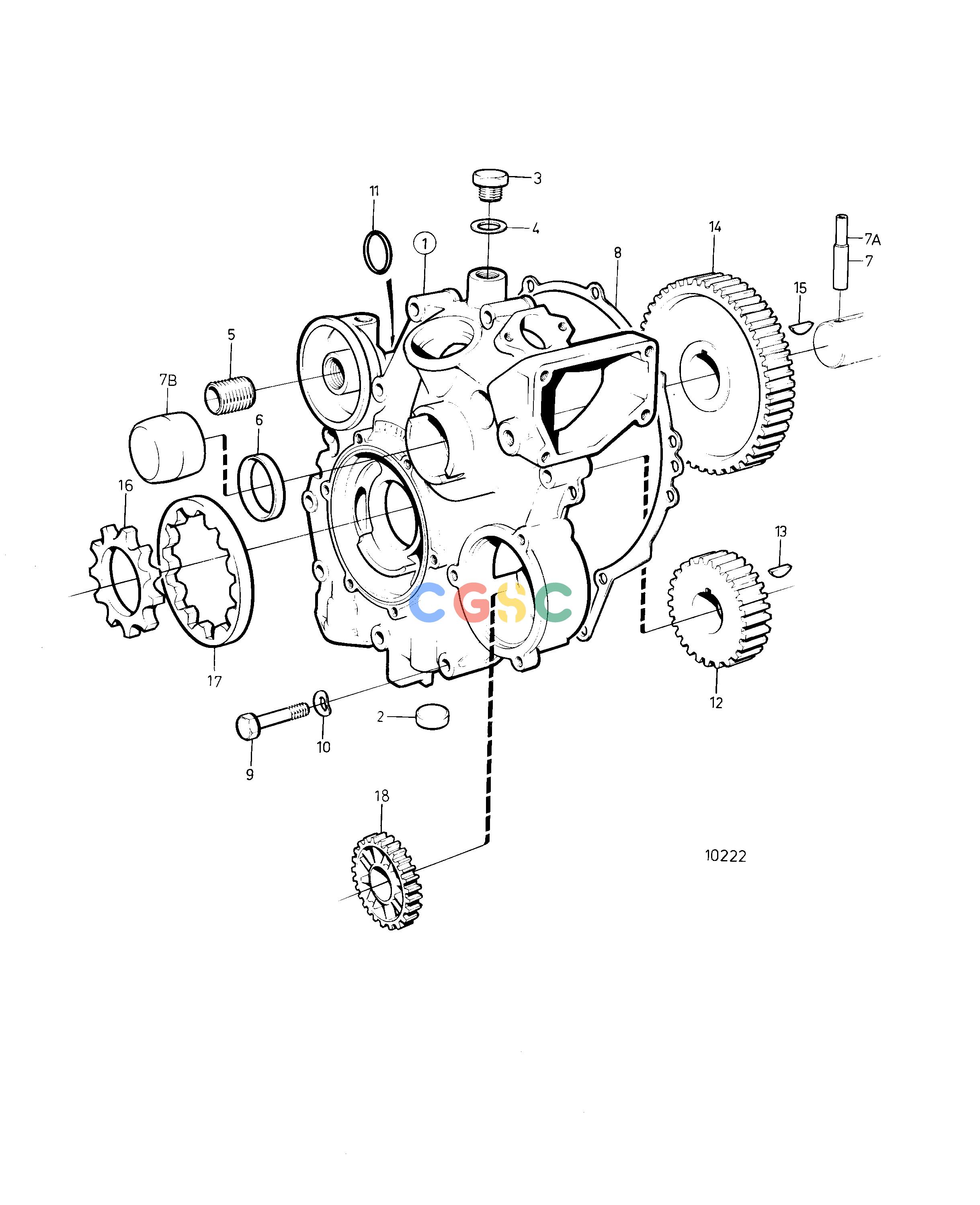

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TEngineTiming Gear Casing and GearsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
381 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
840920
|
[1] |
Timing gear casing
|
Repl by 860199
|
| 1. |
860199
|
[1] |
Timing gear casing
|
Repl by 860546
|
| 1. |
860546
|
[1] |
Timing gear casing
|
|
| 2. |
946779
|
[1] |
Cap plug
|
|
| 3. |
960632
|
[1] |
Plug
|
|
| 4. |
957181
|
[1] |
Gasket
|
|
| 5. |
840274
|
[1] |
Nipple
|
|
| 6. |
840446
|
[1] |
Sealing ring
|
|
| 7. |
951979
|
[1] |
Spring pin
|
For starting crank., Early type
|
| 7A. |
968782
|
[1] |
Spring pin
|
For starting crank., Early type
|
| 7B. |
859110
|
[1] |
Plug
|
For engines without starting crank., Late type
|
| 8. |
859048
|
[1] |
Gasket
|
(840578)
|
| 9. |
955301
|
[8] |
Hexagon screw
|
|
| 10. |
941907
|
[8] |
Spring washer
|
|
| 11. |
943177
|
[1] |
O-ring
|
|
| 12. |
840350
|
[1] |
Gear
|
Crankshaft gear
|
| 13. |
910118
|
[1] |
Woodruff key
|
|
| 14. |
858269
|
[1] |
Gear
|
Camshaft gear
|
| 15. |
910118
|
[1] |
Woodruff key
|
|
| 16. |
840552
|
[1] |
Gear
|
|
| 17. |
840553
|
[1] |
Gear
|
|
| 18. |
858526
|
[1] |
Gear, sea water pump
|
(840417) see group 2B
|
