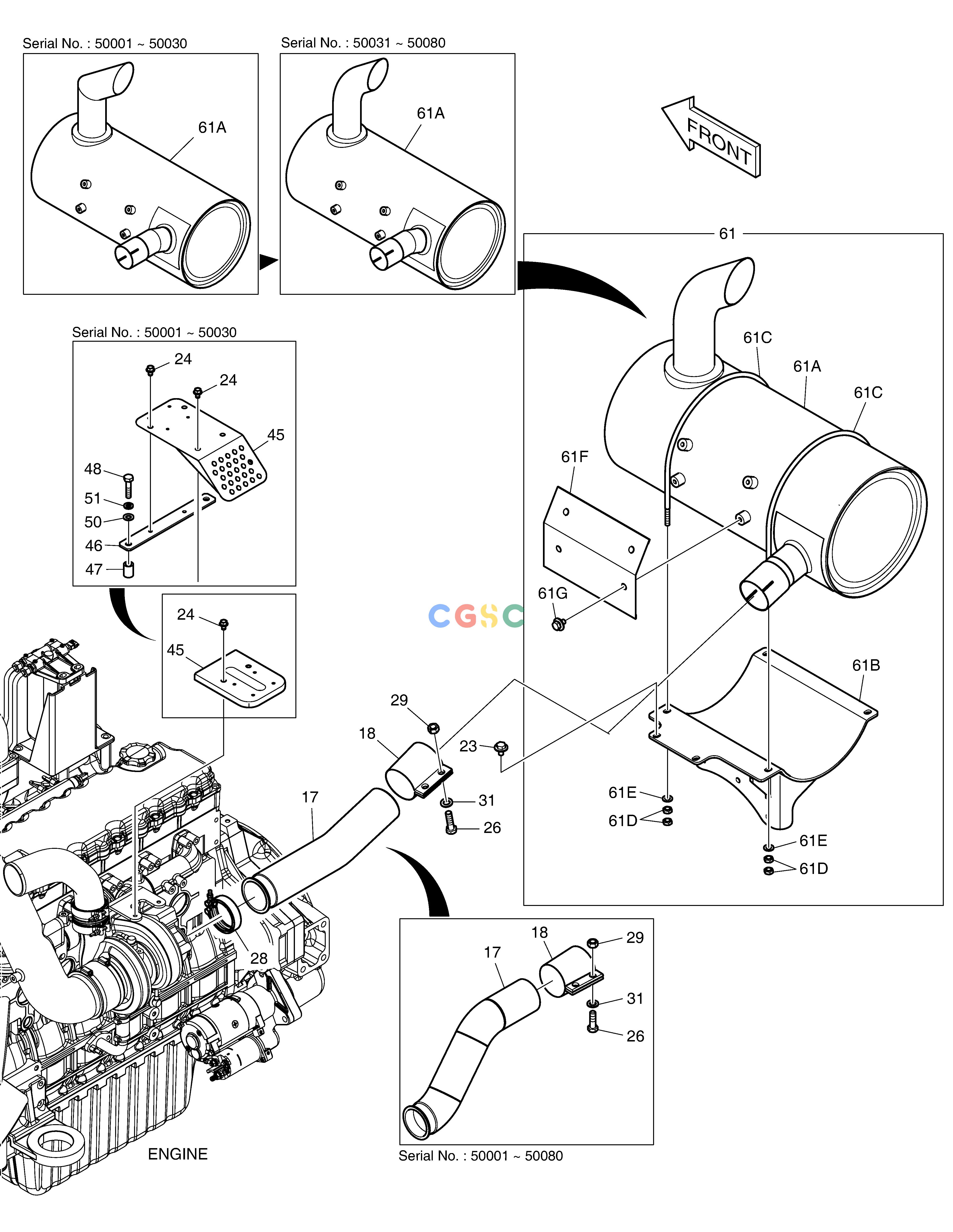

斗山零件查询MUFFLER DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
216 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1017777H
|
[-] |
|
|
| -. |
K1054336
|
[-] |
|
|
| 17. |
K1026655
|
[1] |
PIPE;EXHAUST
|
|
| 17. |
K1046403
|
[1] |
PIPE;EXHAUST
|
|
| 18. |
124-00310A
|
[1] |
CLAMP
|
2124-1592A
|
| 18. |
2124-1592A
|
[1] |
CLAMP
|
|
| 23. |
DS0025014
|
[2] |
BOLT
|
|
| 24. |
K1001029
|
[4] |
BOLT
|
|
| 24. |
K1001029
|
[2] |
BOLT
|
|
| 26. |
S0515566
|
[2] |
BOLT
|
|
| 28. |
K1014728
|
[1] |
CLAMP
|
|
| 29. |
S4012733
|
[2] |
NUT
|
|
| 31. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 45. |
K1015292A
|
[1] |
COVER
|
|
| 45. |
K1037930
|
[1] |
COVER
|
|
| 46. |
K1015293
|
[1] |
PLATE
|
|
| 47. |
K1015294
|
[2] |
SPACER
|
|
| 48. |
S0558466
|
[2] |
BOLT
|
|
| 50. |
S5010613
|
[2] |
WASHER
|
|
| 51. |
S5102603
|
[2] |
. WASHER
|
|
| 61. |
K1033234
|
[1] |
MUFFLER SUB ASS'Y
|
K1033234A
|
| 61. |
K1033234A
|
[1] |
MUFFLER SUB ASS'Y
|
|
| 61. |
K1033234B
|
[1] |
MUFFLER SUB ASS'Y
|
|
| 61A. |
K1033219
|
[1] |
MUFFLER
|
K1033219A
|
| 61A. |
K1033219B
|
[1] |
MUFFLER
|
|
| 61A. |
K1033219A
|
[1] |
MUFFLER
|
|
| 61B. |
K1023198C
|
[1] |
BRACKET
|
|
| 61C. |
K1029357
|
[2] |
. BOLT;U
|
|
| 61D. |
S4012633
|
[8] |
NUT
|
|
| 61E. |
S5010613
|
[4] |
WASHER
|
|
| 61F. |
K1023194
|
[1] |
INSULATOR
|
|
| 61G. |
DS0025013
|
[4] |
BOLT
|
|
