斗山零件查询OIL COOLER PIPING(1) DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
813 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1016458L
|
[-] |

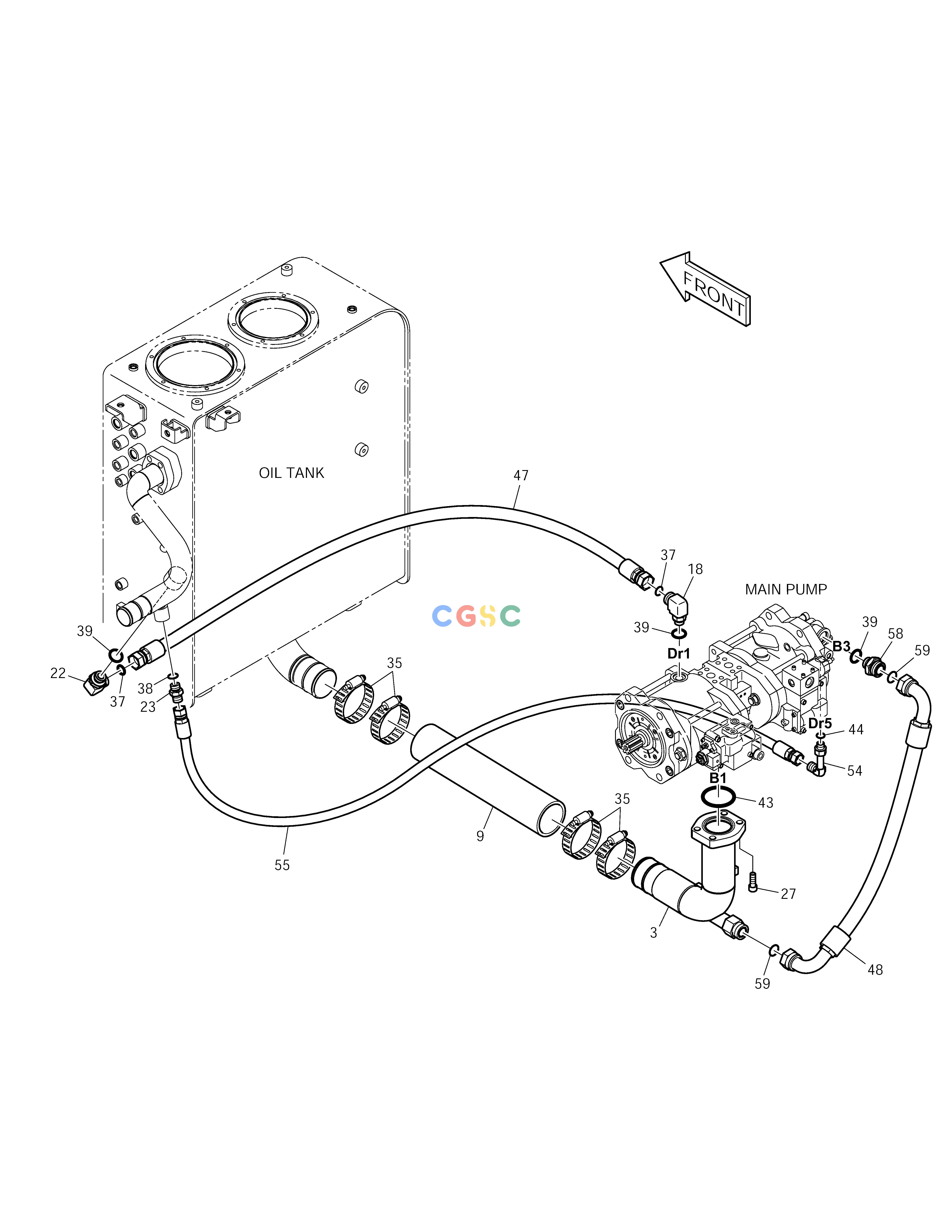

OIL COOLER PIPING
|
|
| 18. |
2181-2294D1
|
[1] |
ELBOW
|
|
| 22. |
2181-2294D10
|
[1] |
ELBOW
|
|
| 23. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 27. |
S2215366
|
[4] |
BOLT
|
|
| 3. |
K1016453B
|
[1] |
PIPE;SUCTION
|
K1016453C
|
| 3. |
K1016453C
|
[1] |
PIPE;SUCTION
|
|
| 35. |
S8500105
|
[4] |
CLAMP
|
|
| 37. |
S8030121
|
[2] |
O-RING
|
|
| 38. |
S8000181
|
[1] |
O-RING
|
|
| 39. |
S8000241
|
[3] |
O-RING
|
|
| 43. |
2180-1026D31
|
[1] |
O-RING
|
|
| 44. |
S8000141
|
[1] |
O-RING
|
|
| 47. |
2184-1196D58
|
[1] |
HOSE
|
|
| 47. |
DS2011112
|
[1] |
HOSE
|
|
| 48. |
DS2023318
|
[1] |
HOSE
|
|
| 54. |
2181-1702D36
|
[1] |
ELBOW
|
|
| 55. |
DS2053923
|
[1] |
HOSE
|
|
| 58. |
DS2232232
|
[1] |
ADAPTER
|
|
| 59. |
S8030161
|
[2] |
O-RING
|
|
| 9. |
2185-1002D93
|
[1] |
HOSE
|
|
