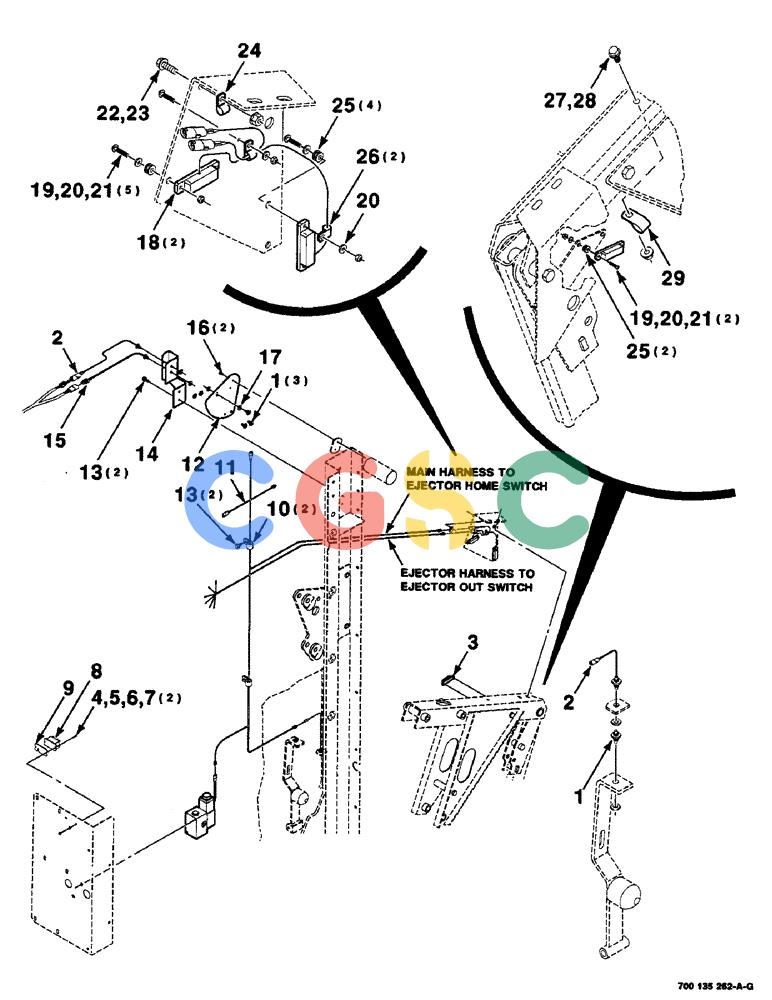

| 1. |
700707354
|
[4] |
CONNECTION,ELECTRIC
|
IH
ACTUATOR
|
| 2. |
700119161
|
[2] |
SWITCH
|
L
SENSOR "A"
|
| 3. |
700709996
|
[1] |
SWITCH
|
IH
ACTUATOR - switch
|
| 4. |
440-1088
|
[2] |
SCREW,Cross Pan Hd, #8-32 x 1/2"
|
CAS
GR60M Cross Pan Hd, #8-32 x 1/2" Superseded by part number: 81822758
|
| 5. |
495-21019
|
[2] |
WASHER,#8
|
CAS
Superseded by part number: 280299, 72187261
|
| 6. |
492-11008
|
[2] |
LOCK WASHER,#8
|
CAS
Washer, Lock, #8 Superseded by part number: 87812
|
| 7. |
225-14108
|
[2] |
NUT,#8-32
|
CAS
H GR2 #8-32 Superseded by part number: 86977693
|
| 8. |
700716828
|
[1] |
RELAY
|
CAS
- electrical
|
| 9. |
700718448
|
[1] |
GASKET
|
CAS
- relay
|
| 10. |
515-25127
|
[2] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Hose 1/2", Insul, 1/2" Bolt Superseded by part number: 86632595
|
| 11. |
700716508
|
[1] |
HARNESS
|
CAS
- wire
|
| 12. |
700135956
|
[1] |
PLATE
|
HFI
DISC - switching
|
| 13. |
281-34912
|
[4] |
SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
3/8-16 X 3/4 HWHTCTS
|
| 14. |
700135955
|
[1] |
PLATE
|
HFI
SUPPORT - switch
|
| 15. |
700716875
|
[1] |
SWITCH
|
CAS
|
| 16. |
409-748
|
[2] |
BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl
|
CAS
Superseded by part number: 523291
|
| 17. |
700710190
|
[1] |
WASHER
|
CAS
- stainless steel
|
| 18. |
700710208
|
[2] |
ROTARY SWITCH
|
L
SWITCH - assembly
|
| 19. |
700710188
|
[7] |
SCREW
|
CAS
#6-32 X 3/4 CRPHMS STNLS
|
| 20. |
700710187
|
[8] |
WASHER
|
CAS
#6 WPW STNLS
|
| 21. |
700710189
|
[7] |
LOCK NUT
|
CAS
#6-32 LHSN STNLS
|
| 22. |
7883275
|
[1] |
SCREW,Hex Washer, 1/4" - 20 x 3/4"
|
CAS
1/4-20 X 3/4 HWHMS
|
| 23. |
1703354
|
[1] |
NUT
|
IH
1/4-20 HFTLN GR/G
|
| 24. |
515-2363
|
[1] |
CLAMP,M6.3, Insul, 3/8" Bolt
|
CAS
Superseded by part number: 675162
|
| 25. |
700710199
|
[6] |
GROMMET
|
CAS
|
| 26. |
515-2179
|
[2] |
CLAMP,5/16", Insul, 1/4" Bolt
|
CAS
Line 5/16", Insul, 1/4" Bolt Superseded by part number: 237910
|
| 27. |
409-7612
|
[1] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 28. |
232-5316
|
[1] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 29. |
515-23190
|
[1] |
CLAMP,3/4", Insul, 3/8" Bolt
|
CAS
Line 3/4", Insul, 3/8" Bolt Superseded by part number: 86624005
|
