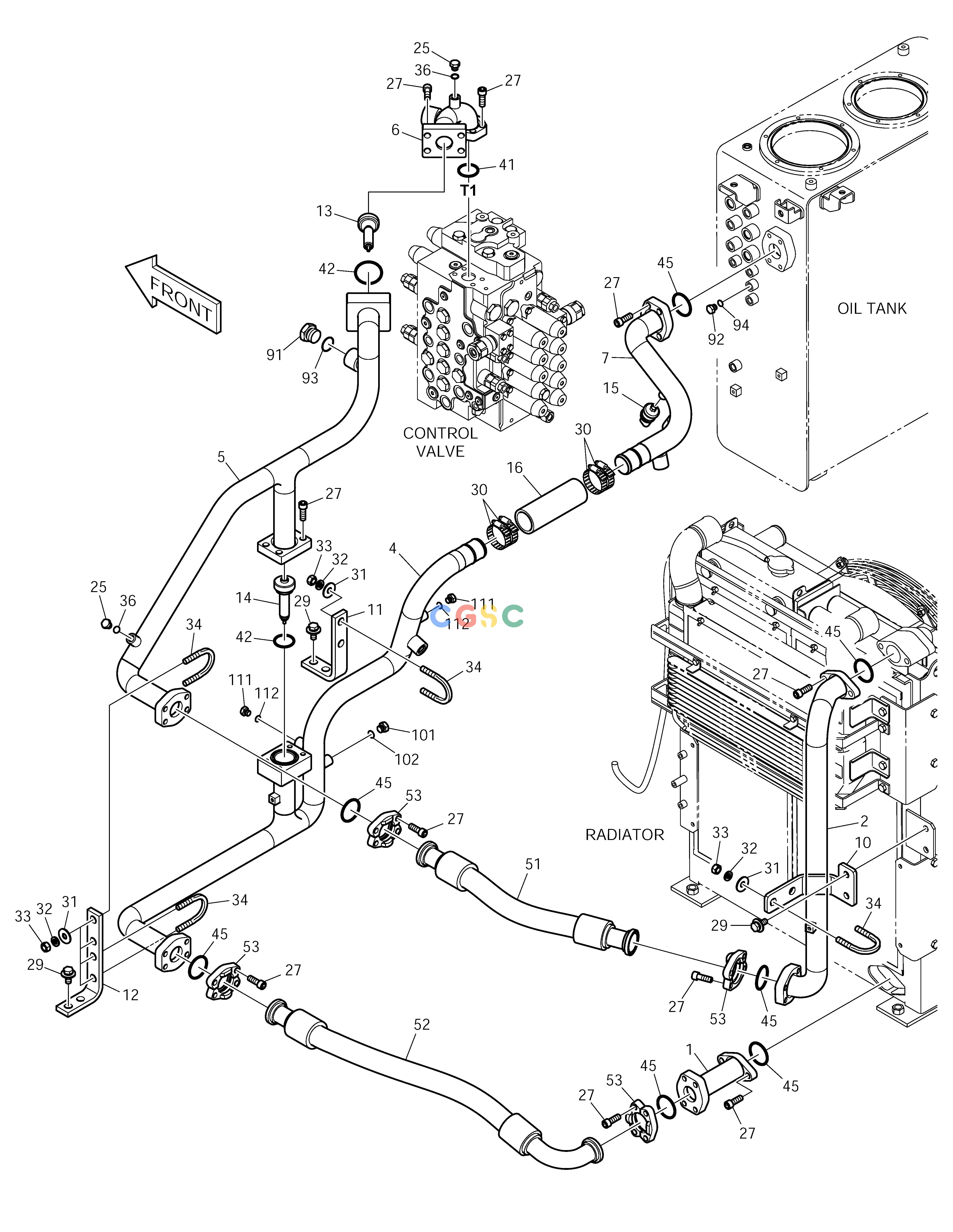

斗山零件查询OIL COOLER PIPING(3) DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
829 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1016458L
|
[-] |
OIL COOLER PIPING
|
|
| 1. |
K1009471
|
[1] |
PIPE
|
|
| 10. |
K1009510A
|
[1] |
PLATE
|
|
| 101. |
2181-1950D2
|
[1] |
PLUG
|
|
| 102. |
S8000141
|
[1] |
O-RING
|
|
| 11. |
K1013529
|
[1] |
BRACKET;PLATE
|
|
| 111. |
2181-1950D1
|
[2] |
PLUG
|
|
| 112. |
S8000111
|
[2] |
O-RING
|
|
| 12. |
K1026736
|
[1] |
BRACKET
|
|
| 13. |
420-00304
|
[1] |
VALVE;BY-PASS
|
|
| 14. |
2420-1124B
|
[1] |
VALVE;BY-PASS
|
|
| 15. |
549-00095
|
[1] |
SWITCH;PRESSURE
|
|
| 16. |
2185-1776D2
|
[1] |
HOSE 200L
|
|
| 2. |
K1015094
|
[1] |
PIPE
|
|
| 25. |
2181-1950D1
|
[2] |
PLUG
|
|
| 27. |
S2215366
|
[36] |
BOLT
|
|
| 29. |
DS0025018
|
[6] |
BOLT
|
|
| 30. |
S8500067
|
[4] |
CLAMP
|
|
| 31. |
2114-1058D30
|
[8] |
. WASHER
|
|
| 32. |
S5102703
|
[8] |
WASHER
|
|
| 33. |
S4012733
|
[8] |
NUT
|
|
| 34. |
120-00317
|
[4] |
BOLT
|
|
| 36. |
S8000111
|
[2] |
O-RING
|
|
| 4. |
K1016454C
|
[1] |
PIPE
|
|
| 41. |
2180-1026D23
|
[1] |
O-RING
|
|
| 42. |
2180-1026D27
|
[2] |
O-RING
|
|
| 45. |
2180-1026D28
|
[7] |
O-RING
|
|
| 5. |
K1016455A
|
[1] |
PIPE
|
|
| 51. |
DS2038221
|
[1] |
HOSE
|
|
| 52. |
DS2040592
|
[1] |
HOSE
|
|
| 53. |
4215-1003D5
|
[8] |
FLANGE
|
|
| 6. |
K1016456A
|
[1] |
PIPE
|
|
| 7. |
K1016457B
|
[1] |
PIPE
|
|
| 91. |
2181-1950D9
|
[1] |
PLUG
|
|
| 92. |
2181-1950D1
|
[1] |
PLUG
|
|
| 93. |
S8000291
|
[1] |
O-RING
|
|
| 94. |
S8000111
|
[1] |
O-RING
|
|
