斗山零件查询OIL COOLER PIPING(2) DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
520 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1016458L
|
[-] |

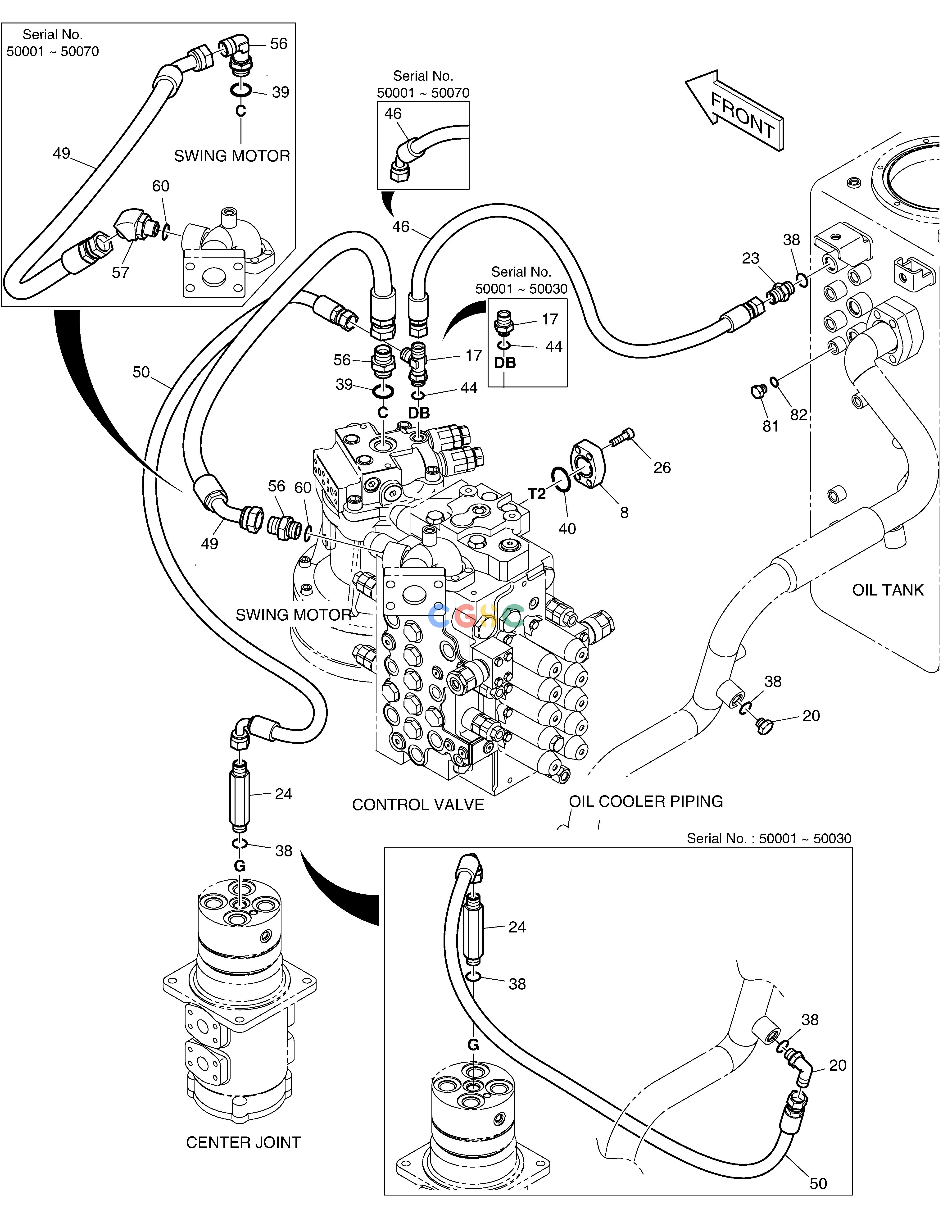

OIL COOLER PIPING
|
|
| 17. |
2181-1126D20
|
[1] |
ADAPTER
|
|
| 17. |
2181-1951D5
|
[2] |
TEE
|
|
| 20. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 20. |
2181-1950D3
|
[1] |
PLUG
|
|
| 23. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 24. |
DS2213167
|
[1] |
ADAPTER
|
|
| 26. |
S2212366
|
[4] |
BOLT
|
|
| 38. |
S8000181
|
[3] |
O-RING
|
|
| 39. |
S8000241
|
[1] |
O-RING
|
|
| 40. |
2180-1026D19
|
[1] |
O-RING
|
|
| 44. |
S8000141
|
[1] |
O-RING
|
|
| 46. |
DS2054131
|
[1] |
HOSE
|
|
| 46. |
2184-1026D358
|
[1] |
HOSE PF1/2-600L
|
|
| 49. |
DS2054385
|
[1] |
HOSE
|
|
| 49. |
DS2054441
|
[1] |
HOSE
|
|
| 50. |
DS2055300
|
[1] |
HOSE
|
|
| 50. |
DS2055347
|
[1] |
HOSE
|
|
| 56. |
2181-1702D49
|
[1] |
ELBOW PF3/4-PFO3/4
|
|
| 56. |
2181-1126D150
|
[2] |
ADAPTER
|
|
| 57. |
2181-2419D5
|
[1] |
ELBOW
|
|
| 60. |
S8000231
|
[1] |
O-RING
|
|
| 8. |
2181-2157D5
|
[1] |
FLANGE;COVER
|
|
| 81. |
2181-1950D1
|
[1] |
PLUG
|
|
| 82. |
S8000111
|
[1] |
O-RING
|
|
