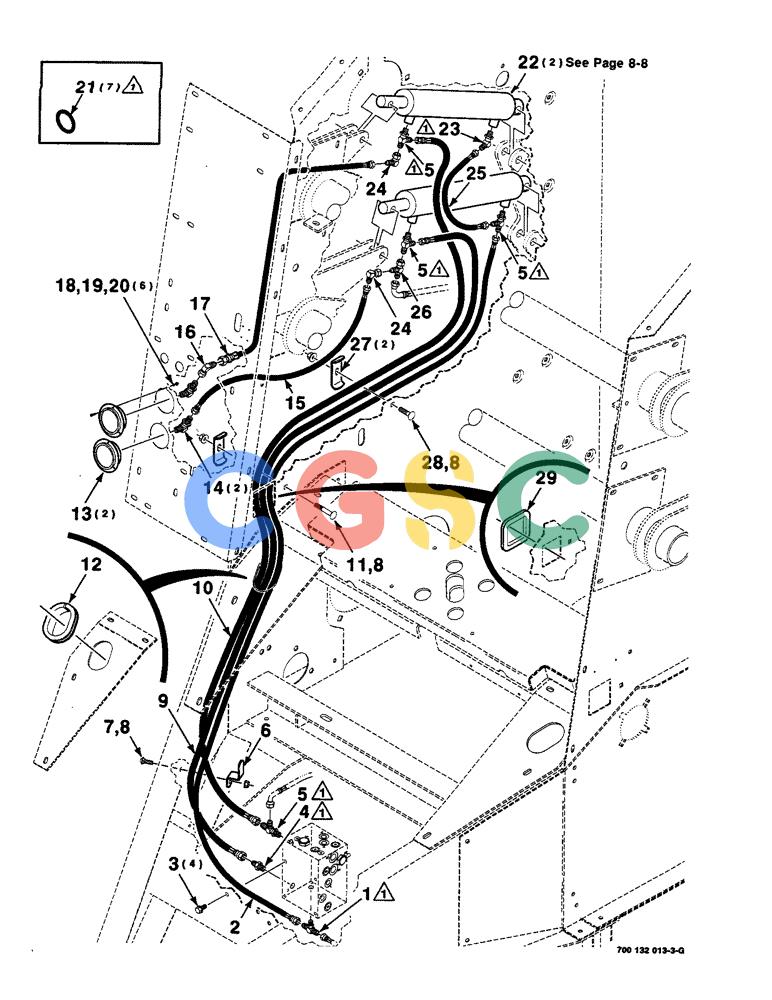

| 1. |
218-5182
|
[1] |
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
- straight thread branch (includes item 21) Superseded by part number: 163335
|
| 2. |
700714793
|
[1] |
HYDRAULIC HOSE,0.25" ID x 92.52", SAE J516, SAE J343
|
CAS
HOSE - hydraulic
|
| 3. |
409-7612
|
[4] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 4. |
218-5057
|
[1] |
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
|
CAS
CONNECTOR - short str thread (includes item 21) Superseded by part number: 76350
|
| 5. |
218-5243
|
[4] |
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Straight run (Includes item 21) 9/16"-18, 37º x 9/16"-18, O-Ring Run Superseded by part number: 86513020
|
| 6. |
700132507
|
[1] |
CLAMP
|
HFI
- hose
|
| 7. |
433-620
|
[1] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5 Superseded by part number: 86508773
|
| 8. |
232-5316
|
[3] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 9. |
700714819
|
[1] |
HYDRAULIC HOSE,0.38" ID x 100.39", SAE J516, SAE J343
|
CAS
HOSE - hydraulic
|
| 10. |
700714817
|
[1] |
HYDRAULIC HOSE,0.25" ID x 106.30", SAE J516, SAE J343
|
CAS
HOSE - hydraulic
|
| 11. |
433-644
|
[1] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5
|
CAS
3/8-16 X 2-3/4 RHSNB Superseded by part number: 280628
|
| 12. |
700715846
|
[1] |
ORNAMENTAL STRIP
|
CAS
TRIM
|
| 13. |
700711782
|
[2] |
GAUGE
|
CAS
- pressure Superseded by part number: 700722353
|
| 14. |
218-513
|
[2] |
ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF
|
CAS
CONNECTOR - 90 degrees Superseded by part number: 9402903
|
| 15. |
700715142
|
[1] |
HYDRAULIC HOSE,0.25" ID x 35.43", SAE J516, SAE J343
|
CAS
HOSE - hydraulic
|
| 16. |
218-5172
|
[1] |
ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC
|
CAS
45 DEGREE ELBOW Superseded by part number: 86512959
|
| 17. |
700716074
|
[1] |
HYDRAULIC HOSE,0.25" ID x 43.31", SAE 100R17, SAE J516, SAE J343
|
CAS
HOSE - hydraulic
|
| 18. |
440-1068
|
[6] |
SCREW,Cross Pan Hd, #6-32 x 1/2"
|
CAS
#6-32 X 1/2 CRPHMS GR60M Superseded by part number: 281007
|
| 19. |
492-11006
|
[6] |
LOCK WASHER,#6
|
CAS
Washer, Lock, #6 Superseded by part number: 87276
|
| 20. |
225-14106
|
[6] |
NUT,#6-32
|
CAS
Superseded by part number: 88458, 87779111
|
| 21. |
738468
|
[7] |
O-RING
|
IH
|
| 22. |
700714707
|
[2] |
CYLINDER
|
CAS
ASSEMBLY - hydraulic
|
| 23. |
218-5135
|
[1] |
ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
- 45 degrees (includes item 21) Superseded by part number: 330346
|
| 24. |
218-980
|
[2] |
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
|
CAS
Superseded by part number: 72186136, 86629586
|
| 25. |
700714820
|
[1] |
HYDRAULIC HOSE,0.25" ID x 18.11", SAE J516, SAE J343
|
CAS
HOSE - hydraulic
|
| 26. |
218-5222
|
[1] |
TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run
|
CAS
Superseded by part number: 72186135, 129274
|
| 27. |
700120636
|
[2] |
CLAMP
|
HFI
- hose
|
| 28. |
111-361
|
[1] |
CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5
|
CAS
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5 Superseded by part number: 9706752
|
| 29. |
700715845
|
[1] |
ORNAMENTAL STRIP
|
CAS
TRIM
|
