斗山零件查询PILOT PIPING (3) DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
403 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1017469E
|
[-] |

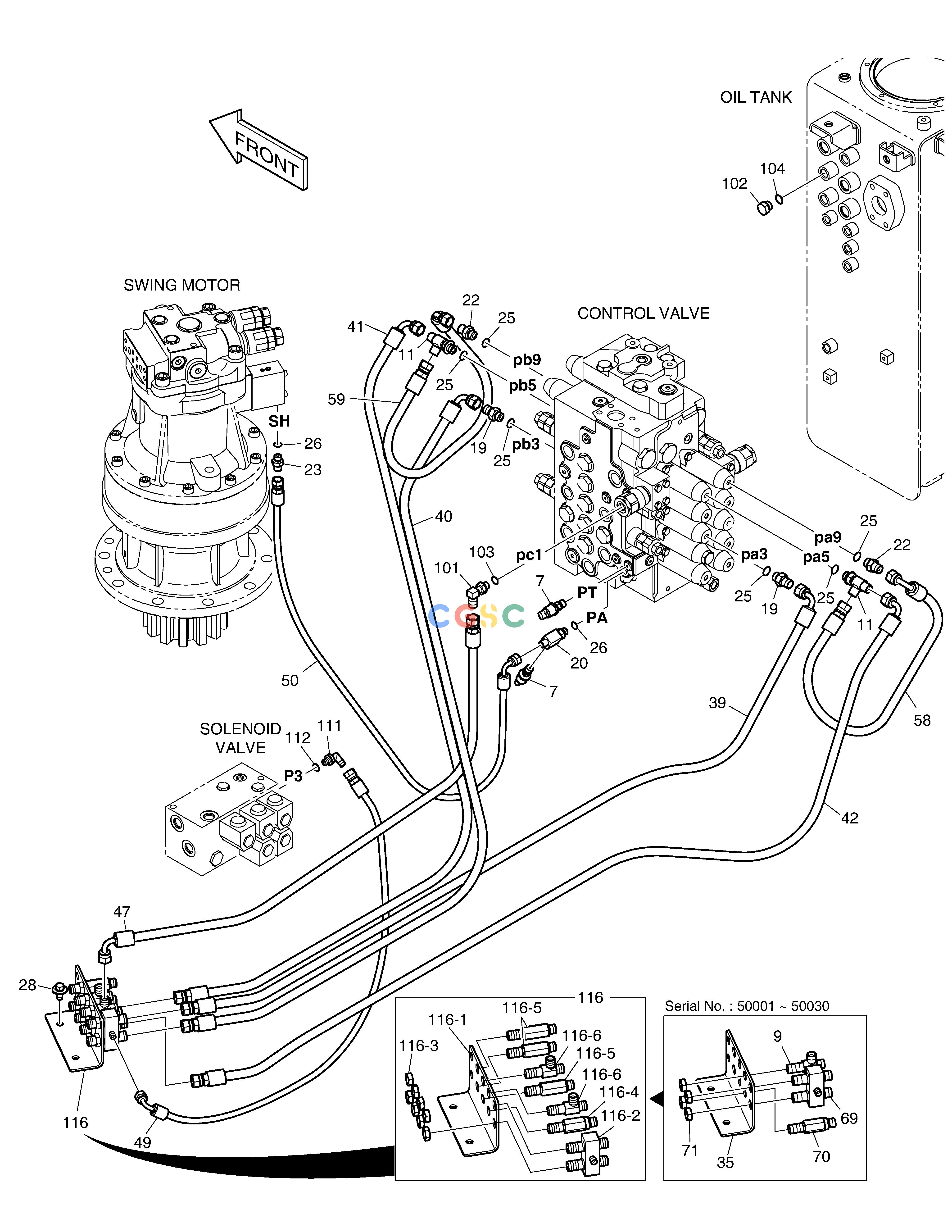

PILOT PIPING
|
|
| 101. |
2181-1702D3
|
[1] |
ELBOW
|
|
| 102. |
2181-1950D2
|
[1] |
PLUG
|
|
| 103. |
S8000111
|
[1] |
O-RING
|
|
| 104. |
S8000141
|
[1] |
O-RING
|
|
| 11. |
2181-1951D16
|
[2] |
TEE
|
|
| 111. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 112. |
S8000111
|
[1] |
O-RING
|
|
| 116. |
K1040110
|
[1] |
JOINT PLATE SUB ASS'Y
|
|
| 116-1. |
K1000354
|
[1] |
PLATE
|
|
| 116-2. |
420-00307
|
[1] |
VALVE;SHUTTLE
|
|
| 116-3. |
121-00010D1
|
[8] |
NUT
|
|
| 116-4. |
420-00352D1
|
[1] |
VALVE,SHOCKLESS
|
|
| 116-5. |
DS2410009
|
[3] |
ADAPTER
|
|
| 116-6. |
181-00086D2
|
[2] |
TEE
|
|
| 19. |
181-00144D5
|
[2] |
ADAPTER
|
|
| 20. |
K1024104
|
[1] |
TEE
|
|
| 22. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 23. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 25. |
S8000141
|
[6] |
O-RING
|
|
| 26. |
S8000111
|
[2] |
O-RING
|
|
| 28. |
DS0025017
|
[2] |
BOLT
|
|
| 35. |
K1000354
|
[1] |
PLATE
|
|
| 39. |
DS2093372
|
[1] |
HOSE
|
|
| 40. |
DS2093176
|
[1] |
HOSE
|
|
| 41. |
DS2093176
|
[1] |
HOSE
|
|
| 42. |
DS2093382
|
[1] |
HOSE
|
|
| 47. |
DS2093445
|
[1] |
HOSE
|
|
| 49. |
DS2093237
|
[1] |
HOSE
|
|
| 50. |
DS2093036
|
[1] |
HOSE
|
|
| 58. |
DS2093244
|
[1] |
HOSE
|
|
| 59. |
DS2093097
|
[1] |
HOSE
|
|
| 69. |
420-00307
|
[1] |
VALVE;SHUTTLE
|
|
| 7. |
2549-9112
|
[2] |
SWITCH;PRESSURE
|
|
| 70. |
420-00352D1
|
[1] |
VALVE,SHOCKLESS
|
|
| 71. |
121-00010D1
|
[4] |
NUT
|
|
| 9. |
181-00086D2
|
[1] |
TEE
|
|
