斗山零件查询PILOT PIPING (4) DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
571 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

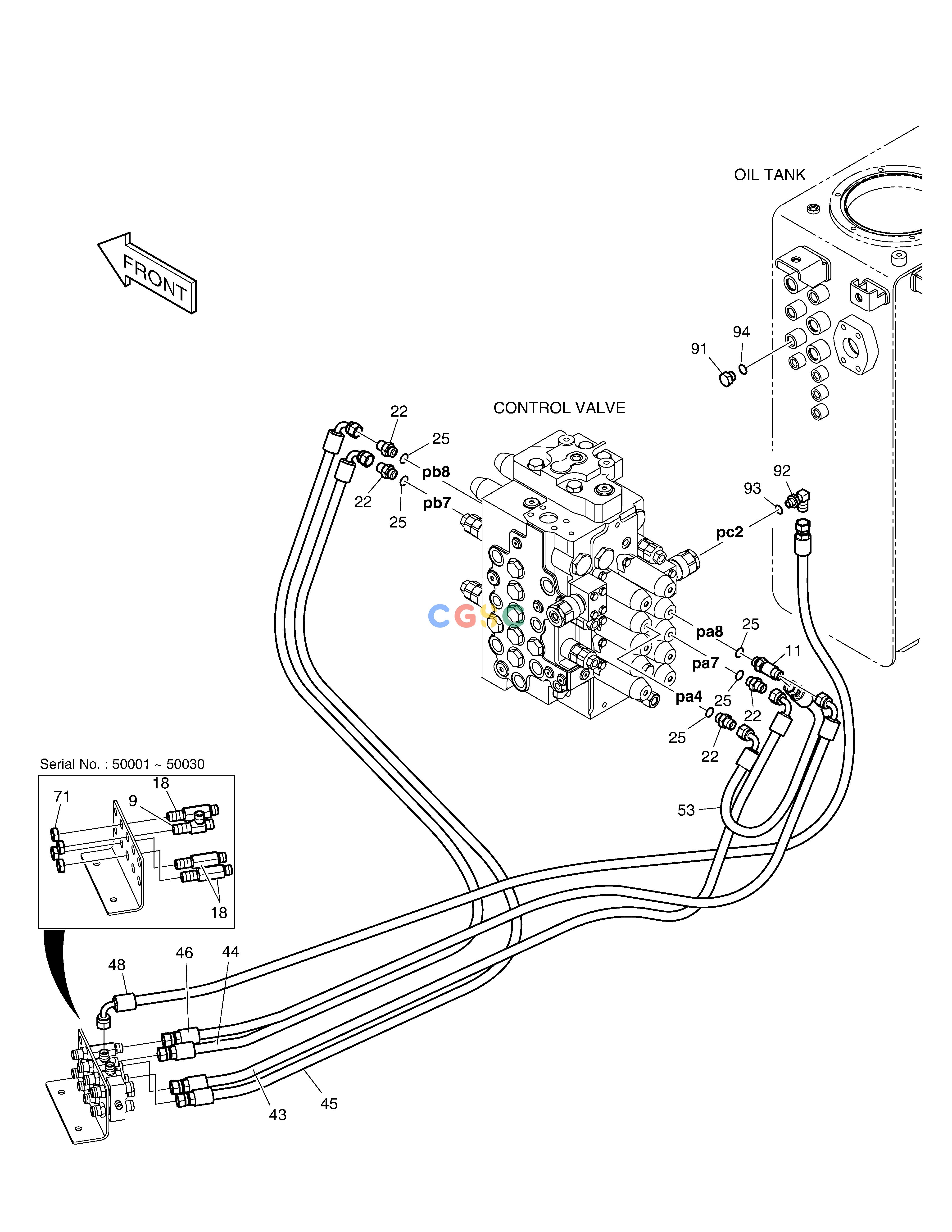

K1017469E
|
[-] |
PILOT PIPING
|
|
| 11. |
2181-1951D16
|
[1] |
TEE
|
|
| 18. |
DS2410009
|
[3] |
ADAPTER
|
|
| 22. |
2181-1126D7
|
[4] |
ADAPTER
|
|
| 25. |
S8000141
|
[5] |
O-RING
|
|
| 43. |
DS2093244
|
[1] |
HOSE
|
|
| 44. |
DS2093066
|
[1] |
HOSE
|
|
| 45. |
DS2093320
|
[1] |
HOSE
|
|
| 46. |
DS2093444
|
[1] |
HOSE
|
|
| 48. |
DS2093245
|
[1] |
HOSE
|
|
| 53. |
DS2093097
|
[1] |
HOSE
|
|
| 71. |
121-00010D1
|
[4] |
NUT
|
|
| 9. |
181-00086D2
|
[1] |
TEE
|
|
| 91. |
2181-1950D2
|
[1] |
PLUG
|
|
| 92. |
2181-1702D3
|
[1] |
ELBOW
|
|
| 93. |
S8000111
|
[1] |
O-RING
|
|
| 94. |
S8000141
|
[1] |
O-RING
|
|
