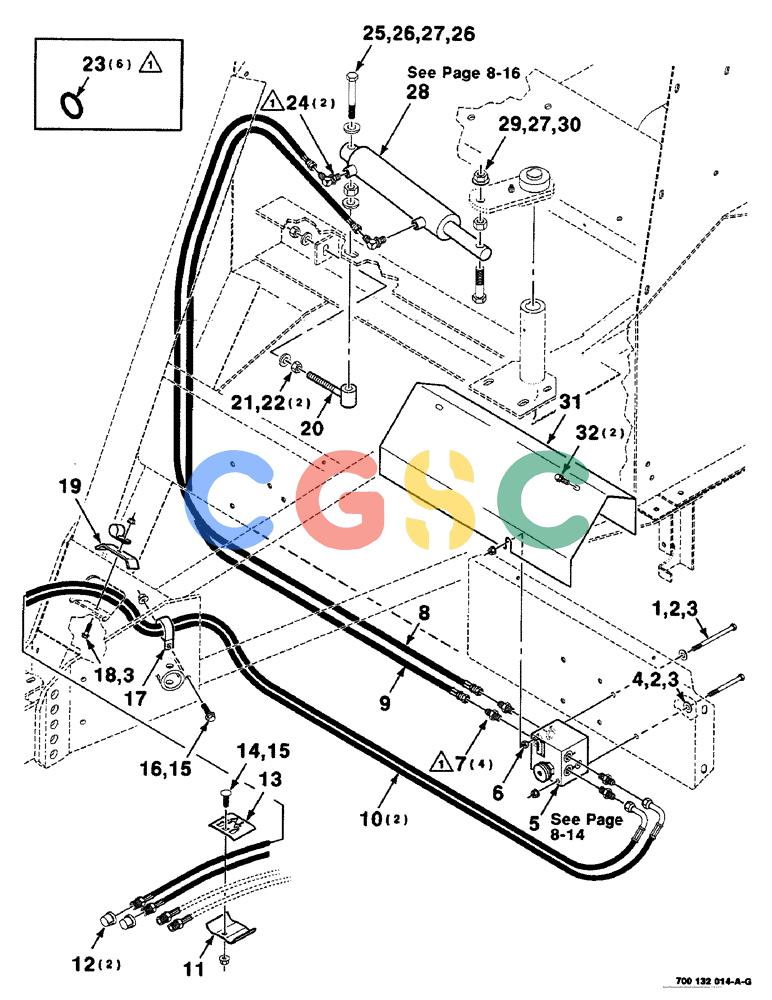

| 1. |
111-232
|
[1] |
CARRIAGE BOLT,Short NK, 5/16"-18 x 4", G2
|
CAS
5/16-18 X 4 C
|
| 2. |
496-21034
|
[2] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 3. |
232-5315
|
[3] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 4. |
413-556
|
[1] |
BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5
|
CAS
5/16-18 X 3-1/2 C Superseded by part number: 86507008
|
| 5. |
700714789
|
[1] |
VALVE
|
CAS
ASSEMBLY - flow control
|
| 6. |
425-105
|
[1] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 7. |
218-5057
|
[4] |
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
|
CAS
CONNECTOR - short str thread (includes item 23) Superseded by part number: 76350
|
| 8. |
700714813
|
[1] |
HYDRAULIC HOSE,0.25" ID x 52.17", SAE J517, SAE J516, SAE J343
|
CAS
HOSE - hydraulic
|
| 9. |
700714814
|
[1] |
HYDRAULIC HOSE,0.25" ID x 61.02", SAE J517, SAE J516, SAE J343
|
CAS
HOSE - hydraulic
|
| 10. |
700714792
|
[2] |
HOSE
|
CAS
- hydraulic
|
| 11. |
700129086
|
[1] |
CLAMP
|
HFI
|
| 12. |
746677
|
[2] |
CAP
|
CAS
- 1/2-14 NPT
|
| 13. |
700129085
|
[1] |
CLAMP
|
CAS
|
| 14. |
433-620
|
[1] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5 Superseded by part number: 86508773
|
| 15. |
232-5316
|
[2] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 16. |
121-237
|
[1] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
3/8-16 X 1-1/4 HFS GR8 Superseded by part number: 87327172
|
| 17. |
755777
|
[1] |
CLAMP
|
CAS
- line Superseded by part number: CAS755777, CAS755777, CUR755777
|
| 18. |
7883358
|
[1] |
SCREW,Hex Washer, 5/16" - 18 x 1 1/2"
|
CAS
5/16-18 X 1-1/2 HWHMS Superseded by part number: 163-56
|
| 19. |
700116123
|
[1] |
CLAMP
|
HFI
- line
|
| 20. |
700132386
|
[1] |
SPECIAL BOLT
|
HFI
DRAWBOLT WA
|
| 21. |
425-108
|
[2] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, , Hex 1/2"-13, G5 Superseded by part number: 280431
|
| 22. |
705541
|
[2] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
1/2 HARDENED PLAIN WASHER
|
| 23. |
738468
|
[6] |
O-RING
|
IH
|
| 24. |
218-51-5
|
[2] |
ELBOW - str thread 90 degrees (includes item 23)
|
|
| 25. |
700711989
|
[1] |
BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8
|
CAS
5/8-11 X 4-1/2 C, special
|
| 26. |
396-21066
|
[2] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN Superseded by part number: 87613283
|
| 27. |
425-1010
|
[2] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 28. |
700712122
|
[1] |
CYLINDER
|
CAS
ASSEMBLY - hydraulic
|
| 29. |
413-1044
|
[1] |
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
|
CAS
5/8-11 X 2-3/4 C Superseded by part number: 88693
|
| 30. |
232-53110
|
[1] |
FLANGE NUT,Flg, 5/8"-11
|
CAS
5/8-11 HFTLN GR/G Superseded by part number: 84180923
|
| 31. |
700132385
|
[1] |
SHIELD
|
HFI
|
| 32. |
172463
|
[2] |
SELF-TAP SCREW,Hex Hd, 5/16" x 1"
|
CAS
5/16-18 X 3/4 HWHTCTS TYPE D
|
