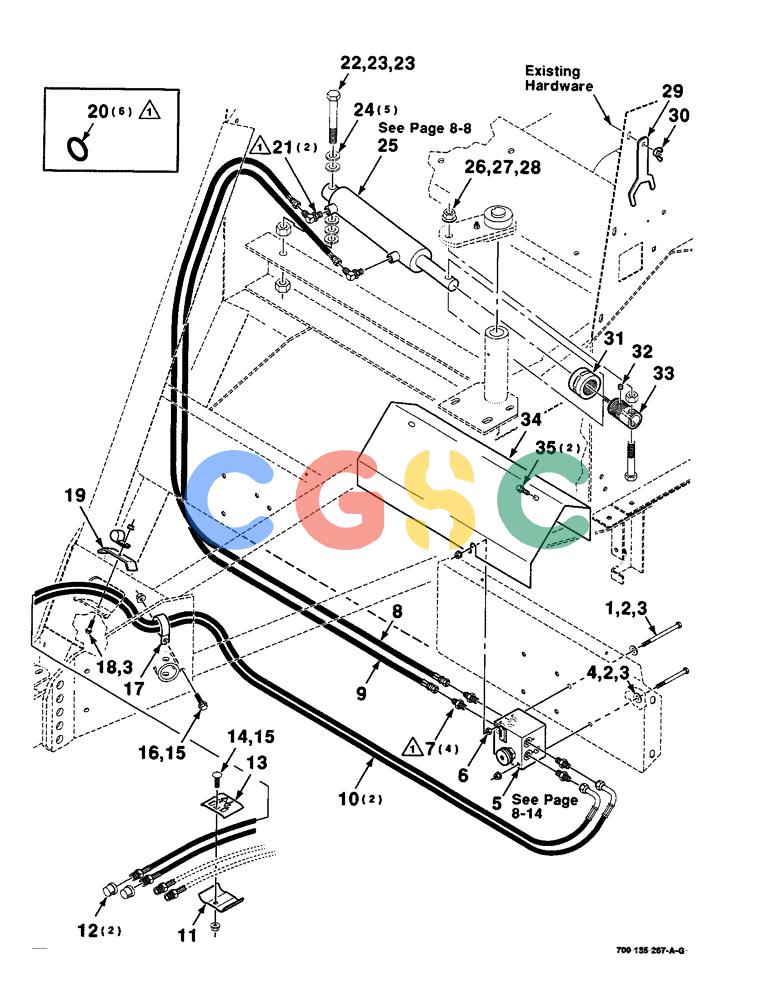

| 1. |
111-232
|
[1] |
CARRIAGE BOLT,Short NK, 5/16"-18 x 4", G2
|
CAS
5/16-18 X 4 C
|
| 2. |
496-21034
|
[2] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 3. |
232-5315
|
[3] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 4. |
413-556
|
[1] |
BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5
|
CAS
5/16-18 X 3-1/2 C Superseded by part number: 86507008
|
| 5. |
700714789
|
[1] |
VALVE
|
CAS
ASSEMBLY - flow control
|
| 6. |
425-105
|
[1] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 7. |
218-5057
|
[4] |
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
|
CAS
CONNECTOR - short str thread (includes item 20) Superseded by part number: 76350
|
| 8. |
700714813
|
[1] |
HYDRAULIC HOSE,0.25" ID x 52.17", SAE J517, SAE J516, SAE J343
|
CAS
HOSE - hydraulic
|
| 9. |
700714814
|
[1] |
HYDRAULIC HOSE,0.25" ID x 61.02", SAE J517, SAE J516, SAE J343
|
CAS
HOSE - hydraulic
|
| 10. |
700714792
|
[2] |
HOSE
|
CAS
- hydraulic
|
| 11. |
700129086
|
[1] |
CLAMP
|
HFI
|
| 12. |
746677
|
[2] |
CAP
|
CAS
- 1/2-14 NPT
|
| 13. |
700129085
|
[1] |
CLAMP
|
CAS
|
| 14. |
433-620
|
[1] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5 Superseded by part number: 86508773
|
| 15. |
232-5316
|
[2] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 16. |
121-237
|
[1] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
3/8-16 X 1-1/4 HFS GR8 Superseded by part number: 87327172
|
| 17. |
CUR755777
|
[1] |
PULLEY
|
CUR
- line
|
| 18. |
7883358
|
[1] |
SCREW,Hex Washer, 5/16" - 18 x 1 1/2"
|
CAS
5/16-18 X 1-1/2 HWHMS Superseded by part number: 163-56
|
| 19. |
700116123
|
[1] |
CLAMP
|
HFI
- line
|
| 20. |
738468
|
[6] |
O-RING
|
IH
|
| 21. |
218-5105
|
[2] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
- str thread 90 degrees (includes item 20) Superseded by part number: 76344, 72186128
|
| 22. |
413-1264
|
[1] |
BOLT,Hex, 3/4" - 10 x 4", Gr 5
|
CAS
3/4-10 X 4 C Superseded by part number: 280210
|
| 23. |
425-1012
|
[2] |
NUT,3/4"-10, G5
|
CAS
3/4-10 H Superseded by part number: 280954
|
| 24. |
705566
|
[5] |
WASHER
|
IH
3/4 HARDENED PLAIN WASHER
|
| 25. |
700714707
|
[1] |
CYLINDER
|
CAS
ASSEMBLY - hydraulic
|
| 26. |
413-1056
|
[1] |
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
|
CAS
Superseded by part number: 280119
|
| 27. |
425-1010
|
[1] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 28. |
232-53110
|
[1] |
FLANGE NUT,Flg, 5/8"-11
|
CAS
5/8-11 HFTLN GR/G Superseded by part number: 84180923
|
| 29. |
700135666
|
[1] |
SPECIAL WRENCH
|
HFI
WRENCH
|
| 30. |
129-410
|
[1] |
WING NUT,3/8"-16
|
CAS
3/8-16 WING NUT GR 2
|
| 31. |
700135810
|
[1] |
NUT
|
HFI
- cylinder stop Superseded by part number: 700162184
|
| 32. |
700716646
|
[1] |
STOP
|
CAS
|
| 33. |
700135809
|
[1] |
STOP
|
HFI
- cylinder
|
| 34. |
700132385
|
[1] |
SHIELD
|
HFI
|
| 35. |
172463
|
[2] |
SELF-TAP SCREW,Hex Hd, 5/16" x 1"
|
CAS
5/16-18 X 3/4 HWHTCTS TYPE D
|
