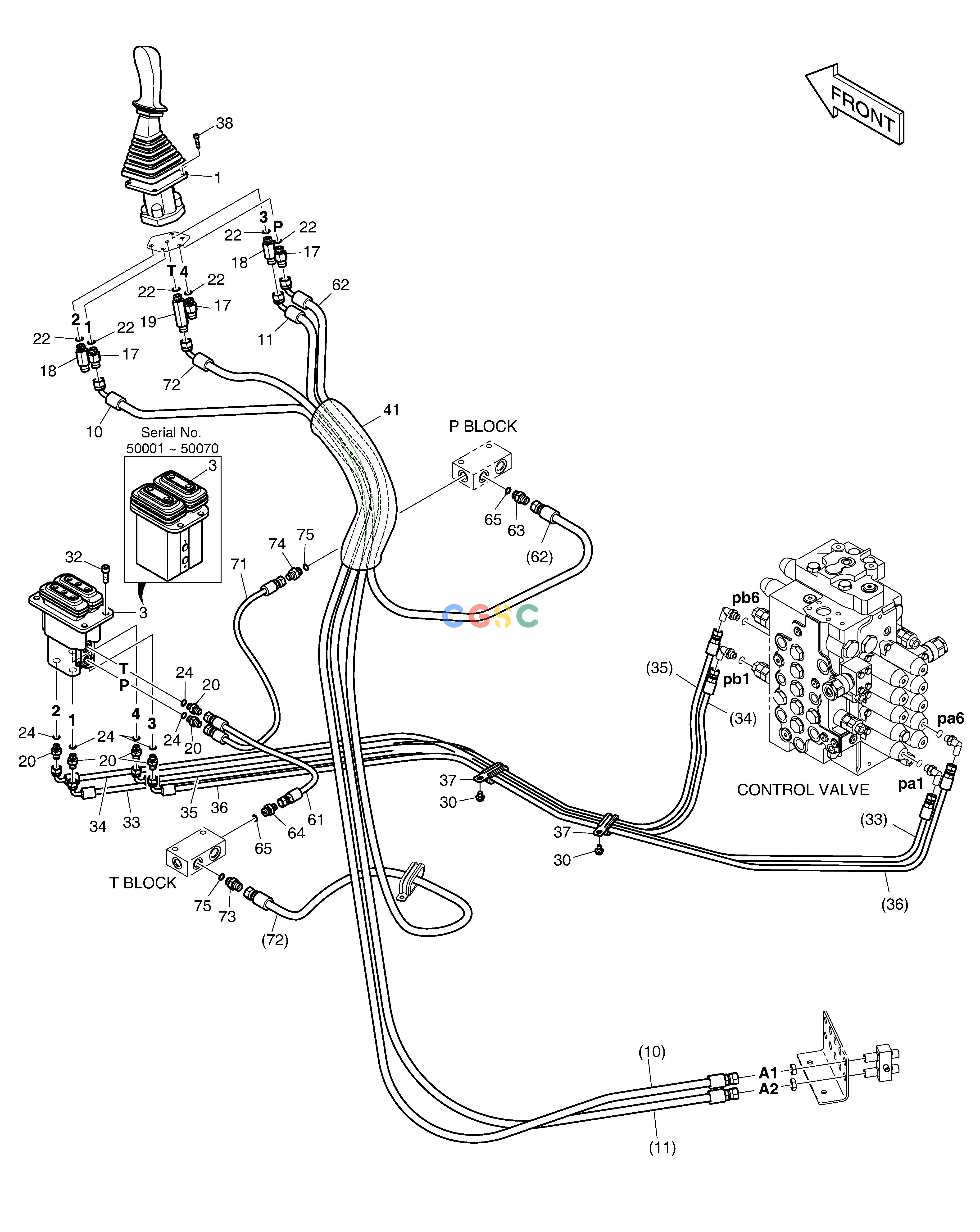

斗山零件查询PILOT PIPING (6) DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
978 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1017638E
|
[-] |
|
|
| 1. |
K1000556G
|
[1] |
VALVE;REMOCON(L.H)
|
K1000556H
|
| 1. |
K1000556H
|
[1] |
VALVE;REMOCON(L.H)
|
|
| 10. |
DS2095002
|
[1] |
HOSE
|
|
| 11. |
DS2095002
|
[1] |
HOSE
|
|
| 17. |
DS2213165
|
[3] |
ADAPTER
|
|
| 18. |
2181-1126D27
|
[2] |
ADAPTER
|
|
| 19. |
2181-1126D28
|
[1] |
ADAPTER
|
|
| 20. |
2181-1126D14
|
[6] |
ADAPTER
|
|
| 22. |
S8000141
|
[6] |
O-RING
|
|
| 24. |
S8000111
|
[6] |
O-RING
|
|
| 3. |
420-00467
|
[1] |
VALVE;PEDAL
|
|
| 3. |
420-00467A
|
[1] |
VALVE,PEDAL
|
|
| 30. |
K1001029
|
[2] |
BOLT
|
|
| 32. |
S2212266
|
[4] |
BOLT
|
|
| 33. |
DS2093073
|
[1] |
HOSE
|
|
| 34. |
DS2093052
|
[1] |
HOSE
|
|
| 35. |
DS2093052
|
[1] |
HOSE
|
|
| 36. |
DS2093190
|
[1] |
HOSE
|
|
| 37. |
124-00209D3
|
[2] |
CLIP
|
|
| 38. |
S2205066
|
[4] |
BOLT
|
|
| 41. |
K1003945
|
[1] |
PROTECTOR
|
|
| 61. |
DS2094006
|
[1] |
HOSE
|
|
| 62. |
DS2095003
|
[1] |
HOSE
|
|
| 63. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 64. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 65. |
S8000141
|
[2] |
O-RING
|
|
| 71. |
DS2094006
|
[1] |
HOSE
|
|
| 72. |
DS2095004
|
[1] |
HOSE
|
|
| 73. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 74. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 75. |
S8000141
|
[2] |
O-RING
|
|
