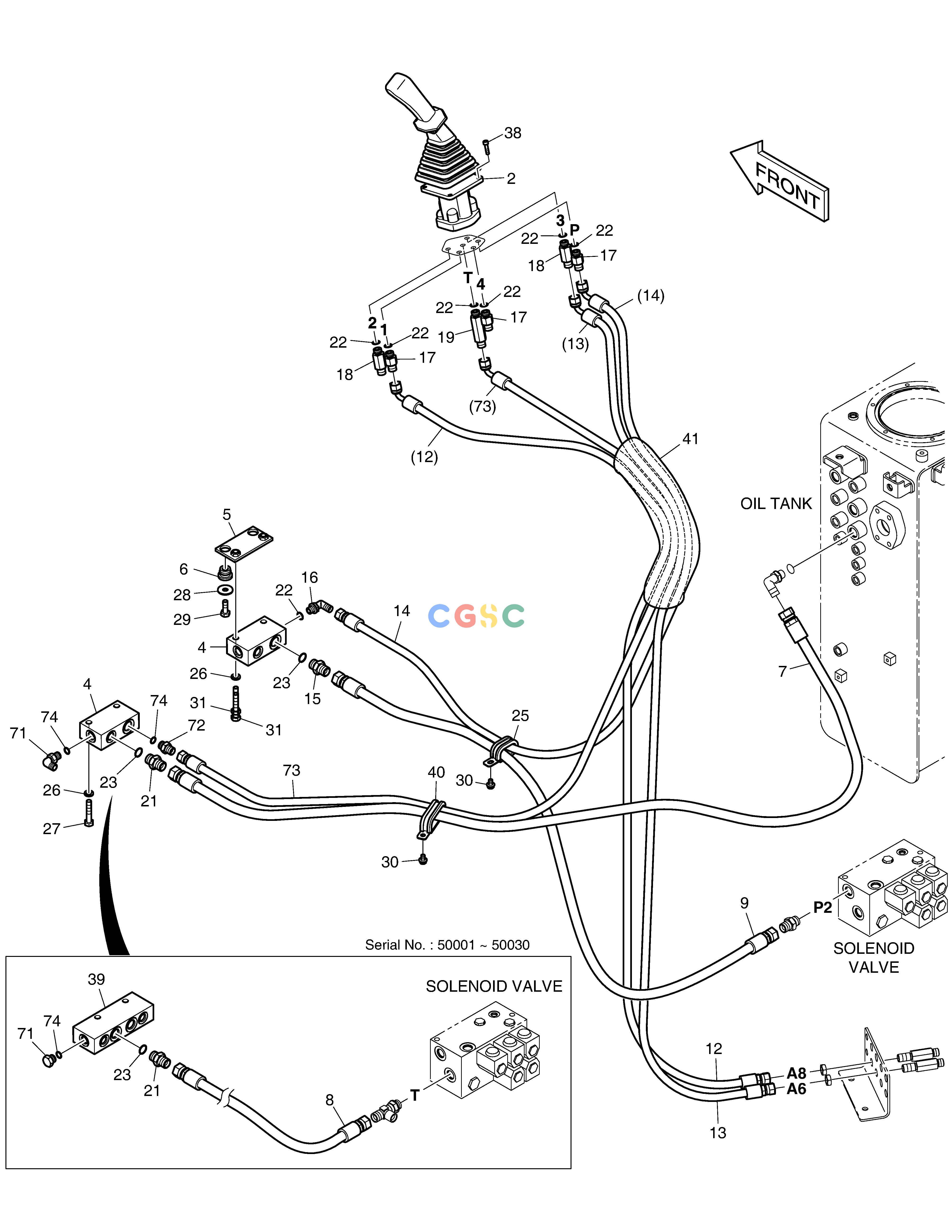

斗山零件查询PILOT PIPING (7) DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
793 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1017638E
|
[-] |
|
|
| 12. |
DS2095001
|
[1] |
HOSE
|
|
| 13. |
DS2095001
|
[1] |
HOSE
|
|
| 14. |
DS2095002
|
[1] |
HOSE
|
|
| 15. |
2471-1135
|
[1] |
FILTER
|
|
| 16. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 17. |
DS2213165
|
[3] |
ADAPTER
|
|
| 18. |
2181-1126D27
|
[2] |
ADAPTER
|
|
| 19. |
2181-1126D28
|
[1] |
ADAPTER
|
|
| 2. |
K1000555G
|
[1] |
VALVE;REMOCON(R.H)
|
K1000555H
|
| 2. |
K1000555H
|
[1] |
VALVE;REMOCON(R.H)
|
|
| 21. |
2181-1126D6
|
[2] |
ADAPTER
|
|
| 21. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 22. |
S8000141
|
[7] |
O-RING
|
|
| 23. |
S8000181
|
[3] |
O-RING
|
|
| 23. |
S8000181
|
[2] |
O-RING
|
|
| 25. |
124-00209D2
|
[1] |
CLIP
|
|
| 26. |
2114-2031D5
|
[4] |
WASHER
|
|
| 27. |
S0558666
|
[2] |
BOLT
|
|
| 28. |
2114-1058D10
|
[2] |
WASHER
|
|
| 29. |
S0512266
|
[2] |
BOLT
|
|
| 30. |
K1001029
|
[2] |
BOLT
|
|
| 31. |
S0558766
|
[2] |
BOLT
|
|
| 38. |
S2205066
|
[4] |
BOLT
|
|
| 39. |
K1007042
|
[1] |
BLOCK
|
|
| 4. |
2423-1470
|
[1] |
BLOCK
|
|
| 4. |
2423-1470
|
[2] |
BLOCK
|
|
| 40. |
124-00209D8
|
[1] |
CLIP
|
|
| 41. |
K1003945
|
[1] |
PROTECTOR
|
|
| 5. |
621-02151
|
[1] |
PLATE
|
|
| 6. |
198-00016
|
[2] |
RUBBER
|
|
| 7. |
DS2053897
|
[1] |
HOSE
|
|
| 71. |
2181-1950D2
|
[1] |
PLUG
|
|
| 71. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 72. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 73. |
DS2095003
|
[1] |
HOSE
|
|
| 74. |
S8000141
|
[2] |
O-RING
|
|
| 8. |
DS2053399
|
[1] |
HOSE
|
|
| 9. |
DS2053852
|
[1] |
HOSE
|
|
