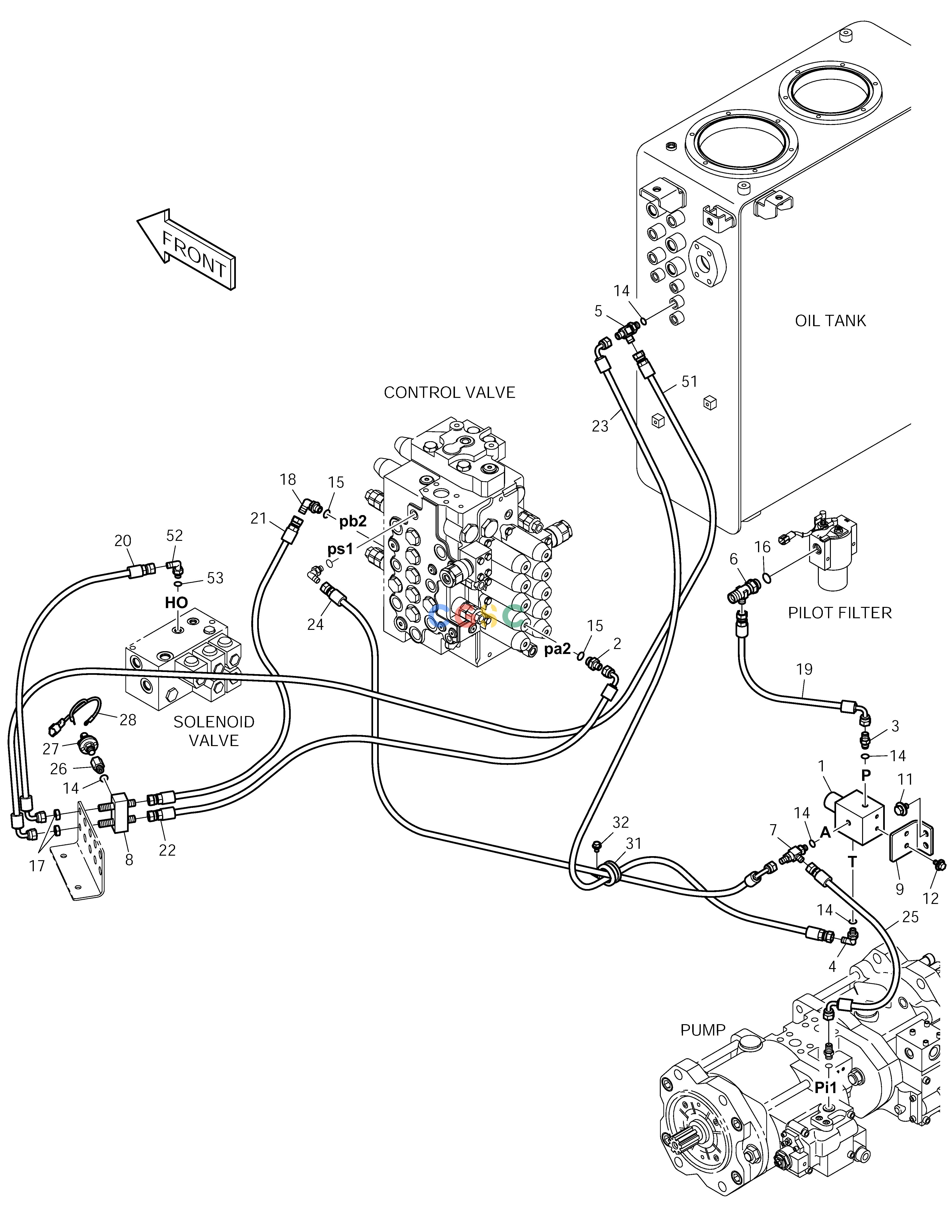

斗山零件查询PILOT PIPING - ONE WAY DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
405 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1017476B
|
[-] |
PILOT PIPING;ONE WAY(PE3C)
|
|
| 1. |
426-00266
|
[1] |
VALVE;EPPR
|
|
| 11. |
DS0025013
|
[2] |
BOLT
|
|
| 12. |
DS0025033
|
[2] |
BOLT
|
|
| 14. |
S8000111
|
[5] |
O-RING
|
|
| 15. |
S8000141
|
[2] |
O-RING
|
|
| 16. |
S8000181
|
[1] |
O-RING
|
|
| 17. |
121-00010D7
|
[2] |
NUT
|
|
| 18. |
2181-1702D10
|
[1] |
ELBOW
|
|
| 19. |
DS2093123
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 2. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 20. |
DS2093430
|
[1] |
HOSE
|
|
| 21. |
DS2094184
|
[1] |
HOSE
|
|
| 22. |
DS2093193
|
[1] |
HOSE
|
|
| 23. |
DS2093142
|
[1] |
HOSE
|
|
| 24. |
DS2093126
|
[1] |
HOSE
|
|
| 25. |
DS2093006
|
[1] |
HOSE
|
|
| 26. |
DS2242017
|
[1] |
REDUCER
|
|
| 27. |
549-00010
|
[1] |
SWITCH;PRESSURE
|
|
| 28. |
530-00067
|
[1] |
HARNESS
|
|
| 3. |
2471-1133
|
[1] |
FILTER;ADAPTER
|
|
| 31. |
124-00208D5
|
[1] |
CLIP
|
|
| 32. |
K1001029
|
[1] |
BOLT
|
|
| 4. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 5. |
2181-1951D1
|
[1] |
TEE
|
|
| 51. |
DS2093117
|
[1] |
HOSE
|
|
| 52. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 53. |
S8000111
|
[1] |
O-RING
|
|
| 6. |
2181-1951D19
|
[1] |
TEE
|
|
| 7. |
181-00779
|
[1] |
TEE
|
|
| 8. |
420-00476
|
[1] |
VALVE;SHUTTLE
|
|
| 9. |
195-02711B
|
[1] |
BRACKET
|
|
