斗山零件查询PUMP INSTALLATION DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
616 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1019039A
|
[-] |

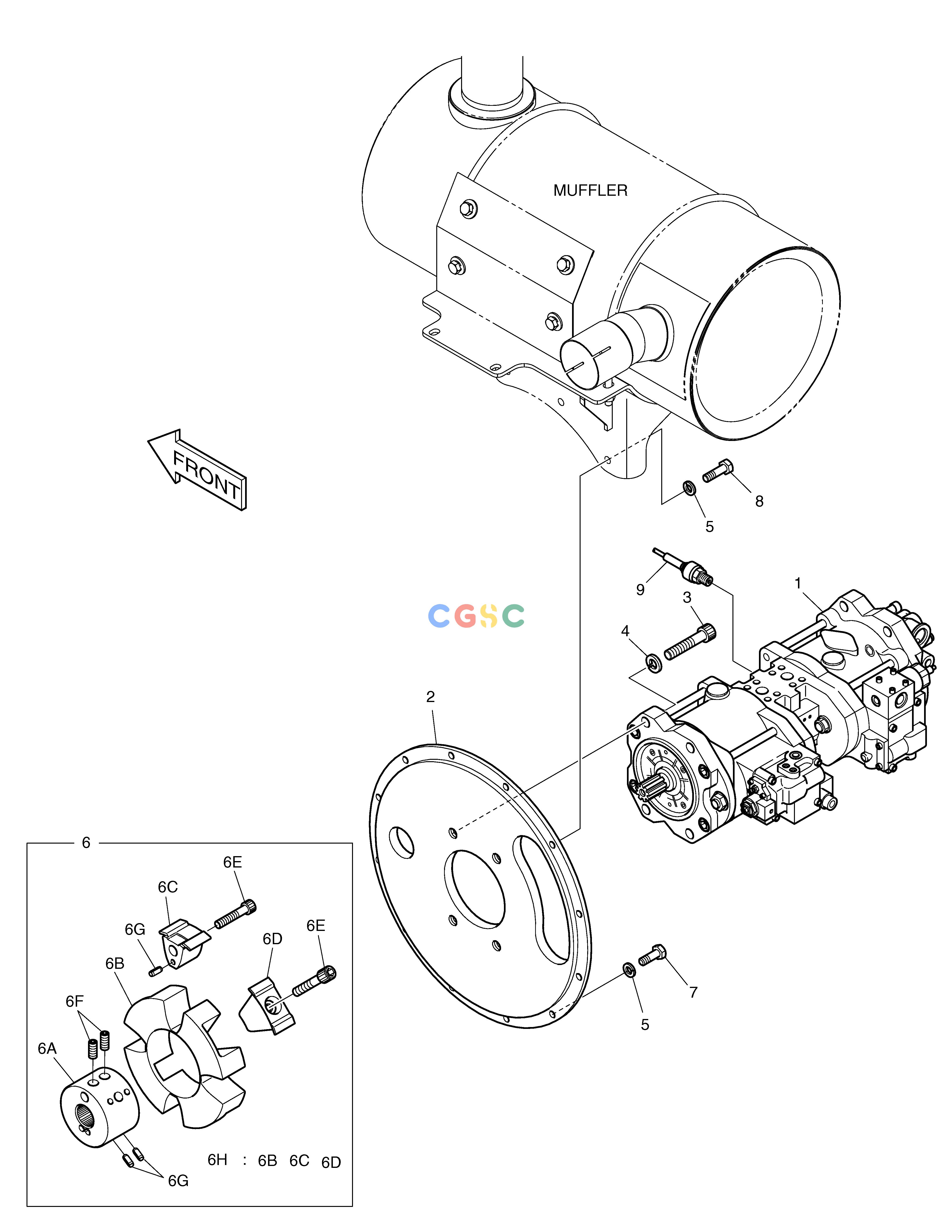

PUMP INSTALLATION
|
|
| 1. |
K1024107A
|
[1] |
MAIN PUMP
|
|
| 2. |
2229-1063A
|
[1] |
COVER
|
|
| 3. |
S2221566
|
[4] |
BOLT
|
|
| 4. |
K1026273
|
[4] |
WASHER;HARD
|
|
| 5. |
120804-00070
|
[12] |
WASHER
|
|
| 6. |
2414-9009A
|
[1] |
COUPLING
|
|
| 6A. |
NA00546
|
[1] |
HUB
|
|
| 6B. |
2474-7009
|
[1] |
ELEMENT
|
|
| 6C. |
NA00559
|
[4] |
. INSERT
|
|
| 6D. |
NA00561
|
[4] |
. INSERT
|
|
| 6E. |
K9000422
|
[1] |
SOCKET BOLT SET(8EA)
|
|
| 6F. |
NA00142
|
[2] |
|
|
| 6G. |
NA00781
|
[12] |
|
|
| 6H. |
2474-7009K
|
[1] |
ELEMENT KIT
|
|
| 7. |
S0558266
|
[9] |
BOLT
|
|
| 8. |
S0558366
|
[3] |
BOLT M10X1.5X40
|
|
| 9. |
2547-9045
|
[2] |
SENSOR;PRESSURE
|
|
