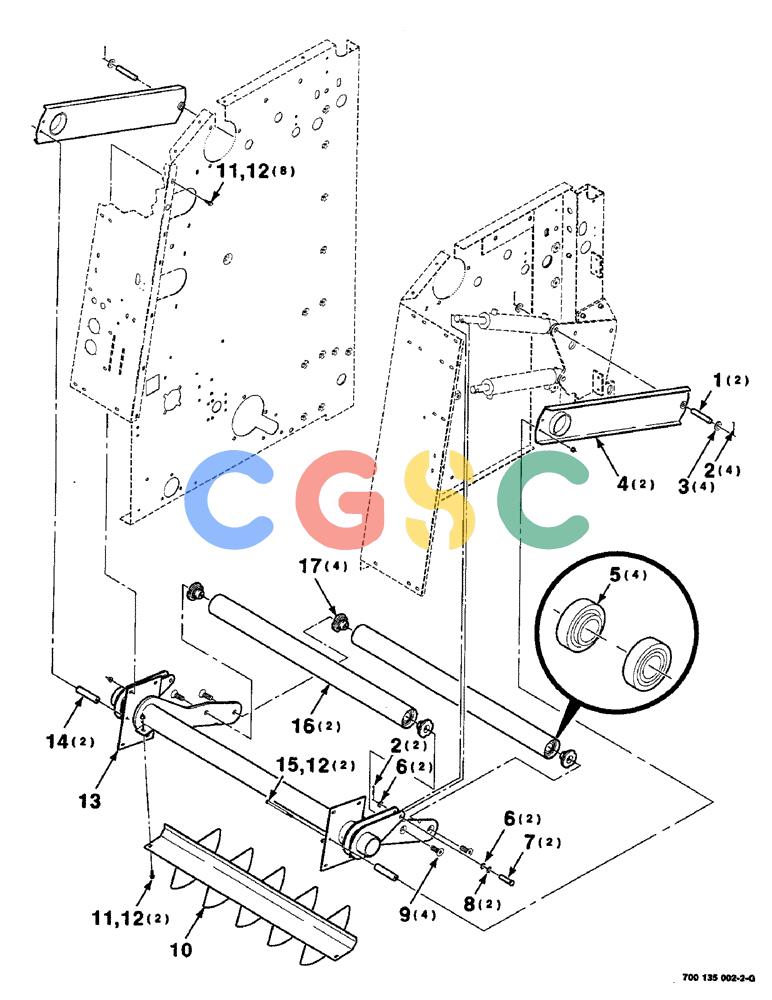

凯斯零件查询(8435) - CASE IH SILAGE SPECIAL ROUND BALER (1/97-12/00) (6-08) - BELT TENSIONING ASSEMBLY, UPPER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
241 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700132379
|
[2] |
PIN
|
HFI
|
| 2. |
432-1020
|
[6] |
COTTER PIN,5/32" x 1 1/4"
|
CAS
PIN, SPLIT (COTTER), 5/32" x 1 1/4" Superseded by part number: 86523851
|
| 3. |
705566
|
[4] |
WASHER
|
IH
3/4 HARDENED PLAIN WASHER
|
| 4. |
700132374
|
[2] |
SUPPORT
|
HFI
WA - upper
|
| 5. |
8050825
|
[4] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
- cylindrical Superseded by part number: F82059
|
| 6. |
52175
|
[4] |
BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L
|
CAS
5/8 X 18 GAUGE NRMB
|
| 7. |
700716026
|
[2] |
PIN
|
CAS
5/8 X 2-1/4 CLEVIS PIN
|
| 8. |
52233
|
[2] |
BUSHING
|
CAS
5/8 X 14 GAUGE NRMB Superseded by part number: 51200381
|
| 9. |
700707981
|
[4] |
SCREW,FLAT, 3/4" - 10 x 1-3/4"
|
L
3/4-10 X 1-3/4 HSFCHCS, special
|
| 10. |
700135122
|
[1] |
GUIDE
|
HFI
WA - belt
|
| 11. |
700711084
|
[10] |
BOLT
|
CAS
3/8-16 X 1-1/2 HFS GR8
|
| 12. |
232-5316
|
[12] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 13. |
700135118
|
[1] |
ARM
|
HFI
WA - upper
|
| 14. |
700132383
|
[2] |
SPACER
|
HFI
|
| 15. |
413-688
|
[2] |
BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5
|
CAS
3/8-16 X 5-1/2 C Superseded by part number: 20304
|
| 16. |
700107934
|
[2] |
ROLL
|
IH
ER ASSEMBLY (includes item 5)
|
| 17. |
700100927
|
[4] |
HUB
|
L
|
