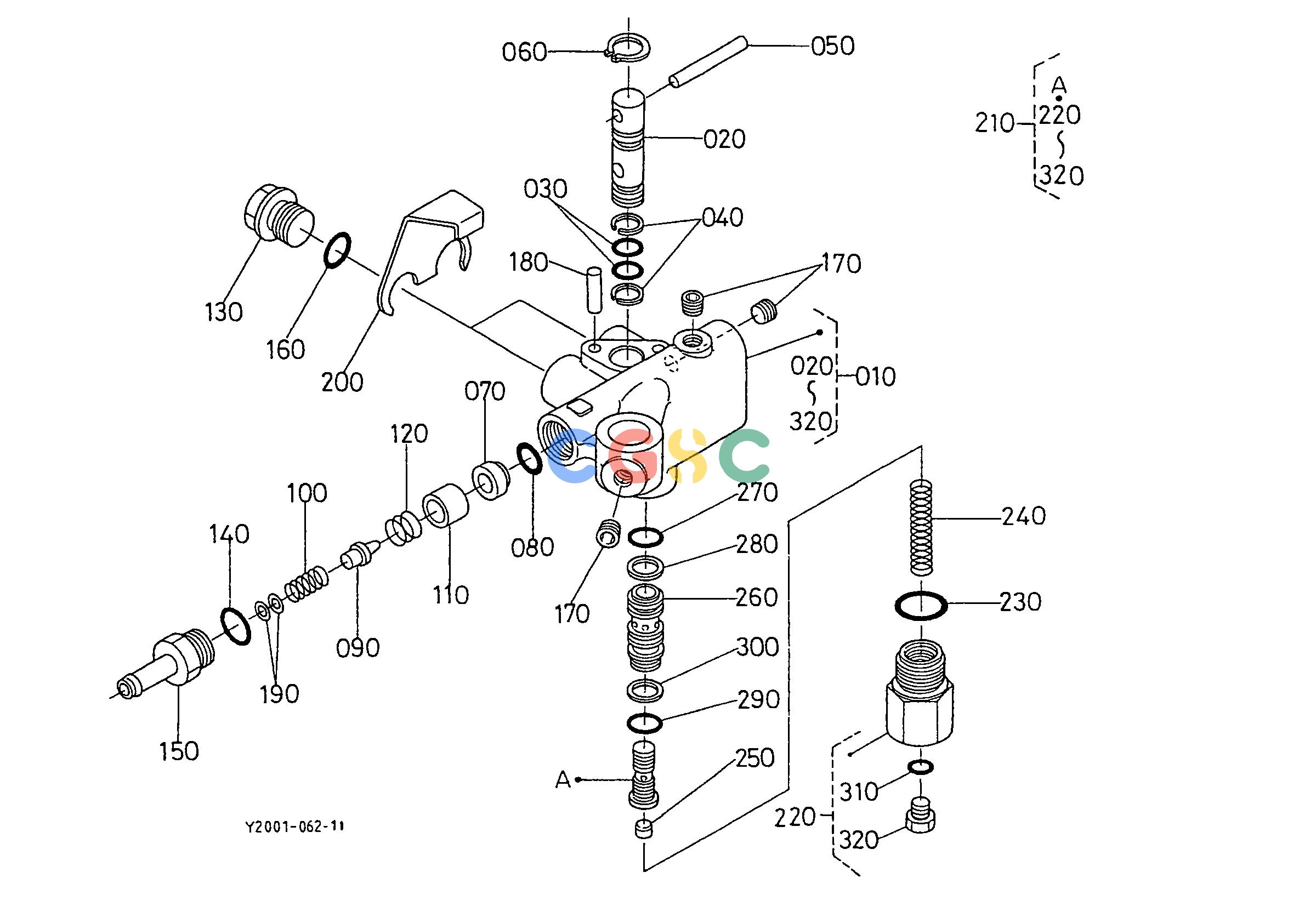

久保田零件查询T10102 HYDRAULIC BLOCK (PS) [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
515 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641636300
|
[1] |
ASSY VALVE HYD.CHANG
|
4.4000(lbs); 2.000
|
| 020. |
6740136320
|
[1] |
VALVE CHANGE
|
0.1760(lbs); 0.080
|
| 030. |
0481100120
|
[2] |
RING
|
0.0022(lbs); 0.001
|
| 040. |
6855161420
|
[2] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 050. |
0501200650
|
[1] |
PIN STRAIGHT
|
0.0220(lbs); 0.010
|
| 060. |
0461200160
|
[2] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 070. |
6711137320
|
[1] |
SEAT VALVE
|
0.0220(lbs); 0.010
|
| 080. |
0481100120
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 090. |
6711137330
|
[1] |
POPPET
|
0.0176(lbs); 0.008
|
| 100. |
6711137360
|
[1] |
SPRING RELIEF
|
0.0220(lbs); 0.010
|
| 110. |
6740136340
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
| 120. |
6740136350
|
[1] |
SPRING
|
0.0088(lbs); 0.004
|
| 130. |
6740136360
|
[2] |
PLUG
|
0.1034(lbs); 0.047
|
| 140. |
0481100180
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 150. |
6740136370
|
[1] |
PLUG
|
0.1034(lbs); 0.047
|
| 160. |
0481100140
|
[2] |
RING
|
0.0022(lbs); 0.001
|
| 170. |
6751136640
|
[3] |
PLUG
|
0.0066(lbs); 0.003
|
| 180. |
0501200620
|
[2] |
PIN STRAIGHT
|
0.0110(lbs); 0.005
|
| 190. |
6711137530
|
[1] |
SHIM ADJUSTING
|
0.0022(lbs); 0.001
|
| 190. |
6711137580
|
[1] |
SHIM ADJUSTING
|
0.0022(lbs); 0.001
|
| 200. |
6740136380
|
[1] |
INTERLOCKER
|
0.0550(lbs); 0.025
|
| 210. |
6781738300
|
[1] |
ASSY DIVIDER
|
0.4400(lbs); 0.200
|
| 220. |
6781738390
|
[1] |
DIVIDER
|
0.3124(lbs); 0.142
|
| 230. |
0481100220
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 240. |
6781038320
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 250. |
6781038340
|
[1] |
DAMPER
|
0.0022(lbs); 0.001
|
| 260. |
6781038350
|
[1] |
DIVIDER
|
0.0550(lbs); 0.025
|
| 270. |
0481105130
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 280. |
6781038360
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 290. |
0481105150
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 300. |
6781038370
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 310. |
0481100050
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 320. |
6781038430
|
[1] |
PLUG
|
0.0110(lbs); 0.005
|
