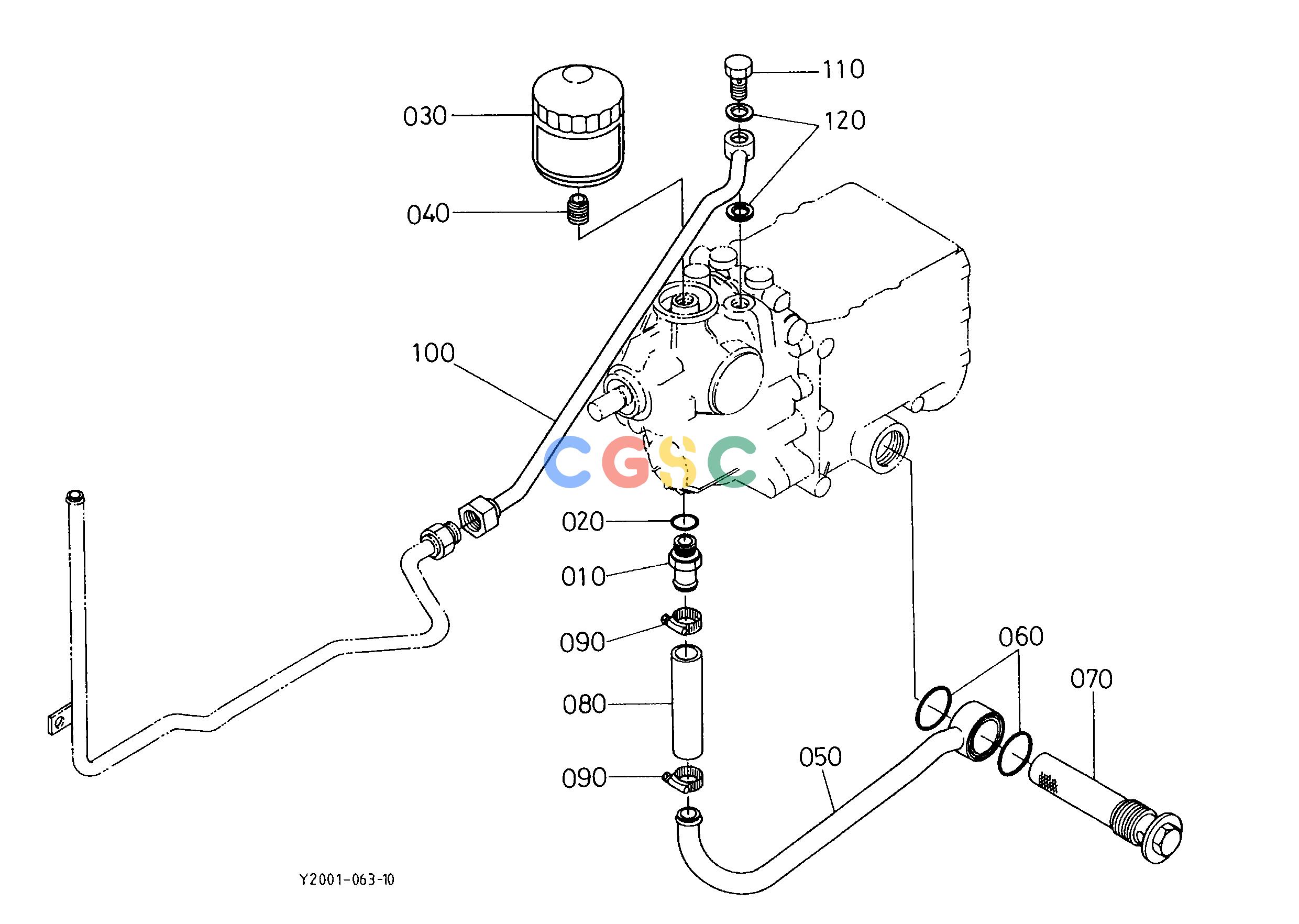

久保田零件查询T10200 HYDRAULIC PIPE (HST) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
414 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6620436150
|
[1] |
JOINT INLET
|
0.1540(lbs); 0.070
|
| 020. |
0481100180
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 030. |
6602136060
|
[1] |
CARTRIDGE OIL FILTER
|
0.8580(lbs); 0.390
|
| 030. |
HH66036060
|
[1] |
CARTRIDGE OIL FILTER
|
0.8580(lbs); 0.390
|
| 040. |
6620436170
|
[1] |
JOINT FILTER
|
0.0396(lbs); 0.018
|
| 050. |
6620436192
|
[1] |
PIPE INLET
|
0.7480(lbs); 0.340
|
| 060. |
0481106400
|
[2] |
RING
|
0.0022(lbs); 0.001
|
| 070. |
6620436210
|
[1] |
FILTER OIL
|
0.8074(lbs); 0.367
|
| 080. |
6620436220
|
[1] |
HOSE
|
0.1540(lbs); 0.070
|
| 090. |
6620436230
|
[2] |
BAND PIPE
|
0.0440(lbs); 0.020
|
| 090. |
6795536230
|
[2] |
CLAMP
|
0.0506(lbs); 0.023
|
| 100. |
6620436240
|
[1] |
PIPE SUCTION
|
0.7700(lbs); 0.350
|
| 110. |
6659136250
|
[1] |
JOINT
|
0.1760(lbs); 0.080
|
| 120. |
6711137180
|
[2] |
GASKET
|
0.0066(lbs); 0.003
|
