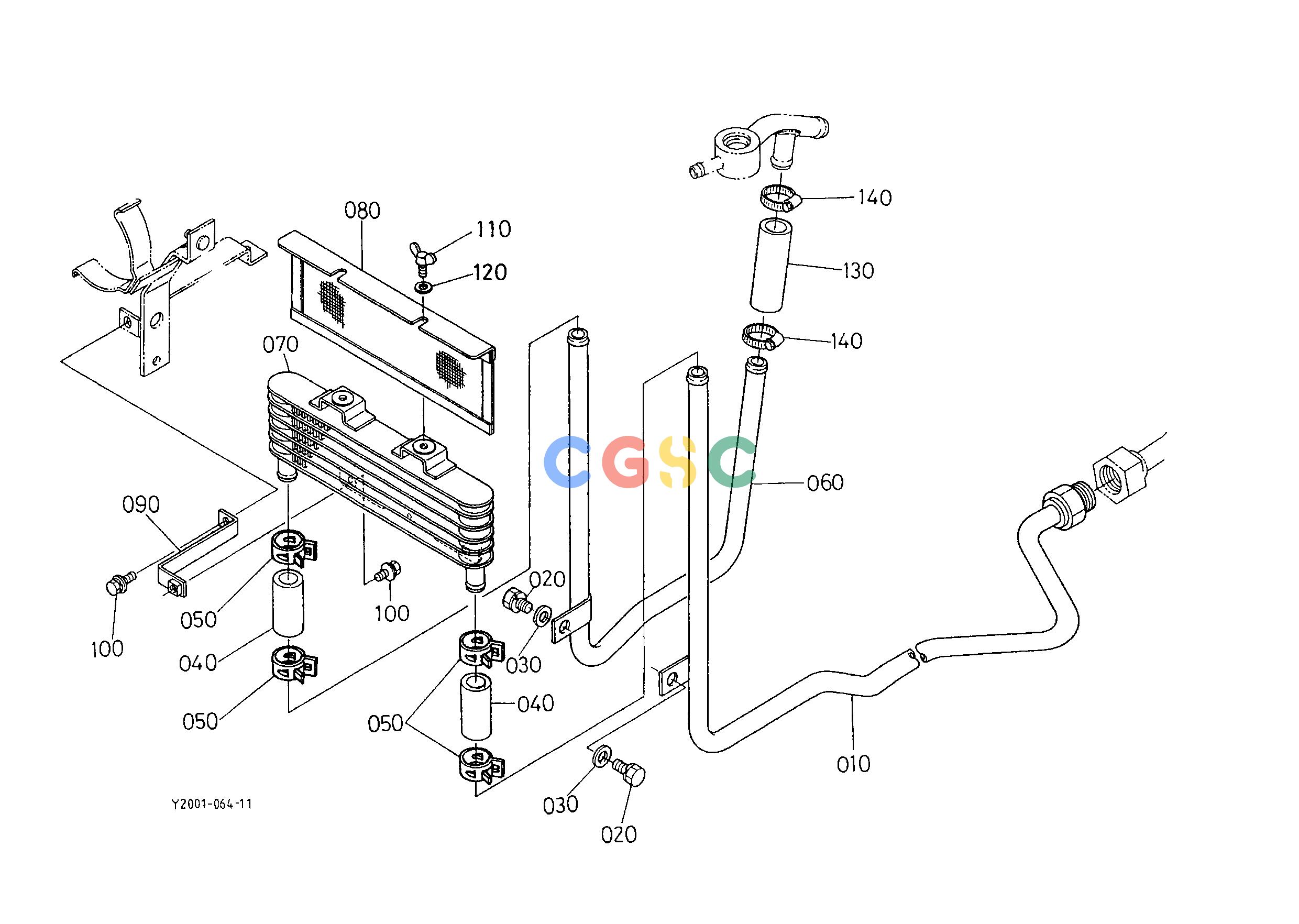

久保田零件查询T10300 OIL COOLER HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
344 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641736260
|
[1] |
PIPE SUCTION
|
1.1220(lbs); 0.510
|
| 020. |
0113351016
|
[2] |
BOLT
|
0.0374(lbs); 0.017
|
| 030. |
0401150100
|
[2] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 040. |
6620436270
|
[2] |
HOSE
|
0.0836(lbs); 0.038
|
| 050. |
6620436280
|
[4] |
BAND PIPE
|
0.0440(lbs); 0.020
|
| 050. |
0931888230
|
[4] |
CLAMP HOSE
|
0.0176(lbs); 0.008
|
| 060. |
6641736240
|
[1] |
PIPE OIL COOLER
|
0.7260(lbs); 0.330
|
| 070. |
6641758720
|
[1] |
ASSY COOLER OIL
|
1.1000(lbs); 0.500
|
| 080. |
6641758730
|
[1] |
NET OIL COOLER
|
0.0440(lbs); 0.020
|
| 090. |
6641758710
|
[1] |
STAY OIL COOLER
|
0.1100(lbs); 0.050
|
| 100. |
0102550616
|
[1] |
BOLT
|
0.0110(lbs); 0.005
|
| 110. |
0181150610
|
[2] |
BOLT WING
|
0.0308(lbs); 0.014
|
| 120. |
0401350060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 130. |
6641736270
|
[1] |
HOSE
|
0.0550(lbs); 0.025
|
| 140. |
6620436280
|
[2] |
BAND PIPE
|
0.0440(lbs); 0.020
|
| 140. |
6798036250
|
[2] |
CLAMP
|
0.0462(lbs); 0.021
|
