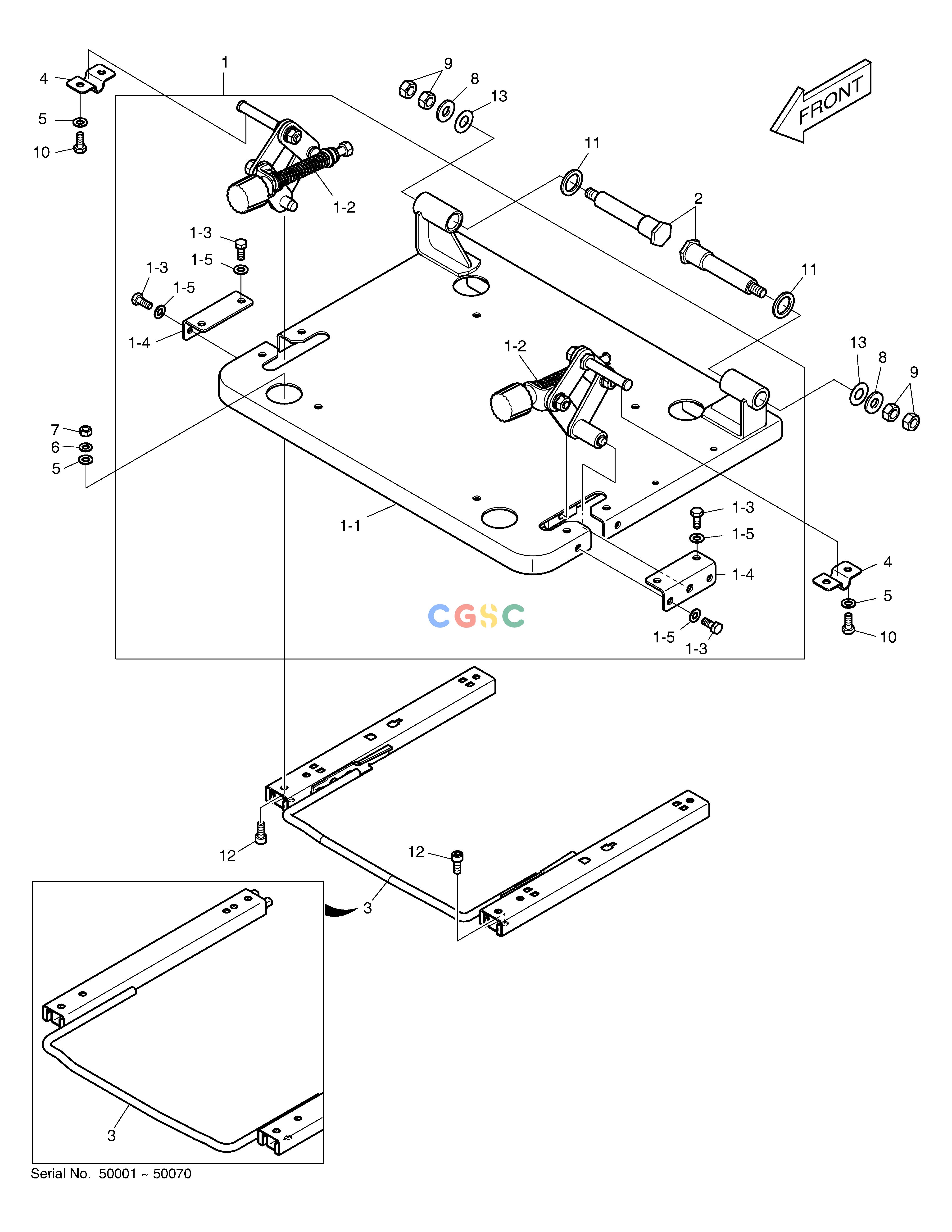

斗山零件查询SEAT SLIDING PLATE DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
717 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002204C
|
[-] |
SEAT PLATE ASS'Y
|
|
| -. |
K1052181
|
[-] |
SEAT PLATE ASS`Y
|
|
| 1. |
621-03011E
|
[1] |
SEAT PLATE ASS`Y
|
|
| 1-1. |
621-02895C
|
[1] |
. PLATE;SEAT MOUNT
|
|
| 1-2. |
195-02904C
|
[1] |
. STAND TILT BRACKET ASS`Y
|
|
| 1-3. |
2120-2166D5
|
[8] |
BOLT
|
|
| 1-4. |
621-02925A
|
[2] |
. PLATE
|
|
| 1-5. |
2114-1898D14
|
[8] |
WASHER
|
|
| 10. |
2120-2166D5
|
[4] |
BOLT
|
|
| 11. |
2114-1898D18
|
[2] |
WASHER
|
|
| 12. |
S2208866
|
[8] |
BOLT
|
|
| 13. |
114-00590
|
[2] |
WASHER
|
|
| 2. |
123-00524B
|
[2] |
PIN
|
|
| 3. |
K1003381
|
[1] |
RAIL
|
K1040096
|
| 3. |
K1040096
|
[1] |
RAIL
|
|
| 4. |
621-03005A
|
[2] |
PLATE
|
|
| 5. |
2114-1898D14
|
[8] |
WASHER
|
|
| 6. |
2114-2031D4
|
[4] |
WASHER
|
|
| 7. |
2121-1311D2
|
[4] |
NUT
|
|
| 8. |
2114-1898D17
|
[2] |
WASHER
|
|
| 9. |
2121-1311D1
|
[4] |
NUT
|
|
