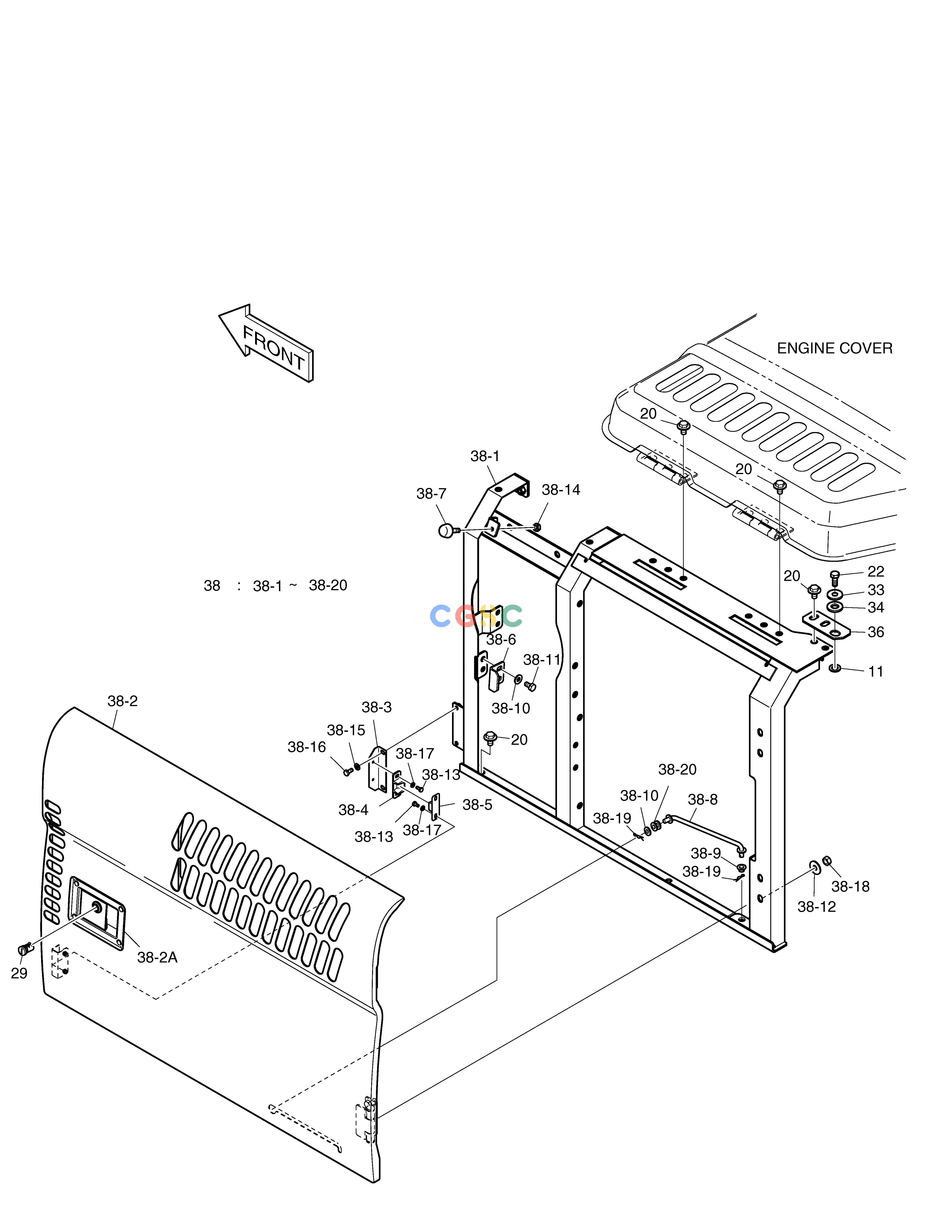

斗山零件查询SIDE DOOR - L.H DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
917 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1018020L
|
[-] |
COVER ASS'Y
|
|
| 11. |
S5010813
|
[1] |
WASHER;PLAIN
|
|
| 20. |
DS0025015
|
[12] |
BOLT
|
|
| 22. |
S0515266
|
[1] |
BOLT
|
|
| 29. |
K1004630
|
[1] |
CYLINDER;KEY
|
|
| 33. |
K1000892
|
[1] |
SPACER
|
|
| 34. |
K1000893
|
[1] |
RUBBER
|
|
| 36. |
K1004300A
|
[1] |
PLATE
|
|
| 38. |
K1027629
|
[1] |
SIDE DOOR ASS'Y(L.H)
|
K1027629A
|
| 38. |
K1027629A
|
[1] |
SIDE DOOR ASS'Y(L.H)
|
|
| 38-1. |
K1027609
|
[1] |
SUPPORT;SIDE DOOR
|
|
| 38-10. |
2114-1058D45
|
[3] |
. WASHER
|
|
| 38-11. |
S0511866
|
[2] |
BOLT
|
|
| 38-12. |
2114-1058D30
|
[4] |
. WASHER
|
|
| 38-13. |
S0504553
|
[4] |
BOLT
|
|
| 38-14. |
S4012633
|
[1] |
NUT
|
|
| 38-15. |
S5010513
|
[2] |
WASHER
|
|
| 38-16. |
S0508766
|
[2] |
BOLT
|
|
| 38-17. |
S5010313
|
[4] |
WASHER
|
|
| 38-18. |
S4012733
|
[4] |
NUT
|
|
| 38-19. |
2705-9002
|
[2] |
PIN
|
|
| 38-2. |
621-02743G
|
[1] |
DOOR;SIDE(L.H)
|
621-02743H
|
| 38-2. |
621-02743H
|
[1] |
DOOR;SIDE
|
|
| 38-20. |
K1008335
|
[1] |
. BUSHING
|
|
| 38-2A. |
125-00035A
|
[1] |
LOCK
|
|
| 38-3. |
2116-1522
|
[1] |
PLATE
|
|
| 38-4. |
2161-9052
|
[1] |
STOPPER;PLATE
|
|
| 38-5. |
2161-9053
|
[1] |
STOPPER;RUBBER
|
|
| 38-6. |
621-02726A
|
[1] |
. PLATE,LOCK
|
|
| 38-7. |
K1001260A
|
[1] |
STOPPER
|
|
| 38-8. |
623-00074B
|
[1] |
. STAY ASSY(R.H)
|
|
| 38-9. |
K1000602
|
[1] |
. BUSHING
|
|
