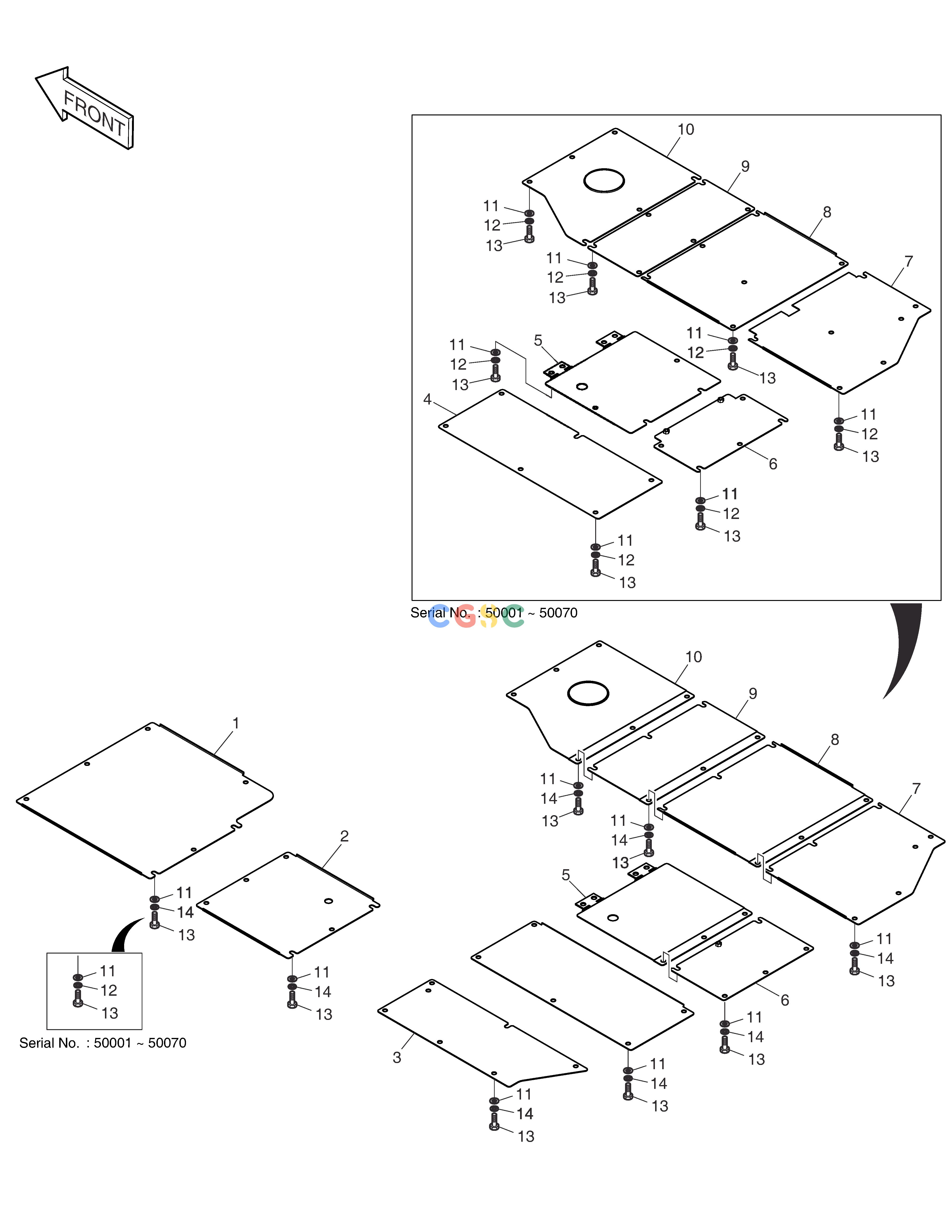

斗山零件查询UNDER COVER DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
290 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1017579G
|
[-] |
UNDER COVER ASS'Y
|
|
| 1. |
K1017580A
|
[1] |
COVER;UNDER
|
|
| 10. |
K1017589A
|
[1] |
COVER;UNDER
|
|
| 10. |
K1017589B
|
[1] |
COVER;UNDER
|
|
| 11. |
DS0401188
|
[62] |
WASHER
|
|
| 11. |
DS0401188
|
[49] |
WASHER
|
|
| 12. |
S5102703
|
[62] |
WASHER
|
|
| 13. |
S0515266
|
[62] |
BOLT
|
|
| 13. |
S0515266
|
[49] |
BOLT
|
|
| 14. |
S5102703
|
[49] |
WASHER
|
|
| 2. |
K1017581
|
[1] |
COVER;UNDER
|
|
| 3. |
K1017582A
|
[1] |
COVER;UNDER
|
|
| 4. |
K1017583B
|
[1] |
COVER;UNDER
|
|
| 4. |
K1017583C
|
[1] |
COVER;UNDER
|
|
| 5. |
K1017584A
|
[1] |
COVER;UNDER
|
|
| 5. |
K1017584B
|
[1] |
COVER;UNDER
|
|
| 6. |
K1017585A
|
[1] |
COVER;UNDER
|
|
| 6. |
K1017585B
|
[1] |
COVER;UNDER
|
|
| 7. |
K1017586A
|
[1] |
COVER;UNDER
|
K1017586B
|
| 7. |
K1017586B
|
[1] |
COVER;UNDER
|
K1017586C
|
| 7. |
K1017586C
|
[1] |
COVER;UNDER
|
|
| 8. |
K1017587
|
[1] |
COVER;UNDER
|
|
| 8. |
K1017587A
|
[1] |
COVER;UNDER
|
|
| 9. |
K1017588
|
[1] |
COVER;UNDER
|
|
| 9. |
K1017588A
|
[1] |
COVER;UNDER
|
|
