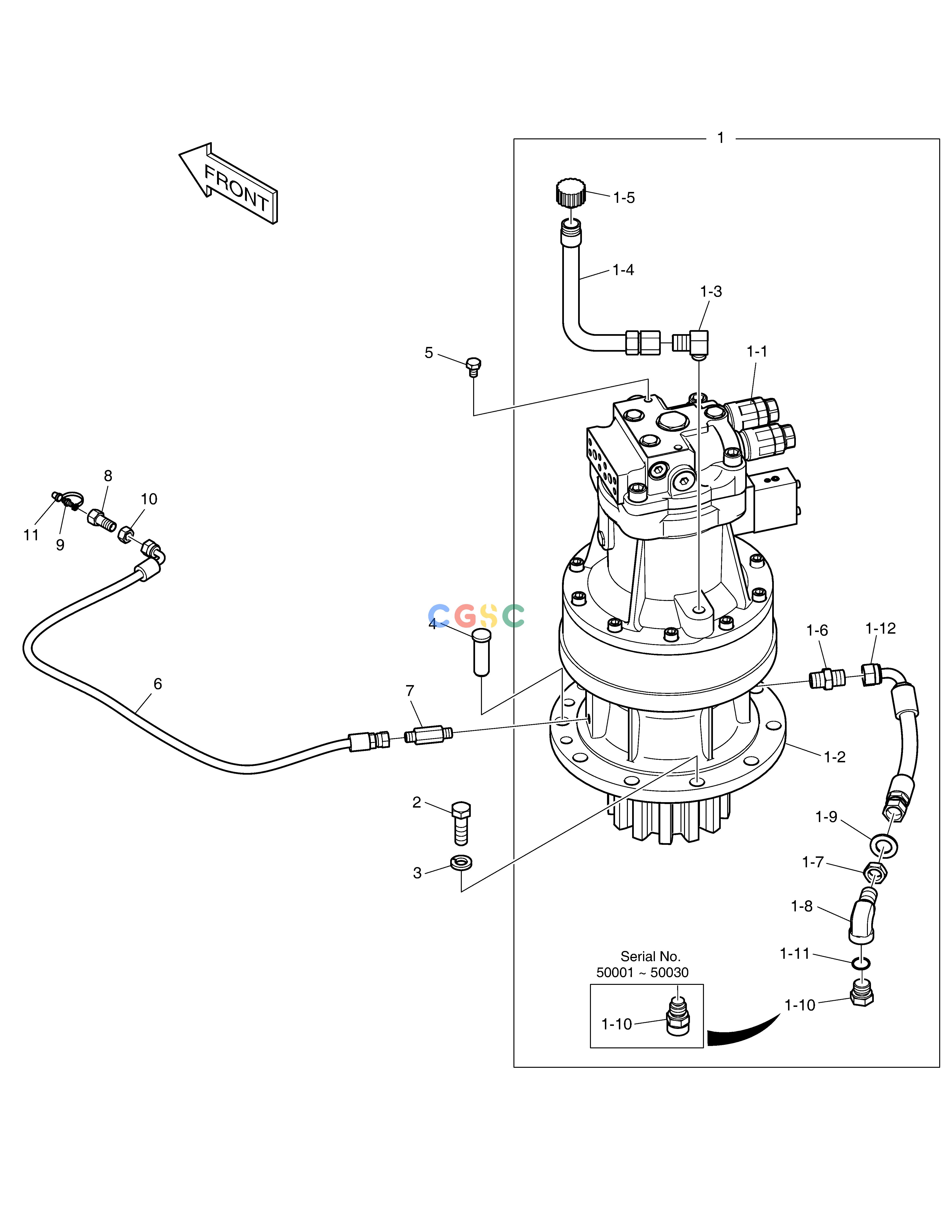

斗山零件查询SWING DEVICE DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
598 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1016315E
|
[-] |
SWING DEVICE ASS'Y
|
|
| 1. |
K1016316B
|
[1] |
SWING DEVICE SUB ASS'Y
|
K1016316C
|
| 1. |
K1016316C
|
[1] |
SWING DEVICE SUB ASS'Y
|
170301-00126
|
| 1. |
170301-00126
|
[1] |
|
|
| 1-1. |
K1000101
|
[1] |
MOTOR;SWING
|
170303-00001
|
| 1-1. |
170303-00001
|
[1] |
|
|
| 1-10. |
426-00278
|
[1] |
. VALVE;DRAIN
|
|
| 1-10. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 1-11. |
S8000181
|
[1] |
O-RING
|
|
| 1-12. |
DS2055933
|
[1] |
HOSE
|
|
| 1-2. |
K1007357B
|
[1] |
SWING REDUCTION GEAR
|
|
| 1-3. |
2181-1111D3
|
[1] |
. ELBOW
|
|
| 1-4. |
2183-3784B
|
[1] |
. PIPE
|
|
| 1-5. |
2119-1063B
|
[1] |
. CAP
|
|
| 1-6. |
2181-1110D3
|
[1] |
. ADAPTER
|
|
| 1-7. |
121-00010D3
|
[1] |
. NUT
|
|
| 1-8. |
181-00717
|
[1] |
. ELBOW
|
|
| 1-9. |
S5011113
|
[1] |
. WASHER
|
|
| 10. |
121-00006
|
[1] |
NUT
|
|
| 11. |
160-00020
|
[1] |
CAP
|
|
| 2. |
S0765266
|
[9] |
BOLT M16X1.5X50
|
|
| 3. |
S5102903
|
[9] |
WASHER
|
|
| 4. |
2123-1458A
|
[1] |
PIN;KNOCK
|
|
| 5. |
S0511666
|
[2] |
BOLT
|
|
| 6. |
DS2093183
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 7. |
DS2214050
|
[1] |
ADAPTER
|
|
| 8. |
181-00103
|
[1] |
REDUCER
|
|
| 9. |
S6710041
|
[1] |
NIPPLE,GREASE
|
|
