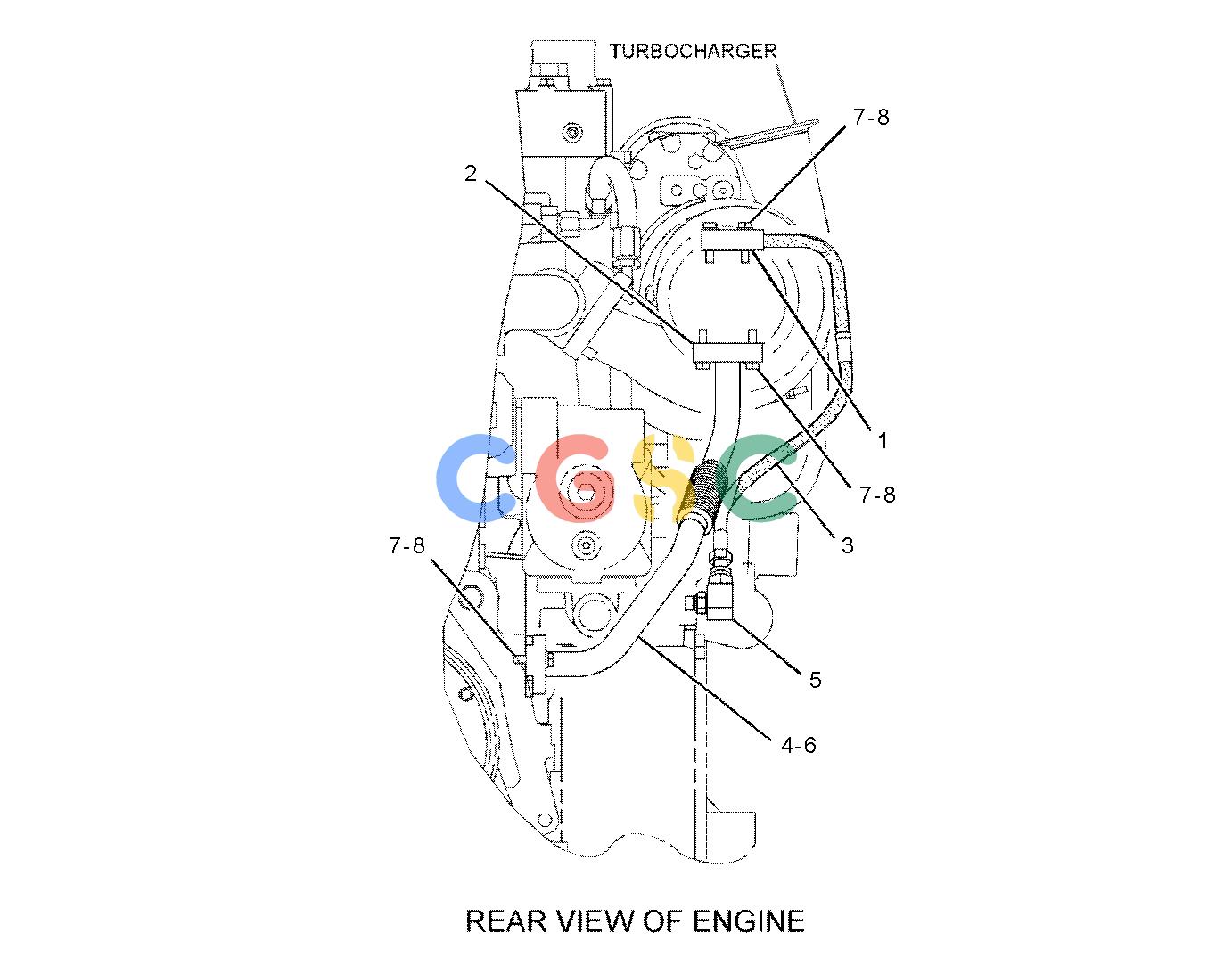

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 197-8418 | [1] | GASKET | |
| 2. | 197-8419 | [1] | GASKET(TURBOCHARGER) | |
| 3. | 224-8171 | [1] | HOSE AS(SUPPLY) | |
| 4. | 224-8172 | [1] | TUBE AS(DRAIN) | |
| 5. | 319-6226 | [1] | ELBOW AS | |
| 8T-6876 | [1] | ELBOW | ||
| 214-7568 | [1] | SEAL-O-RING | ||
| 228-7090 | [1] | SEAL-O-RING | ||
| 6. | 225-6948 | [1] | SEAL-O-RING | |
| 7. | 6V-5218M | [6] | BOLT(M8X1.25X35-MM) | |
| 8. | 9M-1974 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| M | METRIC PART | |||
