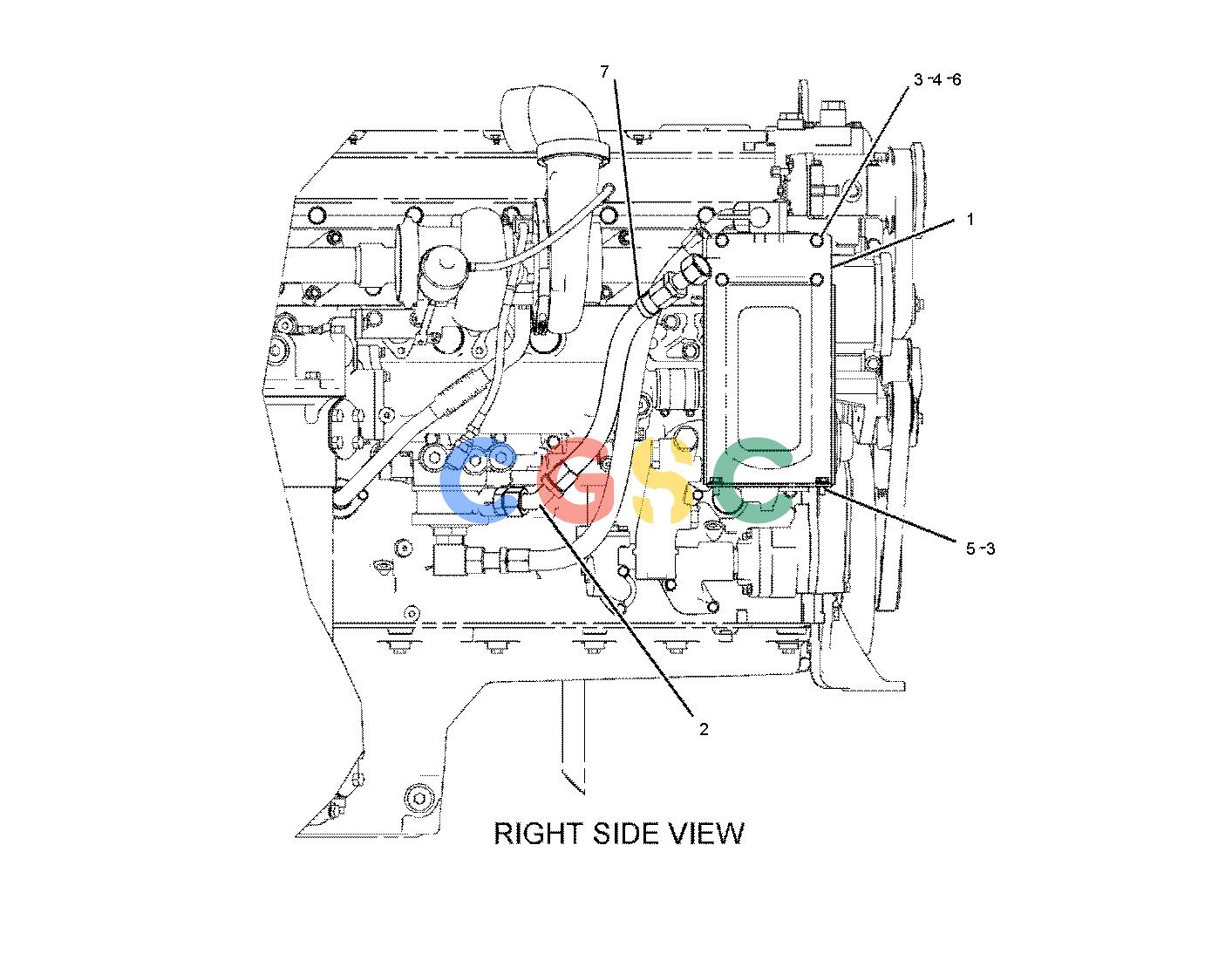

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 185-6050 | [1] | BRACKET AS | |
| 2. | 236-4783I | [1] | HOSE AS | |
| 3. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 4. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 5. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 6. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 7. | 6U-0456 | [1] | STRAP | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
| M | METRIC PART | |||
