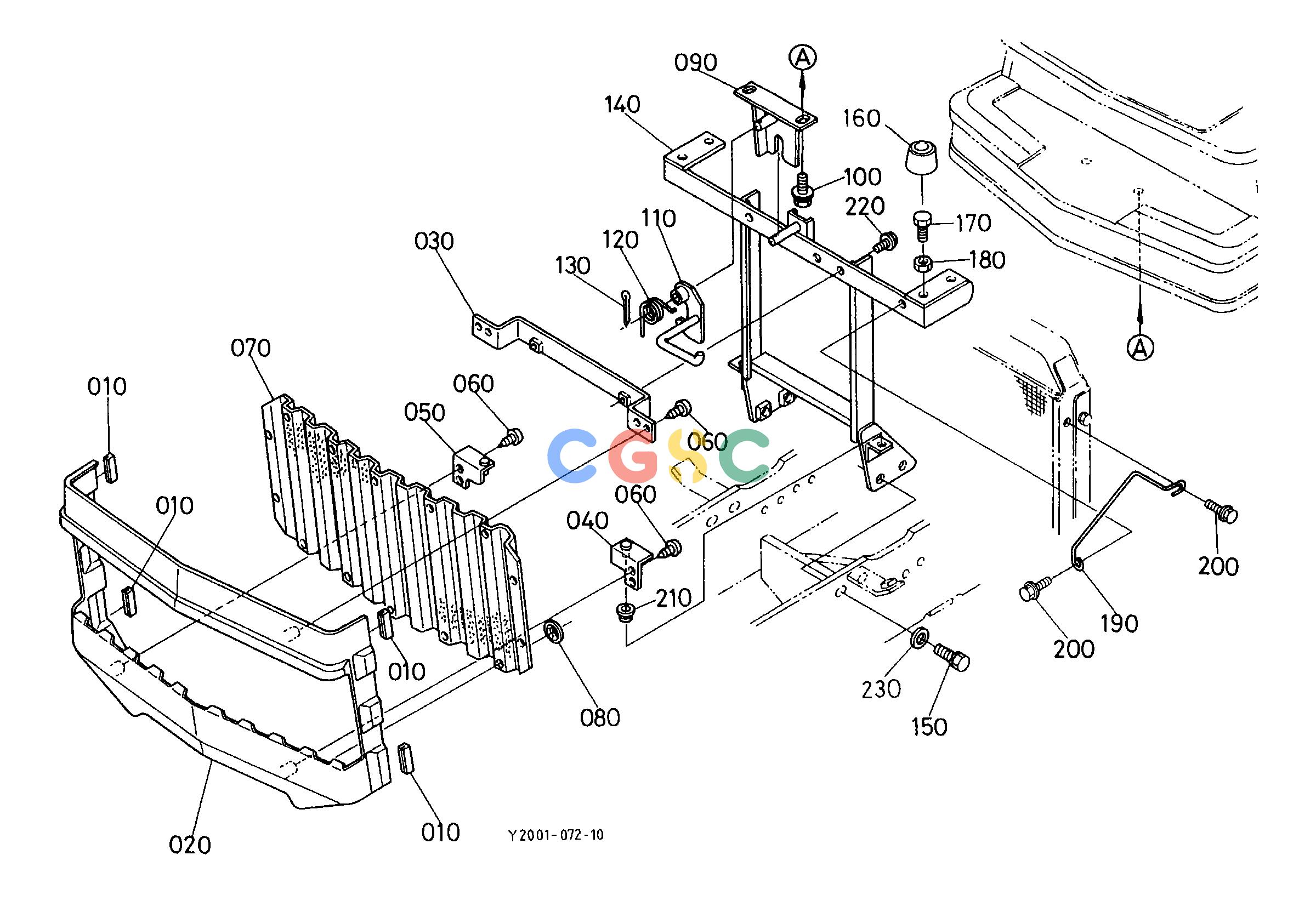

久保田零件查询T11400 SKIRT (FRONT) HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
182 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3715013920
|
[4] |
CUSHION
|
0.0110(lbs); 0.005
|
| 020. |
6641651360
|
[1] |
COVER FRONT
|
0.6820(lbs); 0.310
|
| 030. |
6641651410
|
[1] |
STOPPER
|
0.3080(lbs); 0.140
|
| 040. |
6641651420
|
[1] |
STOPPER LH
|
0.1100(lbs); 0.050
|
| 050. |
6641651430
|
[1] |
STOPPER RH
|
0.1100(lbs); 0.050
|
| 060. |
0351450612
|
[8] |
SCREW TAPPING
|
0.0044(lbs); 0.002
|
| 070. |
6641651370
|
[1] |
NET DUSTPROOF FRONT
|
0.2860(lbs); 0.130
|
| 080. |
6740151380
|
[14] |
NUT
|
0.0044(lbs); 0.002
|
| 090. |
6641654210
|
[1] |
LOCKER
|
0.3960(lbs); 0.180
|
| 100. |
0112550820
|
[2] |
BOLT
|
0.0308(lbs); 0.014
|
| 110. |
6641654220
|
[1] |
LEVER HOOK
|
0.1980(lbs); 0.090
|
| 120. |
6641654230
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 130. |
0551150320
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 140. |
6641654810
|
[1] |
BRACKET BONNET
|
0.0000(lbs); 0.000
|
| 140. |
6641654812
|
[1] |
BRACKET BONNET
|
2.4860(lbs); 1.130
|
| 150. |
0112551025
|
[4] |
BOLT
|
0.0330(lbs); 0.015
|
| 150. |
0113351030
|
[4] |
BOLT
|
0.0550(lbs); 0.025
|
| 160. |
3741054720
|
[2] |
CUSHION
|
0.0550(lbs); 0.025
|
| 170. |
0115350825
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 180. |
0211250080
|
[2] |
NUT
|
0.0066(lbs); 0.003
|
| 190. |
6641654290
|
[1] |
SUPPORT
|
0.0440(lbs); 0.020
|
| 200. |
0102550620
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 210. |
6715654470
|
[2] |
CUSHION
|
0.0066(lbs); 0.003
|
| 220. |
0175450620
|
[2] |
BOLT FLANGE
|
0.0154(lbs); 0.007
|
| 230. |
0401350100
|
[4] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
