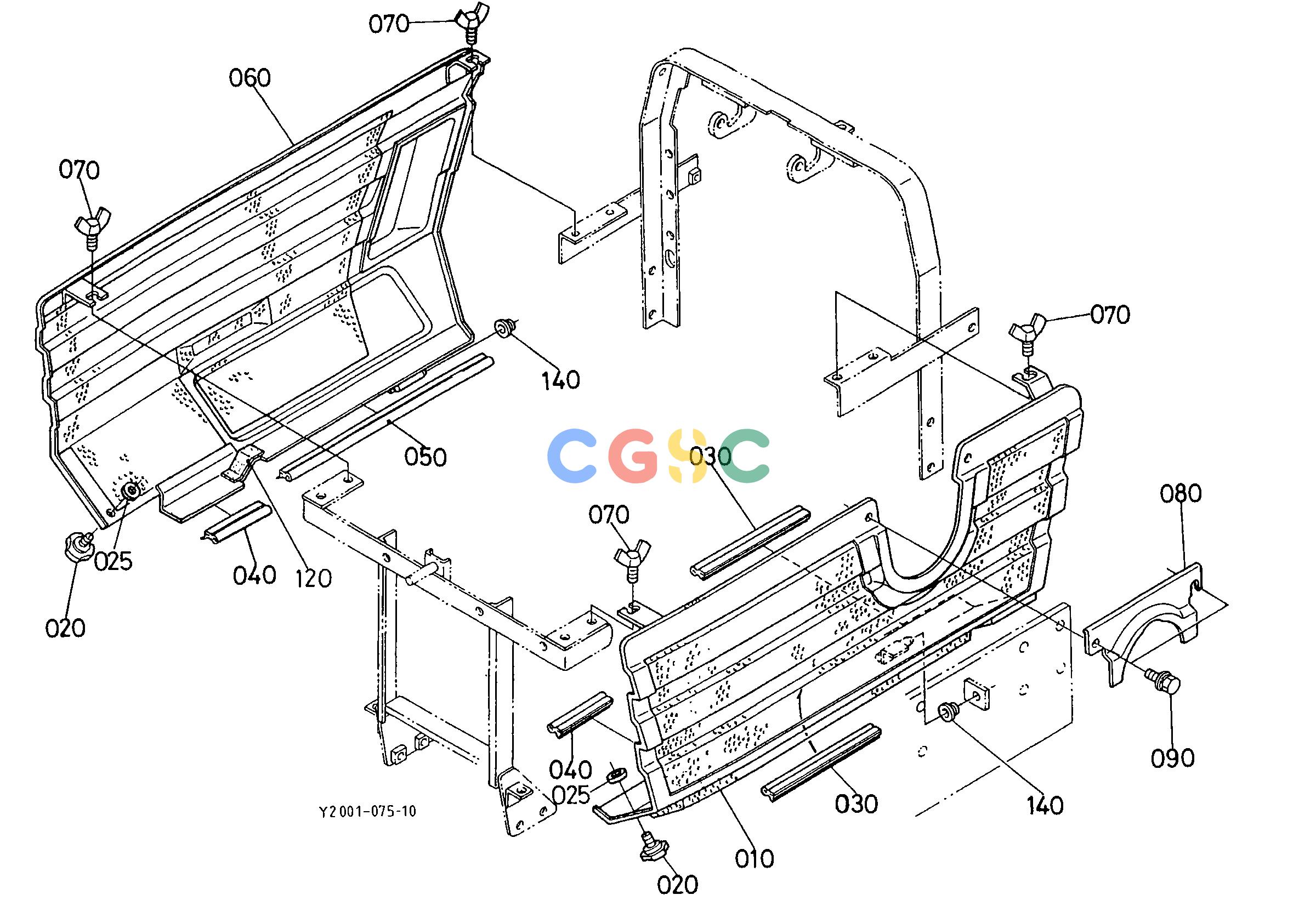

久保田零件查询T11500 SKIRT (SIDE) HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
312 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641651310
|
[1] |
SKIRT LH
|
0.0000(lbs); 0.000
|
| 010. |
6641651314
|
[1] |
SKIRT LH
|
2.0900(lbs); 0.950
|
| 020. |
0182050615
|
[2] |
BOLT KNOB
|
0.0374(lbs); 0.017
|
| 025. |
6715654480
|
[2] |
RUBBER KNOB
|
0.0022(lbs); 0.001
|
| 030. |
6641651480
|
[2] |
TRIM SKIRT LH
|
0.0660(lbs); 0.030
|
| 040. |
6641751380
|
[2] |
TRIM SKIRT FRONT
|
0.0330(lbs); 0.015
|
| 050. |
6641751390
|
[1] |
TRIM SKIRT REAR
|
0.1540(lbs); 0.070
|
| 060. |
6641651320
|
[1] |
SKIRT RH
|
2.5520(lbs); 1.160
|
| 070. |
0181150615
|
[4] |
BOLT WING
|
0.0330(lbs); 0.015
|
| 080. |
6641751455
|
[1] |
COVER
|
0.1870(lbs); 0.085
|
| 080. |
H664051400
|
[1] |
COVER
|
0.1870(lbs); 0.085
|
| 090. |
0112550820
|
[2] |
BOLT
|
0.0308(lbs); 0.014
|
| 120. |
6636158220
|
[1] |
CUSHION
|
0.0022(lbs); 0.001
|
| 140. |
6715654470
|
[2] |
CUSHION
|
0.0066(lbs); 0.003
|
