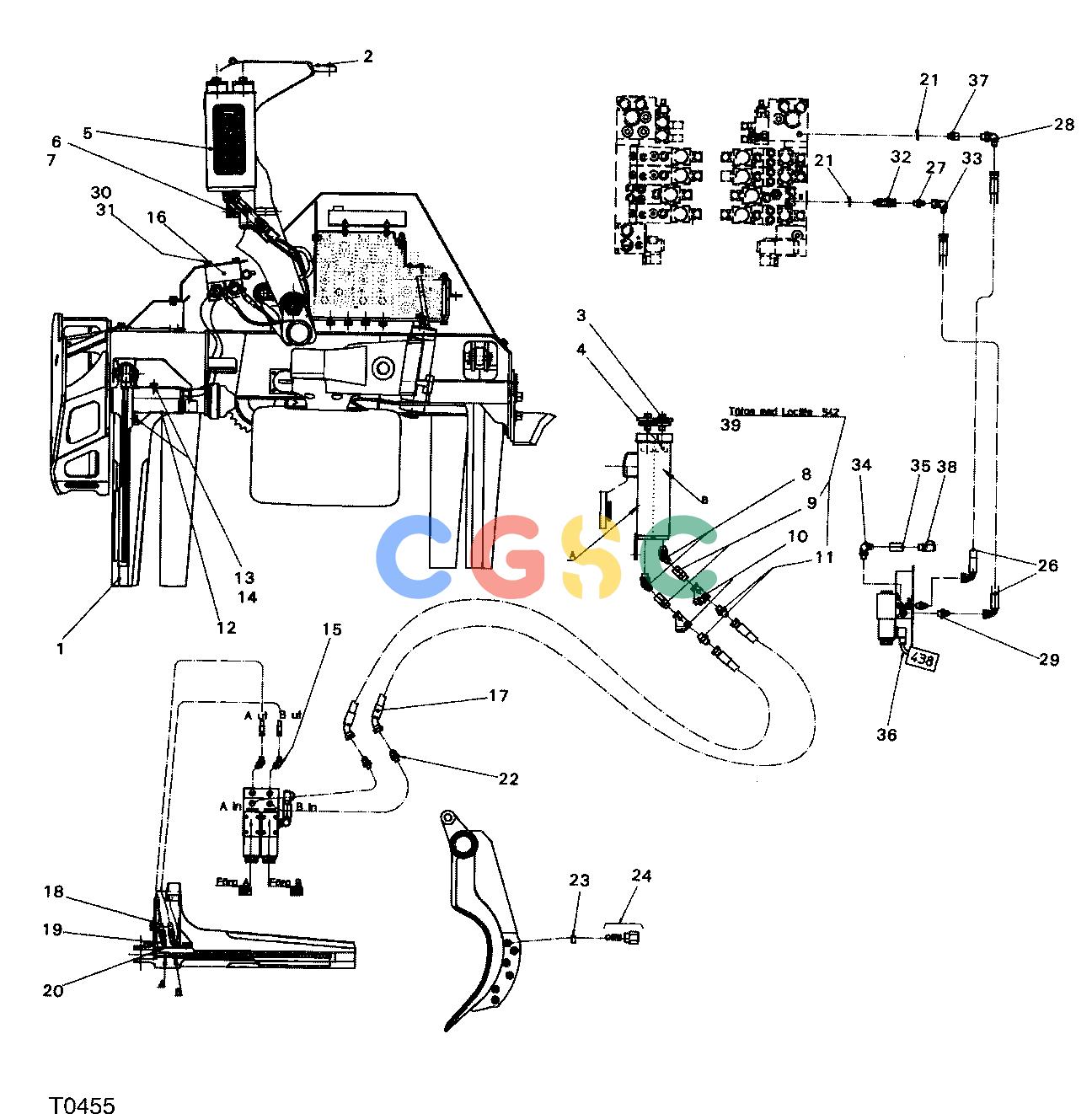

约翰迪尔零件查询743 ATT - ATTACHMENTS ENGINE PAINT MARKING DEVICE F042685 11 58 T0455 [T0455]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
523 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F029969
|
[1] |
Knife
|
|
| 2. |
F029940
|
[1] |
MODIFICATION
|
|
| 3. |
F021332
|
[2] |
REFILLING COVER
|
|
| 4. |
F014081
|
[2] |
Filter
|
|
| 5. |
F022880
|
[1] |
Tank
|
|
| 6. |
F003542
|
[2] |
Screw
|
|
| 7. |
F003340
|
[2] |
Washer
|
|
| 8. |
F012533
|
[2] |
ELBOW NIPPLE
|
|
| 9. |
F031745
|
[2] |
NIPPLE
|
|
| 10. |
F027508
|
[2] |
Filter
|
|
| 11. |
F025398
|
[2] |
NIPPLE
|
|
| 12. |
F031200
|
[1] |
HOSE PROTECTION
|
|
| 13. |
F005551
|
[2] |
Lock Washer
|
|
| 14. |
F015148
|
[2] |
Screw
|
|
| 15. |
F019105
|
[2] |
ELBOW NIPPLE
|
|
| 16. |
-------
|
[1] |
Pump
|
|
| 17. |
F024351
|
[2] |
HOSE-ASSY
|
|
| 18. |
F032041
|
[2] |
HOSE-ASSY
|
|
| 19. |
F005053
|
[2] |
NIPPLE
|
|
| 21. |
F005166
|
[2] |
SEAL RING
|
|
| 22. |
F023015
|
[2] |
NIPPLE
|
|
| 23. |
F026417
|
[6] |
Seal Kit
|
|
| 24. |
F013448
|
[6] |
Nozzle
|
|
| |
F021689
|
[6] |
Ball
|
|
| 26. |
F024307
|
[2] |
HOSE-ASSY
|
|
| 27. |
F005055
|
[1] |
NIPPLE
|
|
| 28. |
F024402
|
[1] |
ELBOW NIPPLE
|
|
| 29. |
F005057
|
[2] |
NIPPLE
|
|
| 30. |
F003523
|
[4] |
Screw
|
|
| 31. |
F008262
|
[4] |
Lock Washer
|
|
| 32. |
F019944
|
[1] |
NIPPLE
|
|
| 33. |
F022417
|
[1] |
ELBOW NIPPLE
|
|
| 34. |
F024599
|
[1] |
ELBOW NIPPLE
|
|
| 35. |
F027231
|
[1] |
NIPPLE
|
|
| 36. |
F021469
|
[1] |
CABLE HARNESS
|
|
| |
F035647
|
[1] |
Cable
|
|
| 37. |
F015831
|
[1] |
NIPPLE
|
|
| 38. |
F017320
|
[1] |
MEASURING NIPPLE
|
|
| 39. |
F008293
|
[1] |
LOCKING FLUID
|
|
