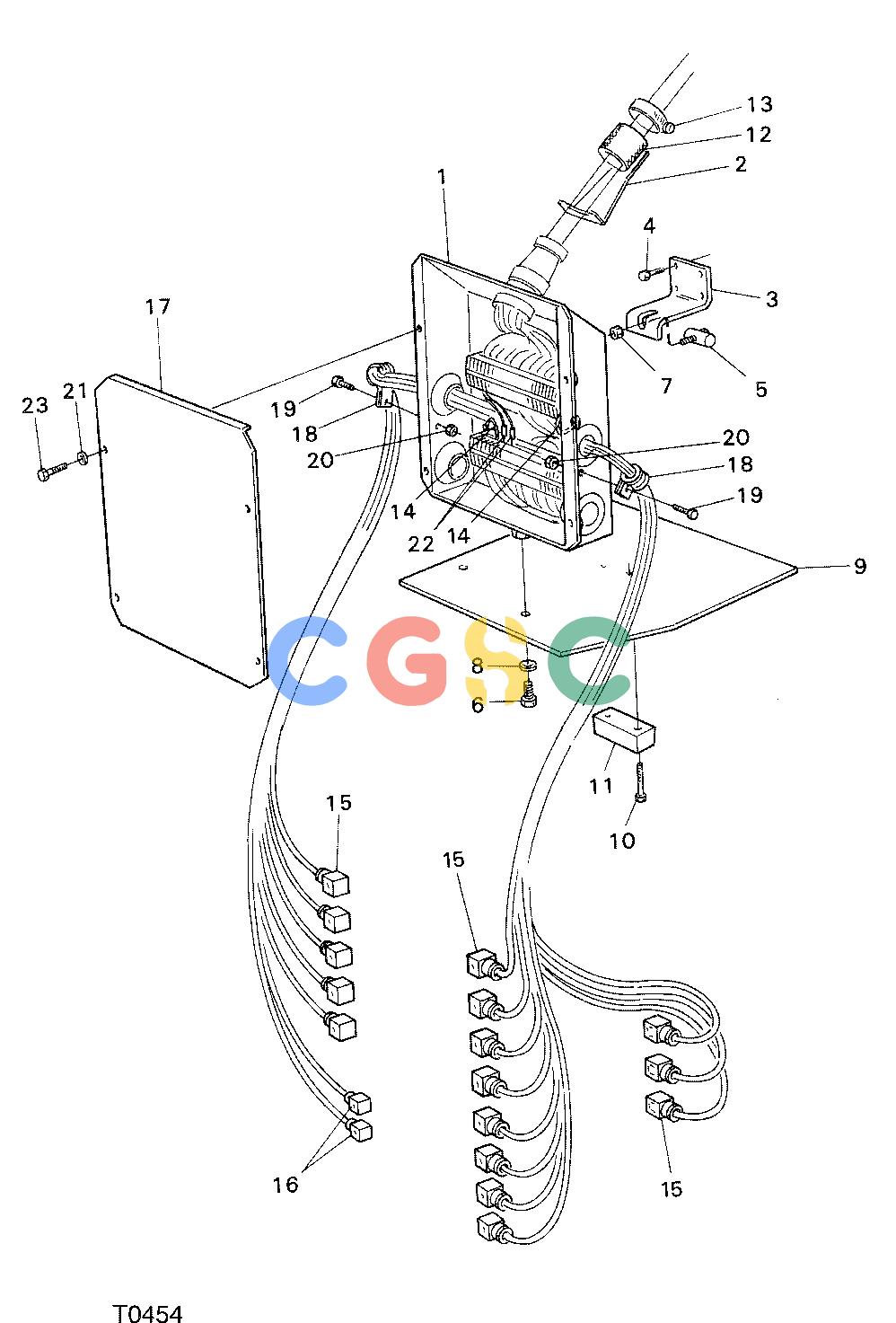

约翰迪尔零件查询743 ATT - ATTACHMENTS ENGINE ELECTRICAL MOUNTING F042685 11 56 T0454 [T0454]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
390 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F027587
|
[1] |
ELECTRICAL BOX
|
|
| 2. |
F027665
|
[1] |
Bracket
|
|
| 3. |
F027607
|
[1] |
Bracket
|
|
| 4. |
F016303
|
[4] |
Screw
|
|
| 5. |
F019260
|
[1] |
LOCKING SCREW
|
|
| 6. |
F003523
|
[1] |
Screw
|
|
| 7. |
F014937
|
[1] |
Lock Nut
|
|
| 8. |
F003338
|
[1] |
Washer
|
|
| 9. |
F028514
|
[1] |
Bracket
|
|
| 10. |
F010828
|
[2] |
Screw
|
|
| 11. |
F028734
|
[1] |
PIPE CLIP HALF
|
|
| 12. |
F013806
|
[%] |
Hose
|
|
| 13. |
F003671
|
[1] |
Hose Clamp
|
|
| 14. |
F014880
|
[%] |
Cable
|
|
| 15. |
F035038
|
[16] |
Cable
|
|
| 16. |
F035037
|
[2] |
Cable
|
|
| 17. |
F014680
|
[1] |
Cap
|
|
| 18. |
F015015
|
[2] |
Hose Clamp
|
|
| 19. |
F003518
|
[2] |
Screw
|
|
| 20. |
F003586
|
[2] |
Lock Nut
|
|
| 21. |
F003338
|
[4] |
Washer
|
|
| 22. |
F032160
|
[2] |
Resistor
|
|
| 23. |
F003523
|
[4] |
Screw
|
|
