| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

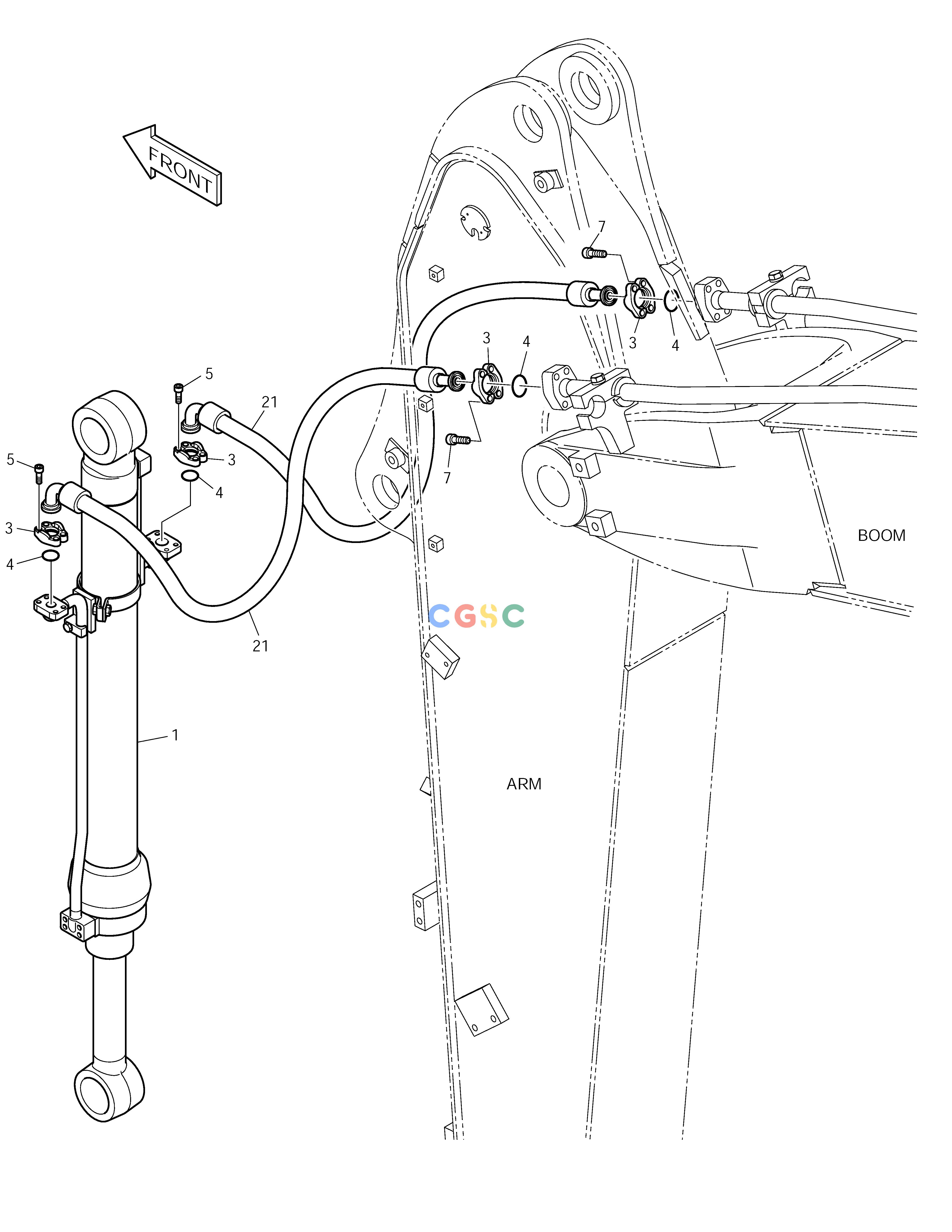

| -. | K1027306B | [-] | ARM PIPING | |
| 1. | K1024712 | [1] | CYLINDER;BUCKET | K1024712A |
| 1. | K1024712A | [1] | CYLINDER;BUCKET | K1024712B |
| 1. | K1024712B | [1] | CYLINDER;BUCKET | |
| 21. | 2184-1100D237 | [2] | HOSE PF3/4-1350L | |
| 3. | 2181-9079 | [8] | FLANGE | |
| 4. | 2180-1026D2 | [4] | O-RING | |
| 5. | S2212266 | [8] | BOLT | |
| 7. | S2212366 | [8] | BOLT |
