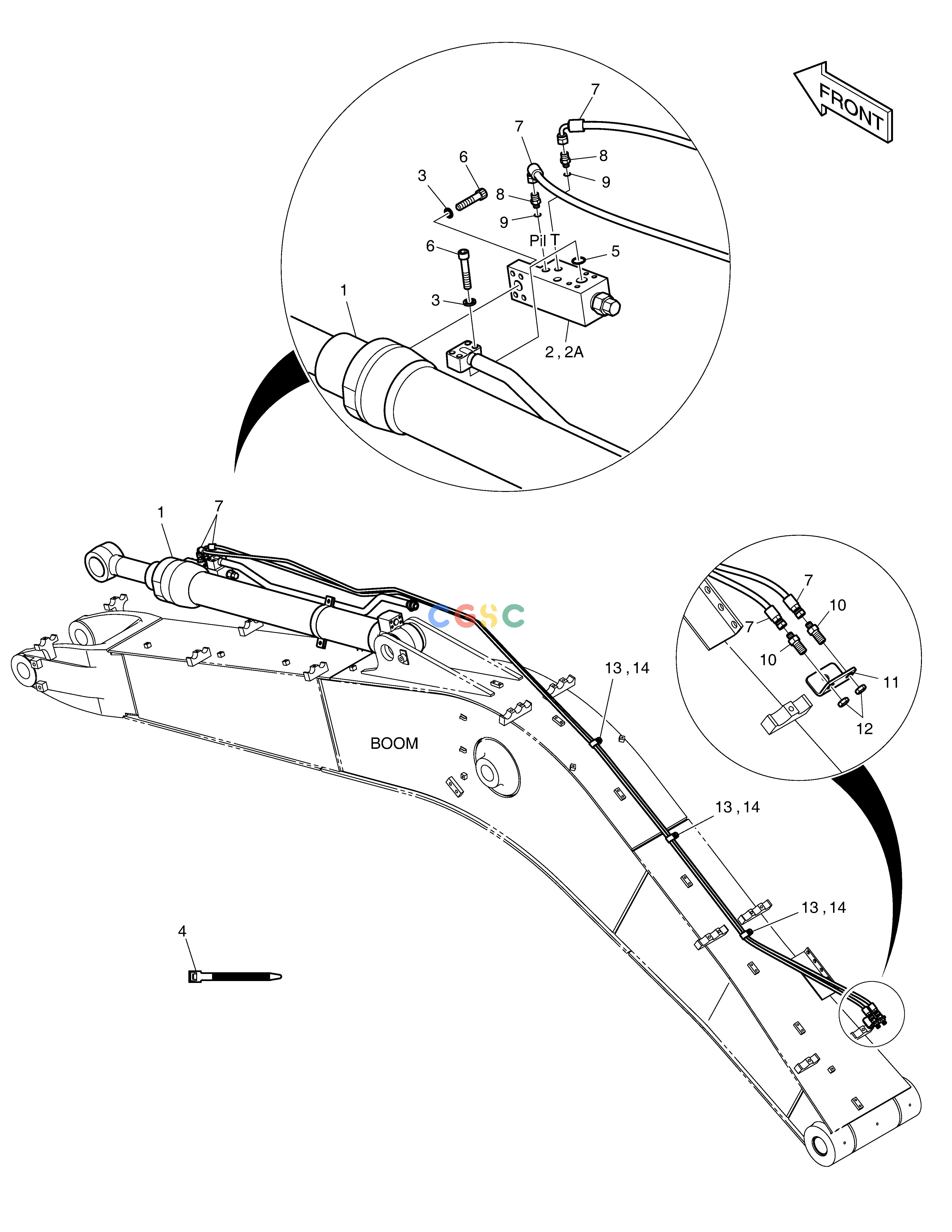

斗山零件查询ARM PIPING - LOCK VALVE DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
876 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1018955A
|
[-] |
BOOM PIPING;ARM LOCK VALVE
|
|
| 1. |
K1018944
|
[1] |
ARM CYLINDER
|
|
| 10. |
DS2410007
|
[2] |
ADAPTER
|
|
| 11. |
K1006957
|
[1] |
BRACKET
|
|
| 12. |
121-00010D7
|
[2] |
NUT
|
|
| 13. |
124-00199D5
|
[3] |
CLIP
|
|
| 14. |
K1001029
|
[3] |
BOLT
|
|
| 2. |
420-00003A
|
[1] |
VALVE;LOCK
|
|
| 2A. |
K9000998
|
[1] |
SEAL KIT
|
|
| 3. |
S5110601
|
[8] |
WASHER;SPRING M10
|
|
| 4. |
2124-1084D2
|
[15] |
CLIP;BAND
|
|
| 5. |
S8000281
|
[1] |
O-RING
|
|
| 6. |
S2212666
|
[8] |
BOLT;SOCKET M10X1.5X50
|
|
| 7. |
DS2055981
|
[2] |
HOSE
|
|
| 8. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 9. |
S8000111
|
[2] |
O-RING
|
|
