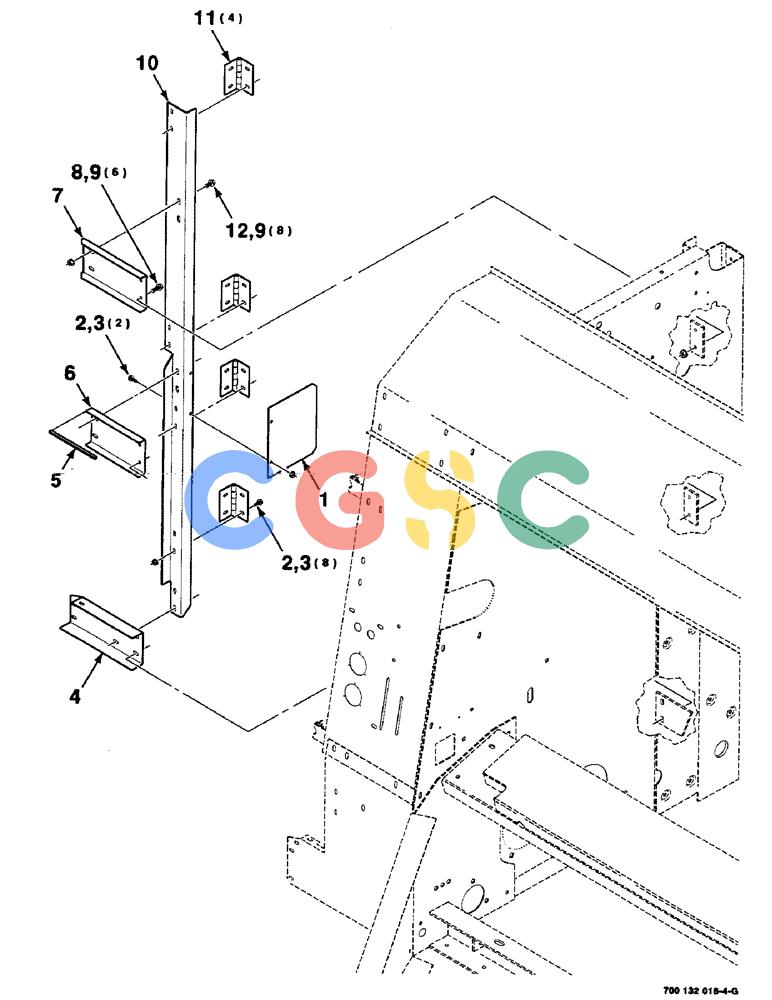

凯斯零件查询(8435) - CASE IH SILAGE SPECIAL ROUND BALER (1/97-12/00) (7-24) - SHIELD SUPPORT AND HINGE ASSEMBLIES, RIGHT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
719 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700133808
|
[1] |
PLATE
|
HFI
ASSEMBLY (includes decal)
|
| 2. |
121-115
|
[10] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 3. |
231-5145
|
[10] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 4. |
700132497
|
[1] |
SUPPORT
|
HFI
- lower, right
|
| 5. |
1117746
|
[1] |
ORNAMENTAL STRIP
|
CAS
TRIM - edge
|
| 6. |
700132499
|
[1] |
SUPPORT
|
HFI
- center
|
| 7. |
700132500
|
[1] |
SUPPORT
|
HFI
- upper
|
| 8. |
121-226
|
[6] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 9. |
232-5316
|
[14] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 10. |
700132495
|
[1] |
ANGLE
|
HFI
- support, right
|
| 11. |
700707701
|
[4] |
HINGE
|
CAS
- butt
|
| 12. |
409-7612
|
[8] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
