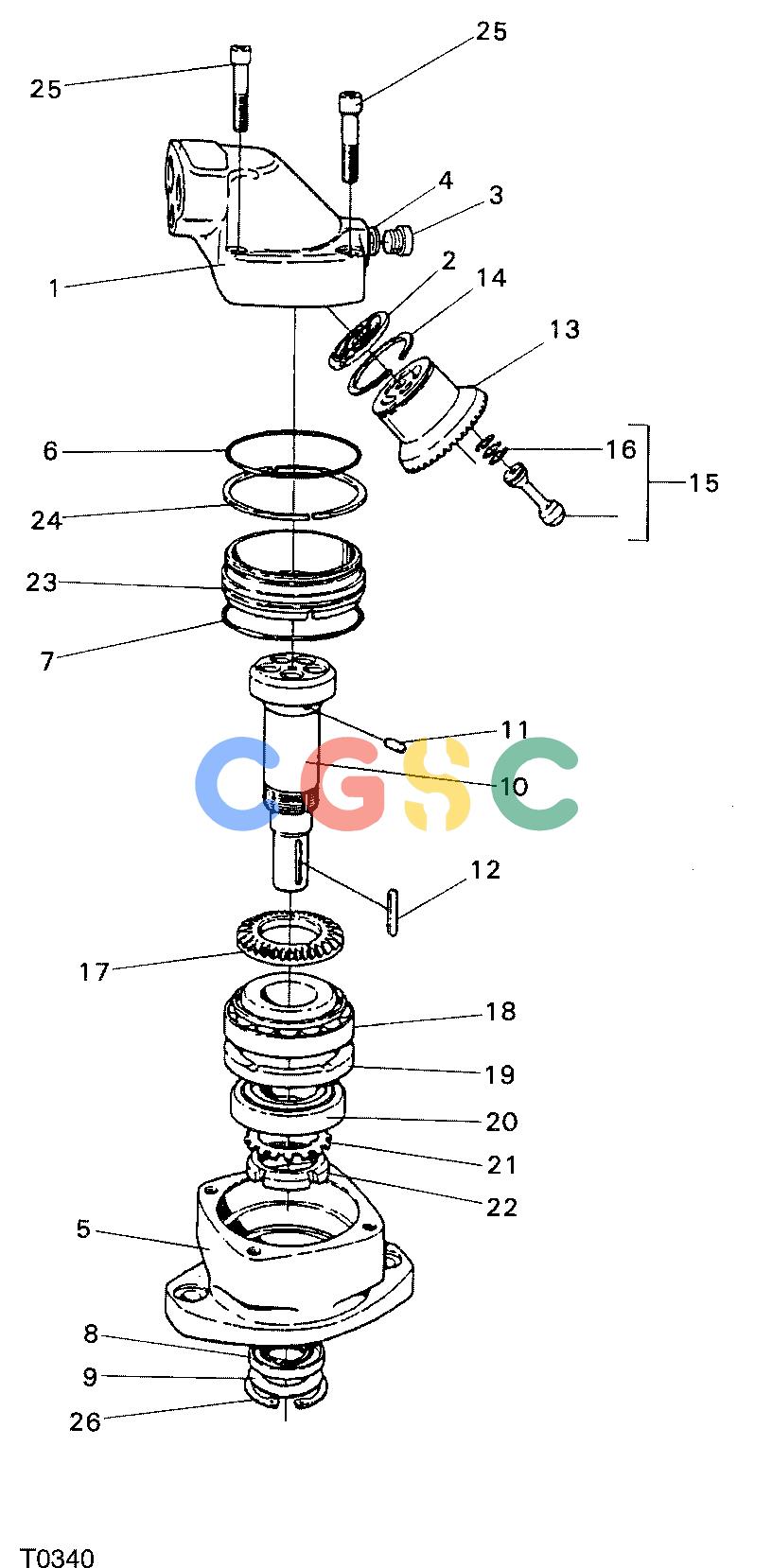

约翰迪尔零件查询743 ATT - ATTACHMENTS ENGINE HYDRAULIC MOTOR F042685 11 76 T0340 [T0340]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
277 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F005616
|
[1] |
Hydraulic Motor
|
|
| 1. |
F035156
|
[1] |
Housing
|
|
| 2. |
F035157
|
[1] |
DISC
|
|
| 3. |
F003383
|
[1] |
Plug
|
|
| 4. |
F005166
|
[1] |
SEAL RING
|
|
| 5. |
F035158
|
[1] |
Housing
|
|
| 6. |
F035159
|
[1] |
O-Ring
|
|
| 7. |
F035160
|
[1] |
O-Ring
|
|
| 8. |
F003148
|
[1] |
Seal
|
|
| 9. |
F010648
|
[1] |
Washer
|
|
| 10. |
F035162
|
[1] |
Shaft
|
|
| 11. |
F003516
|
[1] |
Screw
|
|
| 12. |
F035163
|
[1] |
Wedge
|
|
| 13. |
F035164
|
[1] |
CYLINDER DRUM
|
|
| 14. |
F035165
|
[1] |
CIRCLIP
|
|
| 15. |
F035166
|
[5] |
Piston
|
|
| 16. |
F035167
|
[15] |
Piston Ring
|
|
| 17. |
F035168
|
[1] |
GEAR RIM
|
|
| 18. |
F035169
|
[1] |
Bearing
|
|
| 19. |
F035170
|
[1] |
Spacer
|
|
| 20. |
F035171
|
[1] |
Bearing
|
|
| 21. |
F003827
|
[1] |
Lock Washer
|
|
| 22. |
F003832
|
[1] |
Lock Nut
|
|
| 23. |
F035172
|
[1] |
Sleeve
|
|
| 24. |
F035173
|
[%] |
Shim
|
|
| |
F035174
|
[%] |
Shim
|
|
| |
F035175
|
[%] |
Shim
|
|
| |
F035176
|
[%] |
Shim
|
|
| |
F035177
|
[%] |
Shim
|
|
| |
F035178
|
[%] |
Shim
|
|
| |
F035179
|
[%] |
Shim
|
|
| 25. |
F010126
|
[2] |
Screw
|
|
| |
F003423
|
[2] |
Screw
|
|
| 26. |
F035180
|
[1] |
CIRCLIP
|
|
| |
F003148
|
[1] |
Seal
|
|
