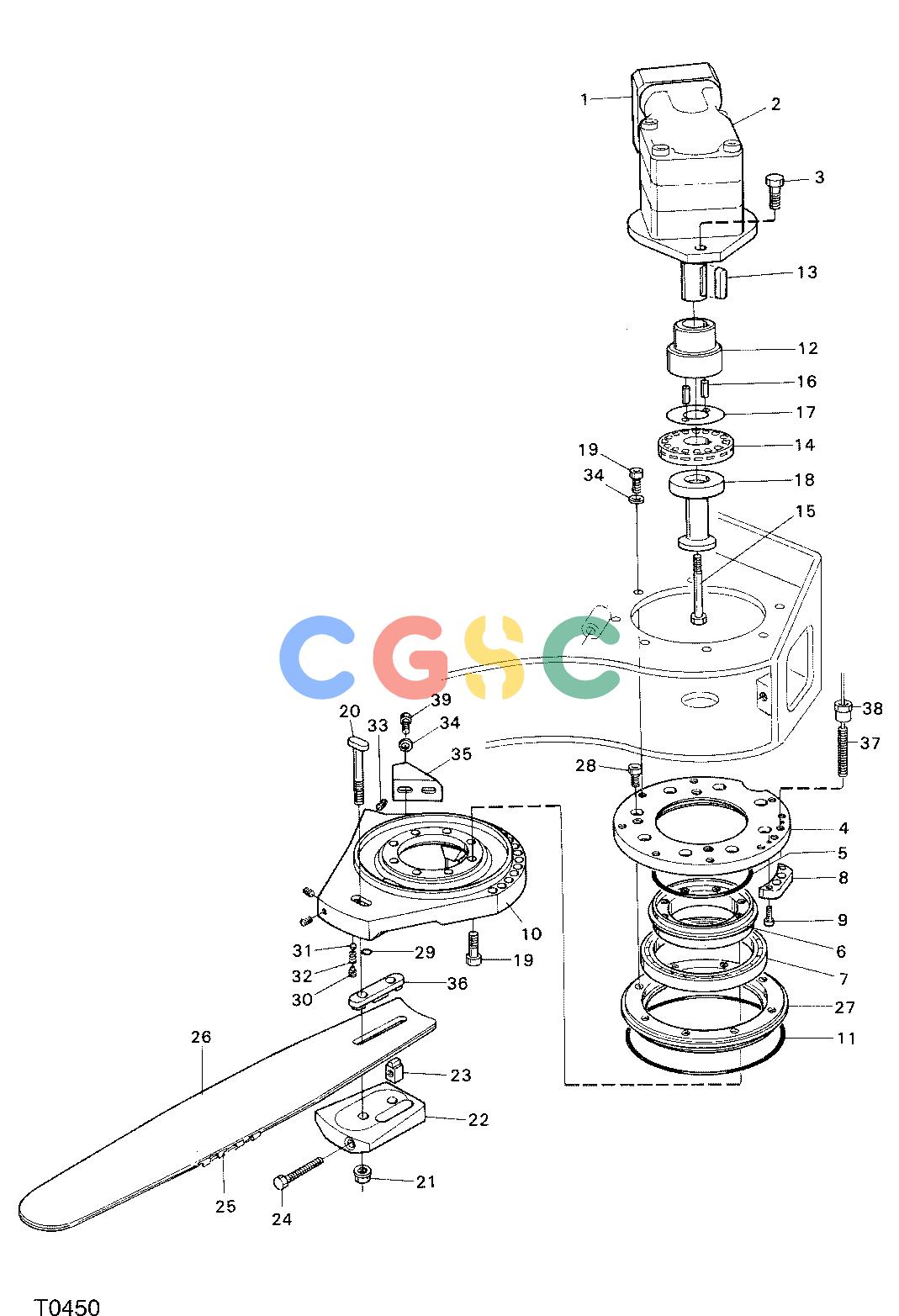

约翰迪尔零件查询743 ATT - ATTACHMENTS ENGINE SAW F042685 11 20 T0450 [T0450]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
979 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F025428
|
[1] |
BLOCK
|
|
| 2. |
F005616
|
[1] |
Hydraulic Motor
|
|
| 3. |
F003541
|
[2] |
Screw
|
|
| 4. |
F009838
|
[1] |
Holder
|
|
| 5. |
F005642
|
[1] |
O-Ring
|
|
| 6. |
F009840
|
[1] |
BEARING RING
|
|
| 7. |
F005592
|
[1] |
Ball Bearing
|
|
| 8. |
F014621
|
[1] |
PROTECTION
|
|
| 9. |
F003391
|
[2] |
Screw
|
|
| 10. |
F027543
|
[1] |
Bracket
|
|
| 11. |
F013915
|
[1] |
O-Ring
|
|
| 12. |
F021395
|
[1] |
CARRIER
|
|
| 13. |
F005496
|
[1] |
Wedge
|
|
| 14. |
F021816
|
[1] |
Ring
|
|
| 15. |
F003471
|
[1] |
Screw
|
|
| 16. |
F011196
|
[2] |
Pin
|
|
| 17. |
F023817
|
[%] |
Washer
|
|
| 18. |
F021394
|
[1] |
CHAIN CATCHER
|
|
| 19. |
F003411
|
[15] |
Screw
|
|
| 20. |
F021404
|
[2] |
Screw
|
|
| 21. |
F011198
|
[2] |
Lock Nut
|
|
| 22. |
F009835
|
[1] |
Holder
|
|
| 23. |
F011217
|
[1] |
CHAIN TIGHTENER
|
|
| 24. |
F005572
|
[1] |
Screw
|
|
| 25. |
F023819
|
[1] |
Saw Chain
|
|
| 26. |
F023818
|
[1] |
SWORD
|
|
| 27. |
F009842
|
[1] |
BEARING RING
|
|
| 28. |
F012683
|
[8] |
Screw
|
|
| 29. |
F013913
|
[1] |
O-Ring
|
|
| 30. |
F009848
|
[1] |
Plug
|
|
| 31. |
F013607
|
[1] |
STEEL BALL
|
|
| 32. |
F013895
|
[1] |
Spring
|
|
| 33. |
F010192
|
[1] |
Plug
|
|
| 34. |
F003338
|
[9] |
Washer
|
|
| 35. |
F028546
|
[1] |
HEAD
|
|
| 36. |
F027649
|
[1] |
Wedge
|
|
| 37. |
F018090
|
[2] |
Sensor
|
|
| 38. |
F025632
|
[2] |
Spacer
|
|
| 39. |
F003524
|
[2] |
Screw
|
|
