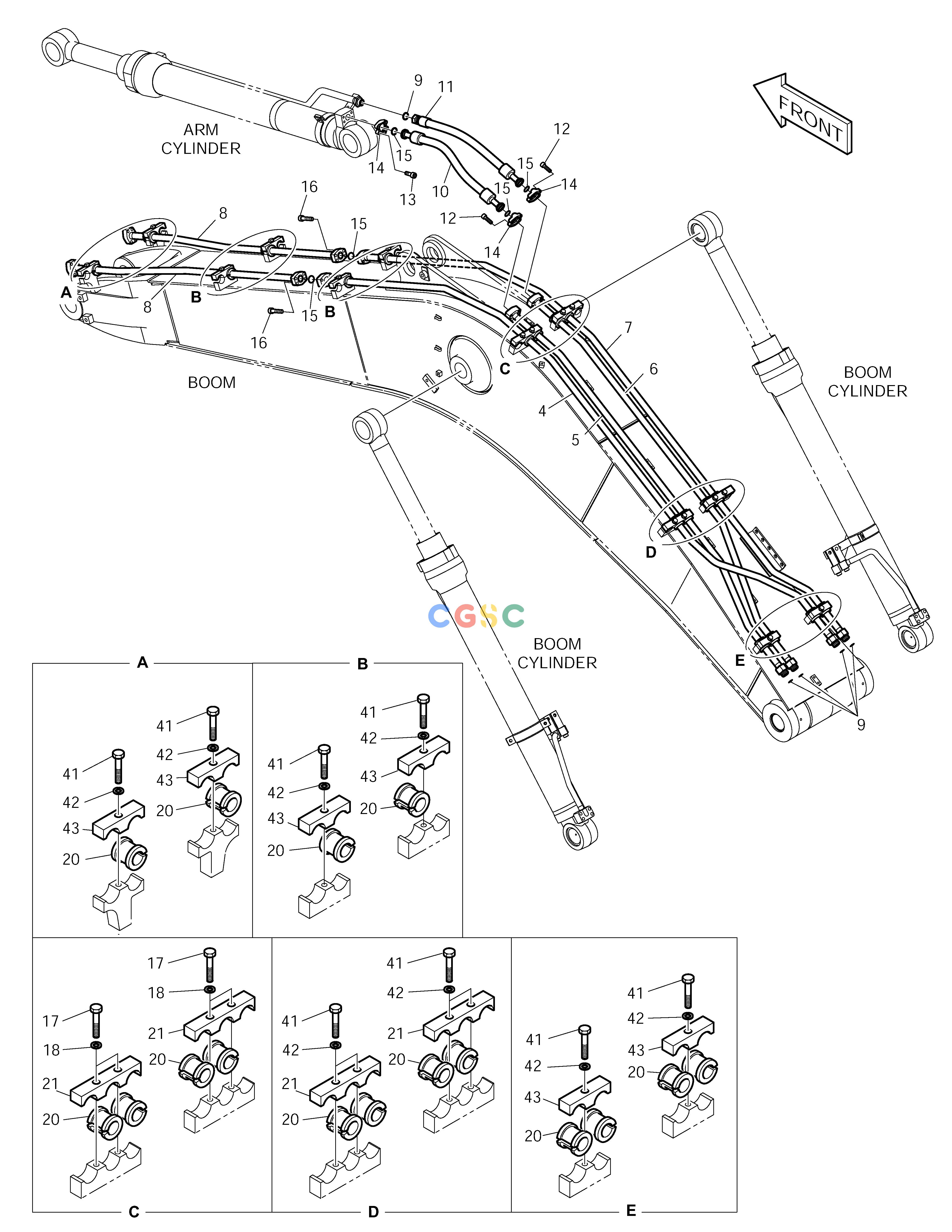

斗山零件查询BOOM PIPING - BOOM 4.6m DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
621 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1018877
|
[-] |
BOOM PIPING
|
|
| 10. |
DS2038186
|
[1] |
HOSE
|
|
| 11. |
DS2016061
|
[1] |
HOSE
|
|
| 12. |
S2212366
|
[8] |
BOLT
|
|
| 13. |
S2212266
|
[4] |
BOLT
|
|
| 14. |
2181-9079
|
[6] |
FLANGE
|
|
| 15. |
2180-1026D2
|
[5] |
O-RING
|
|
| 16. |
S2212566
|
[8] |
BOLT
|
|
| 17. |
S0560866
|
[4] |
BOLT
|
|
| 18. |
S5102703
|
[4] |
WASHER
|
|
| 20. |
K1000294A
|
[18] |
RUBBER
|
|
| 21. |
K1004317
|
[4] |
CLAMP;PIPE
|
|
| 4. |
140-01608C
|
[1] |
PIPE
|
|
| 41. |
S0560866
|
[12] |
BOLT
|
|
| 42. |
S5102703
|
[12] |
WASHER
|
|
| 43. |
K1004316
|
[8] |
CLAMP;PIPE
|
|
| 5. |
140-01609C
|
[1] |
PIPE
|
|
| 6. |
140-01610C
|
[1] |
PIPE
|
|
| 7. |
140-01611C
|
[1] |
PIPE
|
|
| 8. |
K1000843A
|
[2] |
PIPE
|
|
| 9. |
S8030121
|
[5] |
O-RING
|
|
