斗山零件查询BOOM PIPING - LOCK VALVE DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
511 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

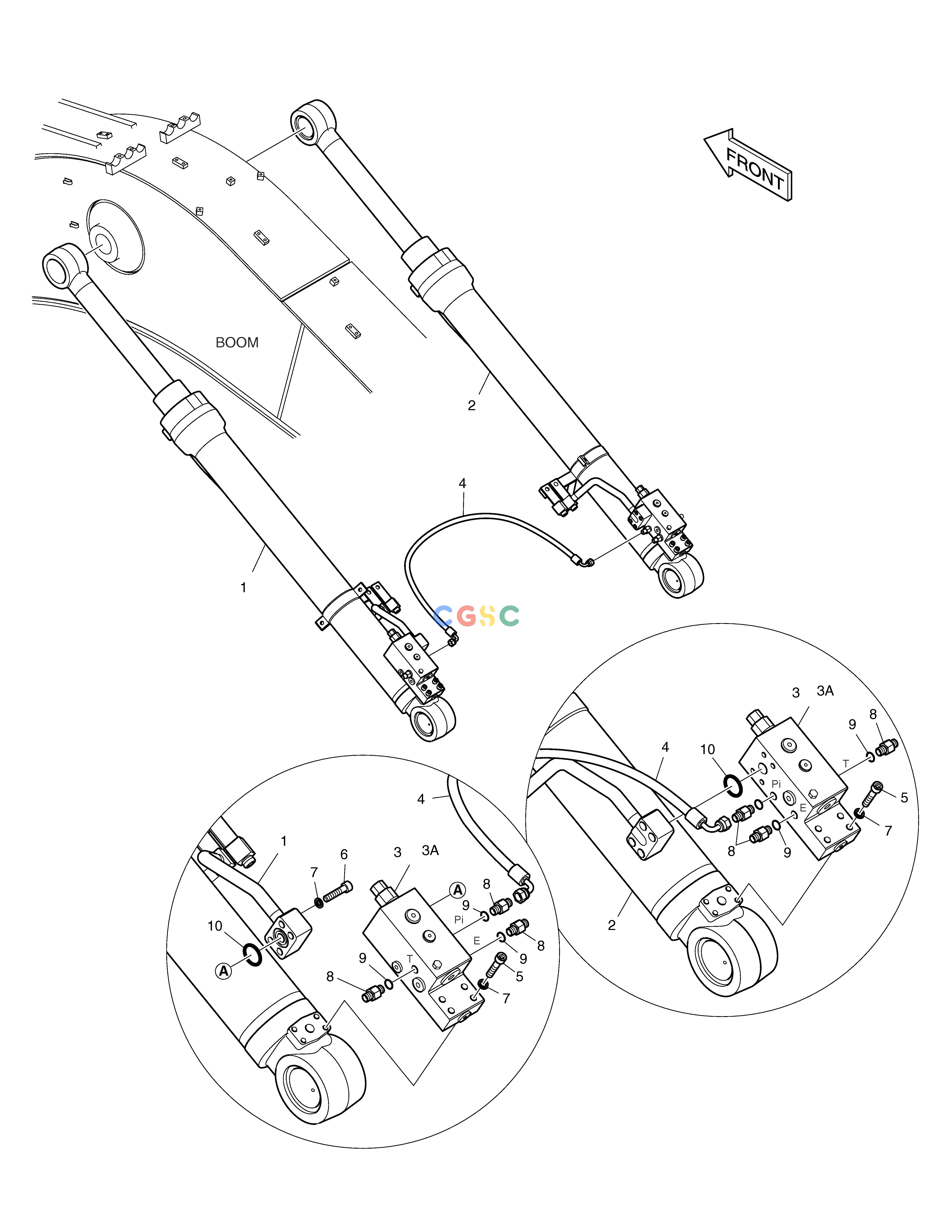

K1018954B
|
[-] |
BOOM PIPING;LOCK VALVE
|
|
| 1. |
K1026247A
|
[1] |
BOOM CYLINDER(L.H)
|
|
| 10. |
S8000281
|
[2] |
O-RING
|
|
| 2. |
K1026248A
|
[1] |
BOOM CYLINDER(R.H)
|
|
| 3. |
420-00003A
|
[2] |
VALVE;LOCK
|
|
| 3A. |
K9000998
|
[1] |
SEAL KIT
|
|
| 4. |
DS2059383
|
[1] |
HOSE PF1/4-800L
|
|
| 5. |
S2212666
|
[8] |
BOLT;SOCKET M10X1.5X50
|
|
| 6. |
S2212566
|
[8] |
BOLT
|
|
| 7. |
S5110601
|
[16] |
WASHER;SPRING M10
|
|
| 8. |
2181-1126D102
|
[6] |
ADAPTER
|
|
| 9. |
S8000111
|
[6] |
O-RING
|
|
