| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

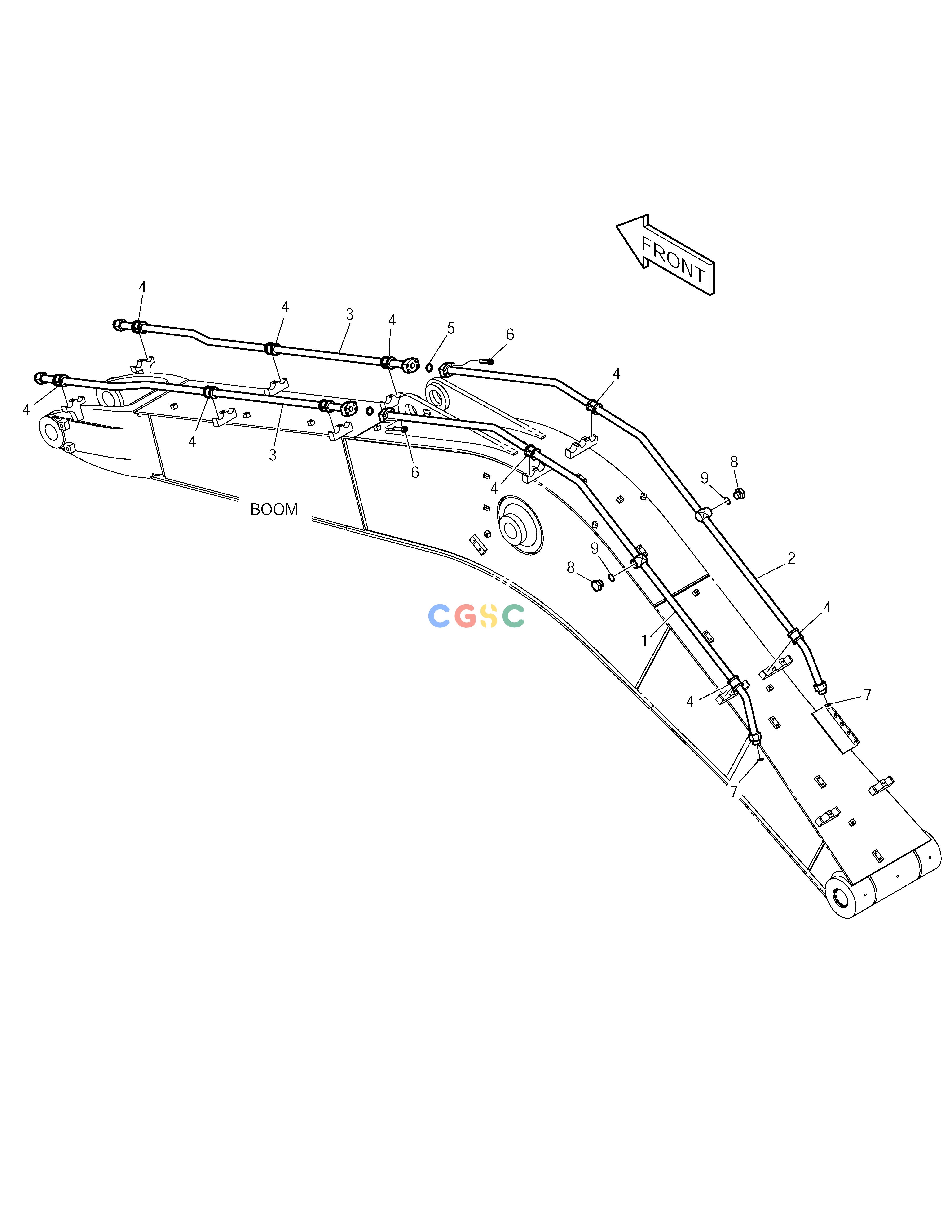

| -. | K1018951A | [-] | BOOM PIPING-ONE & TWO WAY | |
| 1. | K1026887 | [1] | PIPE | |
| 2. | K1026889 | [1] | PIPE | |
| 3. | K1004330 | [2] | PIPE | |
| 4. | K1000294A | [10] | RUBBER | |
| 5. | 2180-1026D2 | [2] | O-RING | |
| 6. | S2212566 | [8] | BOLT | |
| 7. | S8030121 | [2] | O-RING | |
| 8. | 2181-1950D15 | [2] | PLUG | |
| 9. | S8000231 | [2] | O-RING |
